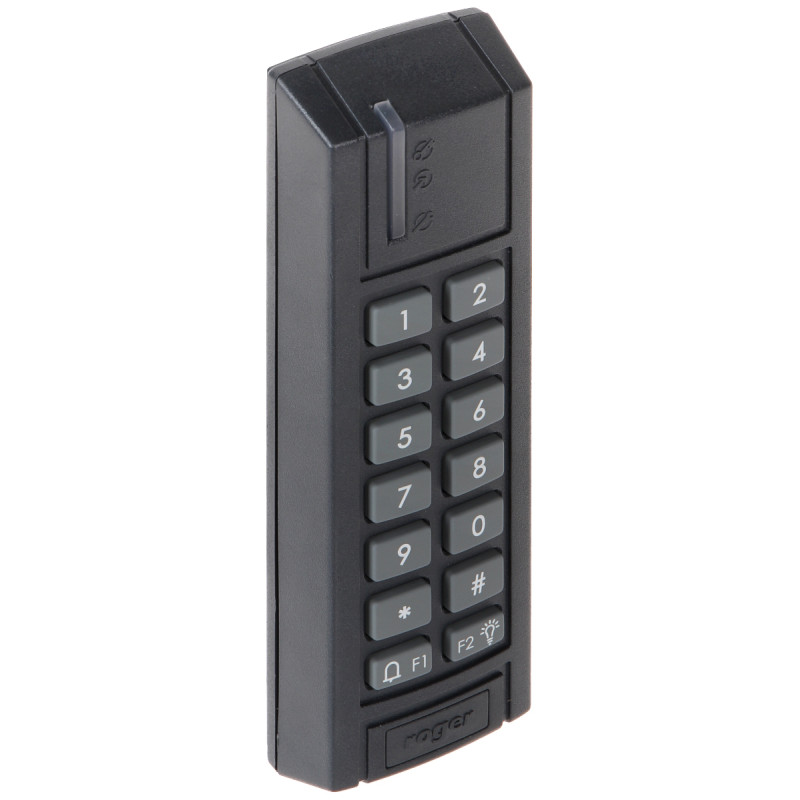

RFID Unique 125kHz Proximity Reader with Keypad and Doorbell Button RS-485 IP65 ROGER MCT12E-IO
zł492.00
Tax included
MCT12E-IO is a professional proximity reader designed by the renowned company Roger, dedicated to operating within the modern RACS 5 access control system. The device is characterized by high-quality craftsmanship and versatility, combining the functions of a Unique 125 kHz standard card reader and a numeric keypad. Thanks to its robust IP65-rated housing, the reader is perfectly suited for outdoor conditions, being resistant to adverse weather factors such as rain or dust.
The main advantage of the device is the integrated RS-485 communication interface, which ensures stable and secure data exchange with the access controller. Additionally, this model is equipped with a doorbell button, which significantly increases its functionality in intercom and office systems. Users will also appreciate the built-in input/output lines, including a relay output and two open-collector transistor outputs, allowing for direct control of actuators such as electric strikes or sirens.
System security is enhanced by advanced tamper protection, which detects both the opening of the housing and attempts to detach the device from the wall. Clear LED signaling and acoustic signals inform the user about the device's operating status and access authorization. MCT12E-IO is an ideal solution for companies and institutions seeking a reliable access control system component that combines aesthetic design with high technical parameters. The device is easy to install and configure, making it the number one choice for security system installers.
RFID Unique 125kHz Proximity Reader with Keypad and Doorbell Button RS-485 IP65
Model: ROGER MCT12E-IO
EAN: 6931240078440 SKU: 931078441
- Compatibility with RACS 5 access control system
- Support for Unique 125 kHz standard cards and key fobs
- Built-in backlit numeric keypad
- Integrated doorbell button
- RS-485 communication interface
- IP65 ingress protection rating for outdoor installation
- Advanced tamper protection
- Built-in input/output lines (3 inputs, 1 relay, 2 OC)
- LED optical and acoustic signaling
- Wide operating temperature range from -25°C to +60°C
Description
MCT12E-IO is a professional proximity reader designed by the renowned company Roger, dedicated to operating within the modern RACS 5 access control system. The device is characterized by high-quality craftsmanship and versatility, combining the functions of a Unique 125 kHz standard card reader and a numeric keypad. Thanks to its robust IP65-rated housing, the reader is perfectly suited for outdoor conditions, being resistant to adverse weather factors such as rain or dust.
The main advantage of the device is the integrated RS-485 communication interface, which ensures stable and secure data exchange with the access controller. Additionally, this model is equipped with a doorbell button, which significantly increases its functionality in intercom and office systems. Users will also appreciate the built-in input/output lines, including a relay output and two open-collector transistor outputs, allowing for direct control of actuators such as electric strikes or sirens.
System security is enhanced by advanced tamper protection, which detects both the opening of the housing and attempts to detach the device from the wall. Clear LED signaling and acoustic signals inform the user about the device's operating status and access authorization. MCT12E-IO is an ideal solution for companies and institutions seeking a reliable access control system component that combines aesthetic design with high technical parameters. The device is easy to install and configure, making it the number one choice for security system installers.
Specification
RFID Standard
Unique EM 125kHz
Compatibility
RACS 5 System (Roger)
Reading range
Up to 7 cm
Keypad
Built-in, silicone with backlight
Doorbell button
Yes, dedicated contact
Communication
RS-485 bus
Inputs
3 programmable input lines
Relay output
1x REL1 - NO/NC, 30 V AC/DC / 1.5 A
Transistor outputs
2x IO1, IO2 - Open collector type (OC), max. 15 V DC / 1 A
Tamper protection
Tamper - detection of housing opening and detachment from the surface
Signaling
Multicolor LED and acoustic signals (buzzer)
Power supply
10 - 15 V DC
Current consumption
Average consumption approx. 50 mA
Operating conditions
Temperature: -25 °C ... 60 °C, Humidity: 10 ... 95 % (non-condensing)
Ingress protection rating
IP65
Software and Firmware
The device works with the RACS 5 management system, which enables full configuration of passage logic, user database management, and real-time event monitoring. Dedicated utility software allows for precise tuning of reader parameters, such as keypad sensitivity or LED signaling modes. Thanks to the availability of firmware updates (ZIP file), the user can easily upload the latest patches and functionalities via the RS-485 interface, ensuring compliance with the latest security standards and expanding the device's integration capabilities with building automation.
Warranty
3 years
Contents
1x Proximity reader
1x Mounting accessories kit
1x User manual
Dimensions, Weight
Product dimensions: 23 x 46 x 152 mm (D x W x H)
Package dimensions: 50 x 105 x 230 mm (D x W x H)
Product weight: 170 g
Weight with packaging: 266 g
