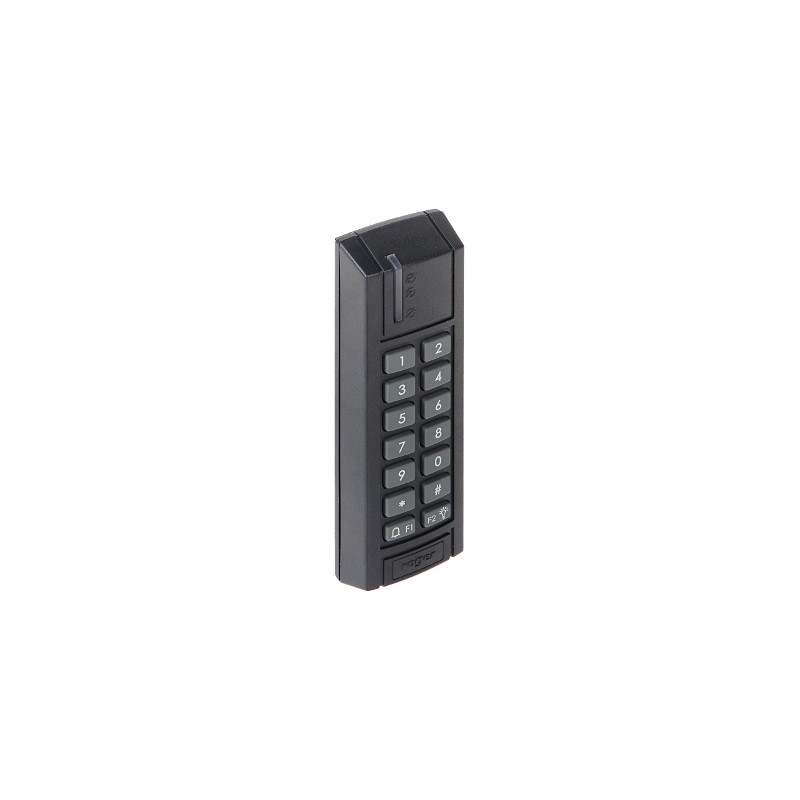

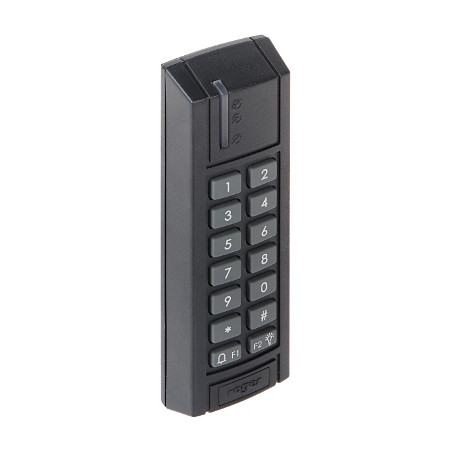

RFID Unique 125kHz Proximity Reader with Keypad and Doorbell Button IP67 RS-485 RACS 5 Outdoor ROGER MCT12E
zł409.71
Tax included
The Roger MCT12E is an advanced outdoor proximity reader designed for operation within the RACS 5 access control system. The device is characterized by high-quality craftsmanship and reliability, making it an ideal solution for demanding security installations. The reader supports the Unique 125 kHz card standard, offering a read range of up to 7 cm, which ensures daily user convenience.
One of the key advantages of the MCT12E model is the integrated numeric keypad, which enables two-factor user authentication (card + PIN), significantly increasing the facility's security level. Additionally, the device is equipped with a doorbell button, allowing it to be used as part of a call or intercom system. The robust IP67-rated housing guarantees full resistance to harsh weather conditions, including rain, dust, and extreme temperatures from -25°C to +60°C.
The reader communicates with the access controller via the RS-485 bus, allowing for stable data transmission over long distances. The physical security of the device is supported by a built-in tamper output, which detects both the opening of the housing and attempts to detach the reader from the mounting surface. Its aesthetic design and compact dimensions ensure that the MCT12E blends perfectly with modern office, industrial, and residential architecture. By choosing a Roger brand product, you gain the assurance of long-term, trouble-free operation and technical support from a renowned manufacturer.
RFID Unique 125kHz Proximity Reader with Keypad and Doorbell Button IP67 RS-485 RACS 5 Outdoor
Model: ROGER MCT12E
EAN: 6931240094433 SKU: 931094430
- Support for Unique 125 kHz standard
- Built-in numeric keypad
- Dedicated doorbell button
- RS-485 communication interface
- Compatibility with RACS 5 system (Roger)
- IP67 ingress protection rating (outdoor operation)
- Tamper protection
- LED and acoustic signaling
Description
The Roger MCT12E is an advanced outdoor proximity reader designed for operation within the RACS 5 access control system. The device is characterized by high-quality craftsmanship and reliability, making it an ideal solution for demanding security installations. The reader supports the Unique 125 kHz card standard, offering a read range of up to 7 cm, which ensures daily user convenience.
One of the key advantages of the MCT12E model is the integrated numeric keypad, which enables two-factor user authentication (card + PIN), significantly increasing the facility's security level. Additionally, the device is equipped with a doorbell button, allowing it to be used as part of a call or intercom system. The robust IP67-rated housing guarantees full resistance to harsh weather conditions, including rain, dust, and extreme temperatures from -25°C to +60°C.
The reader communicates with the access controller via the RS-485 bus, allowing for stable data transmission over long distances. The physical security of the device is supported by a built-in tamper output, which detects both the opening of the housing and attempts to detach the reader from the mounting surface. Its aesthetic design and compact dimensions ensure that the MCT12E blends perfectly with modern office, industrial, and residential architecture. By choosing a Roger brand product, you gain the assurance of long-term, trouble-free operation and technical support from a renowned manufacturer.
Specification
Standards and Frequencies
Support for cards and key fobs in the Unique EM 125kHz standard; carrier frequency 125 kHz.
Communication and Interfaces
RS-485 communication bus; RACS protocol (Roger) dedicated to the RACS 5 system.
Authorization Functions
Proximity card reading; PIN code entry; Ability to combine methods (Card + PIN).
Reading Parameters
Maximum card read range is up to 7 cm (depending on the quality and type of transponder used).
Keypad
Built-in silicone keypad; 12 keys; backlight for easy operation at night.
Doorbell Button
Integrated doorbell button; ability to trigger a signal in the host system.
Tamper Protection
Tamper output; detection of housing opening and detachment of the device from the surface.
Signaling and Notifications
Three-color LED indicators for passage status; built-in speaker (buzzer) for audible confirmations.
Power Parameters
Supply voltage: 10 - 15 V DC; Average current consumption: approx. 50 mA.
Environmental Conditions
Operating temperature: from -25 °C to +60 °C; Relative humidity: 10% - 95% (non-condensing).
Ingress Protection Rating
IP67 - full protection against dust and effects of short-term immersion in water; outdoor operation.
System Compatibility
Full compatibility with the Roger RACS 5 access control system; no autonomous operation.
Construction and Mounting
Plastic housing; surface mounting; dimensions 152 x 46 x 23 mm.
Management Software
The RACS 5 system is a comprehensive environment for managing access control and building automation. The software allows for full configuration of MCT series readers, defining user permissions, creating time schedules, and monitoring events in real-time. Thanks to the intuitive interface, administrators can easily manage even very extensive systems covering hundreds of passages. The system supports advanced logic functions, integration with alarm systems, and CCTV, allowing for the creation of a cohesive security ecosystem in the facility.
Contents
1x MCT12E Proximity Reader
1x Set of mounting screws
1x User and installation manual
Dimensions, Weight
Product dimensions: 23 x 46 x 152 mm (D x W x H)
Packaging dimensions: 50 x 105 x 230 mm (D x W x H)
Product weight: 150 g
Weight with packaging: 250 g
