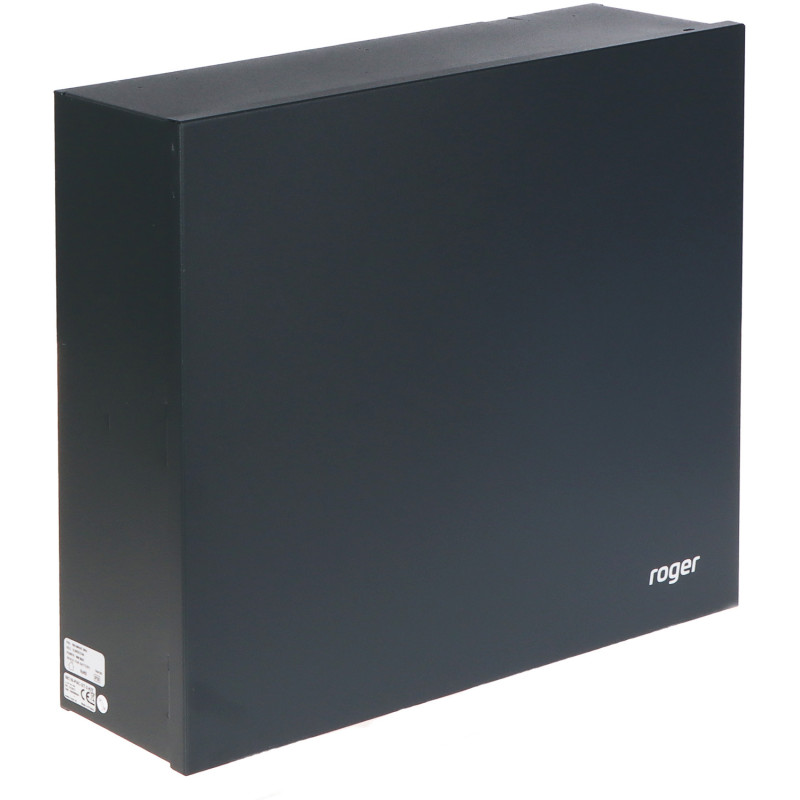

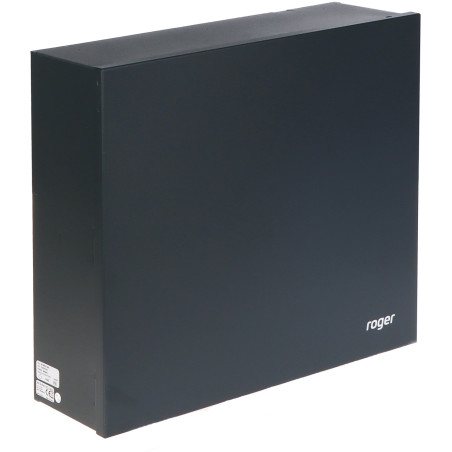

RACS 5 v2 Access Control Kit 2 Passages Metal Housing Power Supply Ethernet RS-485 RCP MSSQL VISO ST System ROGER MC16-PAC-ST-2-
zł2,970.45
Tax included
The MC16-PAC-ST-2-KIT access control kit is a professional solution from the Roger brand, designed for comprehensive management of two passages in the advanced RACS 5 v2 system. It is a complete starter package that significantly facilitates the installation and configuration of security systems in offices, warehouses, and public facilities. The kit includes a high-class network access controller, a dedicated MCX2D input/output expander, and a robust metal housing equipped with a buffer power supply, ensuring continuous operation even in the event of a mains power failure.
The main advantage of the system is its immense scalability and flexibility. The controller allows for the support of up to 8 readers, enabling full, bidirectional control of two access points. Thanks to support for various identifiers, such as proximity cards, PIN codes, or biometrics (fingerprints), administrators can precisely tailor the security level to the facility's requirements. The system also features a powerful event buffer capable of storing up to 8 million records, which is crucial for audit purposes and security analysis.
The use of VISO ST software opens up a range of advanced features for the user, such as real-time passage monitoring with video preview, integration with MSSQL databases, and the generation of detailed Time and Attendance (RCP) reports. The metal housing not only protects the electronics from mechanical damage but also provides space for a 12V/20Ah emergency battery, making the system extremely reliable. By choosing a Roger solution, you are investing in proven technology that combines modernity, security, and intuitive operation.
RACS 5 v2 Access Control Kit 2 Passages Metal Housing Power Supply Ethernet RS-485 RCP MSSQL VISO ST System
Model: ROGER MC16-PAC-ST-2-KIT
EAN: 6931240011348 SKU: 931011340
- Support for 2 bidirectional passages in the RACS 5 v2 system
- Metal housing with built-in buffer power supply
- MCX2D input/output expander included
- Support for up to 8 readers (MCT or Wiegand)
- Buffer memory for up to 8,000,000 events
- Integration with VISO ST software (MSSQL database)
- Time and Attendance (RCP) functions
- Passage monitoring with video preview
Description
The MC16-PAC-ST-2-KIT access control kit is a professional solution from the Roger brand, designed for comprehensive management of two passages in the advanced RACS 5 v2 system. It is a complete starter package that significantly facilitates the installation and configuration of security systems in offices, warehouses, and public facilities. The kit includes a high-class network access controller, a dedicated MCX2D input/output expander, and a robust metal housing equipped with a buffer power supply, ensuring continuous operation even in the event of a mains power failure.
The main advantage of the system is its immense scalability and flexibility. The controller allows for the support of up to 8 readers, enabling full, bidirectional control of two access points. Thanks to support for various identifiers, such as proximity cards, PIN codes, or biometrics (fingerprints), administrators can precisely tailor the security level to the facility's requirements. The system also features a powerful event buffer capable of storing up to 8 million records, which is crucial for audit purposes and security analysis.
The use of VISO ST software opens up a range of advanced features for the user, such as real-time passage monitoring with video preview, integration with MSSQL databases, and the generation of detailed Time and Attendance (RCP) reports. The metal housing not only protects the electronics from mechanical damage but also provides space for a 12V/20Ah emergency battery, making the system extremely reliable. By choosing a Roger solution, you are investing in proven technology that combines modernity, security, and intuitive operation.
Specification
System standard
RACS 5 v2 (Roger) - modern and scalable security system
Passage support
2 bidirectional passages with full entry and exit control
Reader support
Up to 8 MCT series readers (RS-485) or readers with Wiegand interface
Number of users
Unlimited, depending on the VISO ST software license held
Identification methods
Proximity card, PIN, Biometrics (fingerprint), and other media
Event memory
Local event buffer with a capacity of up to 8,000,000 records
System logic
Support for 4 independent access zones and 4 alarm zones
Communication interfaces
Ethernet RJ-45 for network communication and RS-485 bus
VISO ST software
Advanced system management based on an MSSQL database. The VISO ST program enables multi-station operation and support for geographically distributed systems. Key features include real-time passage monitoring with video integration, advanced event reporting for the Time and Attendance (RCP) module, and full user permission configuration. The program allows for the support of up to 128 passages in the ST version, offering an intuitive graphical interface for system status visualization and rapid incident response.
Power supply
17-22V AC / 10-15V DC / 22-26V DC
Emergency backup
Compatibility with 12V / 20Ah lead-acid battery
Housing construction
Robust metal housing with tamper protection
Environmental conditions
Operating temperature 5°C ... 40°C, humidity 10% ... 95% (non-condensing)
Additional functions
Operation in distributed systems, video monitoring, RCP reporting
Contents
1x MC16 network controller
1x MCX2D input/output expander
1x Metal housing with buffer power supply
1x Set of mounting accessories
1x User manual
Dimensions, Weight
Product dimensions: 123 x 405 x 365 mm (D x W x H)
Packaging dimensions: 135 x 410 x 380 mm (D x W x H)
Product weight: 4250 g
Weight with packaging: 4592 g
