- New

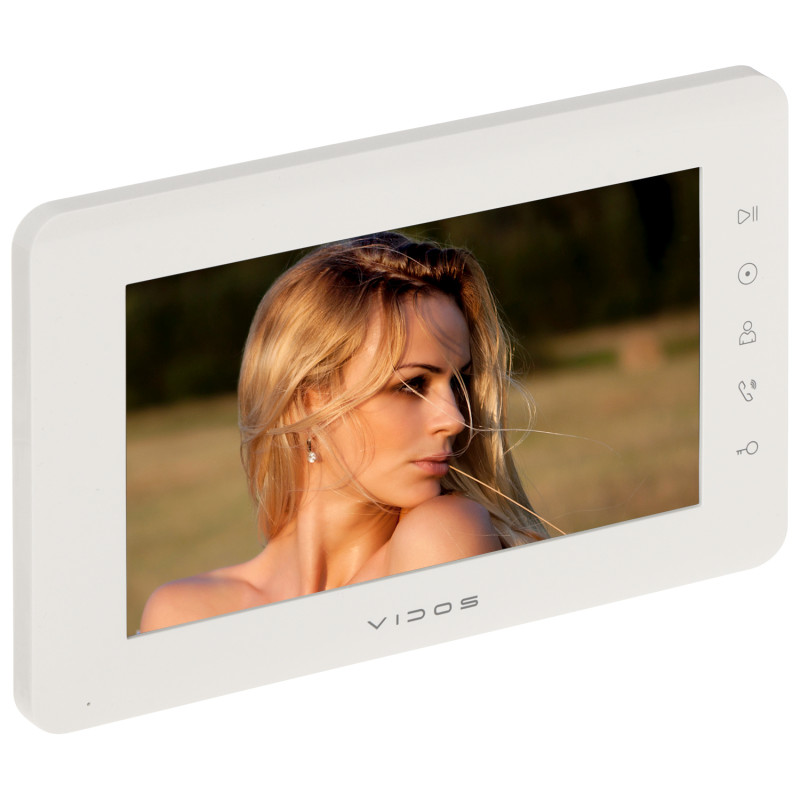

VIDOS X 7 inch LCD Analog Video Intercom Monitor White Hands-free VIDOS M12W
zł541.20
Tax included
The M12W monitor is a modern and elegant device that serves as the heart of the VIDOS X analog video intercom system. Designed for the most demanding users, it combines advanced technology with intuitive operation. Equipped with a large, 7-inch TFT LCD screen with a resolution of 800x480 pixels, it provides a clear and detailed view of visitors to your property.
One of the greatest advantages of this model is its versatility – it allows for the connection of not only two door stations but also two additional CCTV monitoring cameras operating in AHD, CVI, TVI, or CVBS standards with a resolution of up to 1080p. As a result, the monitor acts as a simple home monitoring center. The device features an ultra-slim housing and no handset, making it a perfect fit for modern interiors. The touch control buttons are not only aesthetic but also very durable and easy to clean.
The VIDOS X system offers an intercom function, which allows for internal communication between monitors in the same building, as well as call forwarding. The user can choose from 6 different ringtones, with the option to assign a separate sound for each input. The set includes a professional DIN rail power supply, which significantly facilitates aesthetic installation in an electrical distribution board. The solid construction and 3-year manufacturer's warranty confirm the high premium-class quality, ensuring trouble-free operation for many years.
VIDOS X 7 inch LCD Analog Video Intercom Monitor White Hands-free
Model: VIDOS M12W
EAN: 6931240072974 SKU: 931072977
- Compatibility with VIDOS X analog system
- 7-inch high-contrast TFT LCD screen
- Support for 2 door stations and 2 CCTV cameras (AHD/CVI/TVI/CVBS)
- Touch control buttons for a modern look
- Intercom and call forwarding function
- Expandable up to 5 additional monitors
- Control of electric strike and automatic gate
- 6 ringtones with individual assignment to inputs
- DIN rail power supply TS-35 included
- Ultra-slim housing with a thickness of only 18mm
Description
The M12W monitor is a modern and elegant device that serves as the heart of the VIDOS X analog video intercom system. Designed for the most demanding users, it combines advanced technology with intuitive operation. Equipped with a large, 7-inch TFT LCD screen with a resolution of 800x480 pixels, it provides a clear and detailed view of visitors to your property.
One of the greatest advantages of this model is its versatility – it allows for the connection of not only two door stations but also two additional CCTV monitoring cameras operating in AHD, CVI, TVI, or CVBS standards with a resolution of up to 1080p. As a result, the monitor acts as a simple home monitoring center. The device features an ultra-slim housing and no handset, making it a perfect fit for modern interiors. The touch control buttons are not only aesthetic but also very durable and easy to clean.
The VIDOS X system offers an intercom function, which allows for internal communication between monitors in the same building, as well as call forwarding. The user can choose from 6 different ringtones, with the option to assign a separate sound for each input. The set includes a professional DIN rail power supply, which significantly facilitates aesthetic installation in an electrical distribution board. The solid construction and 3-year manufacturer's warranty confirm the high premium-class quality, ensuring trouble-free operation for many years.
Specification
System type
Analog VIDOS X (Premium Class)
Screen
7 inch TFT LCD, color, panoramic
Resolution
800 x 480 pixels
Compatibility
Analog video intercoms from the VIDOS X series
Input support
2 door stations + 2 CCTV cameras (AHD, CVI, TVI, CVBS)
Camera resolution
1080p / 720p / CVBS (automatic detection)
Control functions
Touch buttons, electric strike and automatic gate control
Audio
Hands-free system, two-way communication, 6 ringtones
Intercom
Addressable internal intercom, call forwarding
Power supply
14.5V DC (1A DIN rail power supply included)
Power consumption
6.38 W (during operation) / 1.74 W (standby mode)
Operating conditions
Temperature: -10 °C ... 40 °C
Menu languages
Polish, English
Software
The M12W monitor firmware offers advanced communication management within the VIDOS X system. The interface allows for precise, smooth adjustment of display parameters, such as brightness, contrast, and saturation, which allows the camera image to be adapted to the lighting conditions outside. The software supports intelligent switching of video signals from various sources (door stations and CCTV cameras) and manages the intercom function, enabling internal calls in a multi-monitor system. The user can also configure the opening times of the electric strike and automatic gate directly from the device menu. The system automatically recognizes AHD/CVI/TVI/CVBS video standards, which eliminates the need for manual camera configuration.
Contents
1x M12W Monitor
1x DIN rail power supply TS-35
1x Mounting bracket
1x Set of plugs and mounting screws
1x User manual
Dimensions, Weight
Product dimensions: 18 x 205 x 128 mm (D x W x H)
Package dimensions: 100 x 265 x 180 mm (D x W x H)
Product weight: 280 g
Weight with packaging: 628 g
