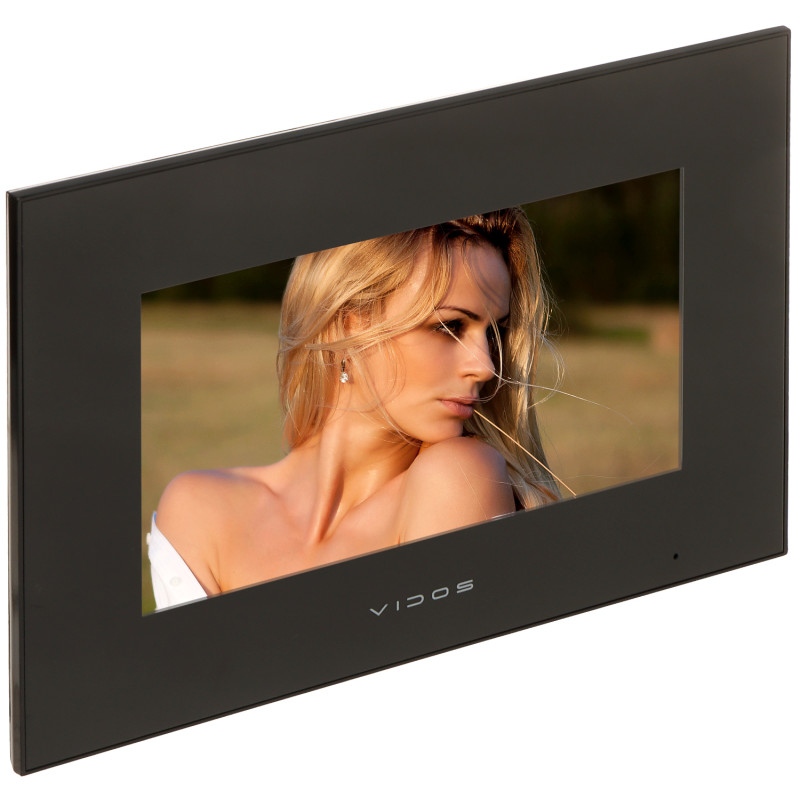

7-inch Video Intercom Monitor Touch Wi-Fi AHD 1080p Black Premium Motion Detection VIDOS M10B-X
zł1,045.52
Tax included
The internal panel is the heart of a modern video intercom system, and this model, designed for the premium analog system, meets the highest standards of functionality and aesthetics. The device is designed for users who value comfort, security, and modern design. Equipped with a 7-inch, high-resolution capacitive touch screen, it provides a crystal-clear image and intuitive operation of all system functions.
The main advantage of this model is the built-in Wi-Fi module, which revolutionizes the way you interact with guests. It allows for call forwarding directly to a smartphone with a dedicated mobile app installed. This means that even when you are away from home, at work, or on vacation, you can check who is at your door, talk to them, and even open the gate or door. This solution significantly increases the level of security and convenience for residents.
The panel is characterized by extraordinary versatility in terms of expansion. It supports not only two door stations but also two additional CCTV cameras operating in AHD, CVI, TVI, or CVBS technologies with resolutions up to 1080p. This allows for the creation of a comprehensive monitoring system for the entrance and the property surroundings. Additionally, the system supports an intercom function, enabling communication between up to six monitors within a single premises.
The device offers advanced multimedia features, such as motion detection with the ability to automatically save photos or videos on a microSD card (up to 128 GB). Guests can also leave voice messages in the absence of the hosts. Personalization is possible thanks to 16 available ringtones, with the option to assign different sounds to different inputs. The whole unit is enclosed in an ultra-slim, elegant black housing that blends perfectly with modern interiors. The set includes a professional DIN rail power supply, which facilitates aesthetic installation in the distribution board.
7-inch Video Intercom Monitor Touch Wi-Fi AHD 1080p Black Premium Motion Detection
Model: VIDOS M10B-X
EAN: 6931240057698 SKU: 931057697
- Compatibility with the premium analog VIDOS X system
- 7-inch high-sensitivity capacitive touch screen
- Built-in Wi-Fi module for mobile app support
- Support for 2 door stations and 2 CCTV cameras (AHD/CVI/TVI/CVBS)
- Support for high-resolution 1080p / 720p image quality
- Motion detection function with photo and video recording
- Option for guests to leave voice messages
- Intercom system supporting up to 6 monitors in the system
- Control of electric strike and automatic gate
- microSD card slot with capacity up to 128 GB
- 16 ringtones with individual assignment to inputs
- Ultra-slim hands-free housing
- Smooth adjustment of brightness, ringtone volume, and conversation volume
- DIN rail power supply TS-35 included in the set
- Menu in Polish and English
Description
The internal panel is the heart of a modern video intercom system, and this model, designed for the premium analog system, meets the highest standards of functionality and aesthetics. The device is designed for users who value comfort, security, and modern design. Equipped with a 7-inch, high-resolution capacitive touch screen, it provides a crystal-clear image and intuitive operation of all system functions.
The main advantage of this model is the built-in Wi-Fi module, which revolutionizes the way you interact with guests. It allows for call forwarding directly to a smartphone with a dedicated mobile app installed. This means that even when you are away from home, at work, or on vacation, you can check who is at your door, talk to them, and even open the gate or door. This solution significantly increases the level of security and convenience for residents.
The panel is characterized by extraordinary versatility in terms of expansion. It supports not only two door stations but also two additional CCTV cameras operating in AHD, CVI, TVI, or CVBS technologies with resolutions up to 1080p. This allows for the creation of a comprehensive monitoring system for the entrance and the property surroundings. Additionally, the system supports an intercom function, enabling communication between up to six monitors within a single premises.
The device offers advanced multimedia features, such as motion detection with the ability to automatically save photos or videos on a microSD card (up to 128 GB). Guests can also leave voice messages in the absence of the hosts. Personalization is possible thanks to 16 available ringtones, with the option to assign different sounds to different inputs. The whole unit is enclosed in an ultra-slim, elegant black housing that blends perfectly with modern interiors. The set includes a professional DIN rail power supply, which facilitates aesthetic installation in the distribution board.
Specification
System and Compatibility
Standard: Analog VIDOS X system; Series: Premium Class; Compatibility: VIDOS X series analog video intercoms
Display
Type: 7-inch capacitive touch screen; Resolution: 1024 x 600 px; Interface: Graphical, touch
Video Support
Signal standards: AHD, CVI, TVI, CVBS; Resolutions: 1080p, 720p, CVBS; Inputs: Support for 2 door stations and 2 additional CCTV cameras
Network and Wi-Fi Functions
Wi-Fi module: Built-in; Call forwarding: Yes, to mobile app (audio/video); Remote access: Live view, opening the strike and gate via phone
Software and Application
The dedicated Vidos X mobile app allows for full management of the video intercom system from a smartphone or tablet. The user receives real-time call notifications, can conduct a two-way audio-video conversation with a guest, and remotely control access (opening the gate and door). The app allows for viewing images from all connected cameras and reviewing saved events. The interface is fully localized in Polish, ensuring intuitive operation even for less advanced users.
Registration and Memory
Internal memory: Built-in flash memory; Card reader: Support for microSD cards up to 128 GB; Recording modes: Automatic or manual (photos/videos); Motion detection: Yes, with recording function
Audio Functions
Type: Hands-free; Communication: Two-way; Ringtones: 16 ringtones to choose from; Personalization: Separate ringtone for each input and intercom; Voice messages: Ability to leave messages for guests
Control and Interfaces
Outputs: Control of electric strike and automatic gate; Intercom: Yes, support for up to 5 additional monitors (total of 6 in the system); Adjustment: Image brightness, ringtone volume, conversation volume
Power Supply
Voltage: 14.5 V DC; Current consumption: Maximum 1 A; Power consumption: ≤ 7.2 W; Power supply: Included, DIN rail TS-35 mounting
Construction and Appearance
Color: Black; Housing type: Ultra-slim; Mounting: Surface-mounted; Material: High-quality plastic
Operating Conditions
Operating temperature: -10 °C ... 40 °C; Humidity: Standard for indoor use
Physical Parameters
Dimensions: 221 x 153 x 19 mm; Net weight: 0.47 kg; Gross weight: 0.90 kg
Languages and Warranty
Supported languages: Polish, English; Warranty: 3 years
Additional Functions
Plug & Play: Yes; Call forwarding between monitors: Yes; Digital frame function: Not applicable
Contents
1x M10B-X internal panel
1x DIN rail power supply
1x Mounting accessories
1x User manual
Dimensions, Weight
Product dimensions: 19 x 221 x 153 mm (D x W x H)
Packaging dimensions: 100 x 280 x 200 mm (D x W x H)
Product weight: 470 g
Weight with packaging: 900 g
