- New
External IR infrared illuminator 45m 80 degrees IP66 12V DC 24V AC twilight sensor IR LAB LIR-CA32
zł295.20
Tax included
The LIR-CA32 external infrared reflector is a professional device designed to significantly increase the viewing range of industrial cameras in conditions of complete lack of visible light. Thanks to the use of modern IR diodes with a wavelength of 850 nm, the illuminator emits light invisible to the human eye, but perfectly recorded by CCTV camera sensors. The main advantage of the LIR-CA32 model is its impressive range of up to 45 meters with a wide beam angle of 80 degrees. This characteristic makes the device ideal for monitoring large areas such as parking lots, construction sites, gardens, or building facades.
The reflector is equipped with an intelligent twilight switch that automatically activates the infrared diodes after dusk and turns them off during the day. This solution not only ensures maintenance-free operation of the system but also significantly contributes to energy savings and extends the lifespan of the diodes. The solid housing made of powder-coated aluminum guarantees high resistance to mechanical damage and harsh weather conditions. The IP66 ingress protection rating confirms full protection against dust and strong water jets, allowing for trouble-free operation outside buildings in a wide temperature range from -30°C to 40°C.
The device is characterized by flexibility in terms of power supply, accepting both 12V DC and 24V AC voltage. This is particularly important in extensive monitoring systems where different power standards are used. The aesthetic appearance and compact dimensions make the reflector discreetly blend with the building architecture, ensuring safety and visibility where traditional lighting fails. By choosing the LIR-CA32, you are investing in reliability and the highest quality of night illumination for your monitoring system.

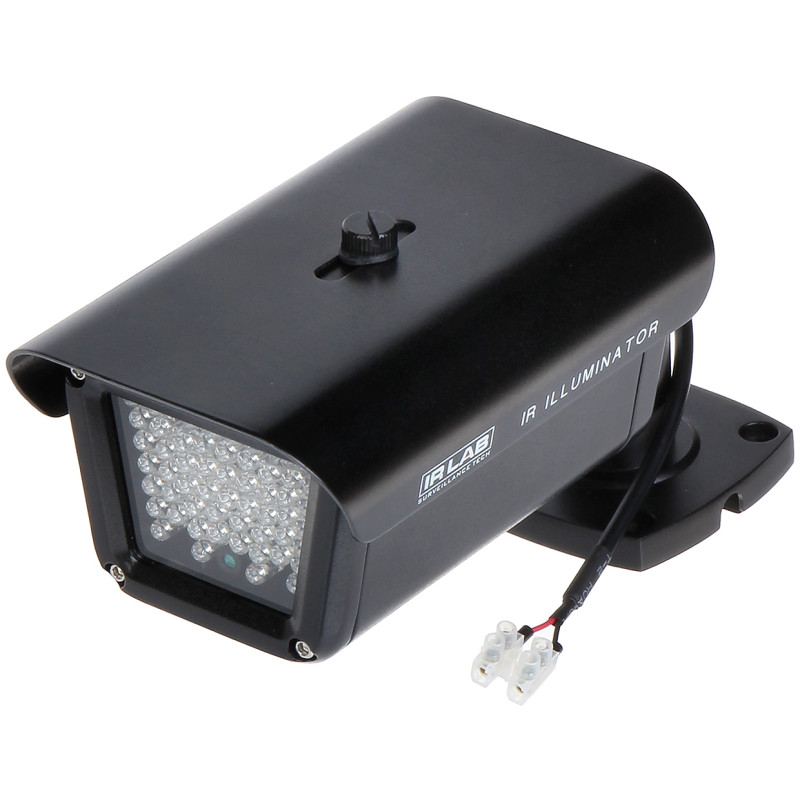

External IR infrared illuminator 45m 80 degrees IP66 12V DC 24V AC twilight sensor
Model: IR LAB LIR-CA32
EAN: 6931240092101 SKU: 931092107
- Long illumination range up to 45 meters
- Wide beam angle of 80 degrees
- Built-in automatic twilight switch
- Solid powder-coated aluminum housing
- High IP66 ingress protection rating for outdoor use
- Supports 12V DC and 24V AC power supply
- 850 nm wavelength ensuring optimal compatibility with cameras
- Wide operating temperature range from -30°C to +40°C
Description
The LIR-CA32 external infrared reflector is a professional device designed to significantly increase the viewing range of industrial cameras in conditions of complete lack of visible light. Thanks to the use of modern IR diodes with a wavelength of 850 nm, the illuminator emits light invisible to the human eye, but perfectly recorded by CCTV camera sensors. The main advantage of the LIR-CA32 model is its impressive range of up to 45 meters with a wide beam angle of 80 degrees. This characteristic makes the device ideal for monitoring large areas such as parking lots, construction sites, gardens, or building facades.
The reflector is equipped with an intelligent twilight switch that automatically activates the infrared diodes after dusk and turns them off during the day. This solution not only ensures maintenance-free operation of the system but also significantly contributes to energy savings and extends the lifespan of the diodes. The solid housing made of powder-coated aluminum guarantees high resistance to mechanical damage and harsh weather conditions. The IP66 ingress protection rating confirms full protection against dust and strong water jets, allowing for trouble-free operation outside buildings in a wide temperature range from -30°C to 40°C.
The device is characterized by flexibility in terms of power supply, accepting both 12V DC and 24V AC voltage. This is particularly important in extensive monitoring systems where different power standards are used. The aesthetic appearance and compact dimensions make the reflector discreetly blend with the building architecture, ensuring safety and visibility where traditional lighting fails. By choosing the LIR-CA32, you are investing in reliability and the highest quality of night illumination for your monitoring system.
Specification
Device type
Infrared reflector (IR illuminator)
Application
External and internal CCTV surveillance systems
Illumination range
Up to 45 meters (depending on camera sensitivity and parameters)
Beam angle
80 degrees - wide-angle area illumination
Optical wavelength
850 nm (standard infrared, slight red glow of diodes)
Twilight switch
Built-in, automatic control of illuminator operation depending on light intensity
Housing construction
High-quality aluminum, powder-coated, corrosion-resistant
Ingress protection rating
IP66 - full resistance to weather conditions, dust, and strong water jets
Power supply
12 V DC / 0.41 A or 24 V AC / 0.32 A
Operating temperature
-30 °C ... 40 °C
Housing color
Light (gray/white)
Mounting method
Integrated bracket with multi-plane adjustment
Warranty
2 years (24 months)
Software and control
Plug&Play device. Built-in light intensity sensor (photoresistor) manages the LED module operation without the need for external configuration. The electronic circuit stabilizes current consumption, ensuring constant illumination power regardless of voltage fluctuations within the permissible range. No need to install additional control applications - full automation of the scene illumination process based on ambient lighting conditions. The system automatically switches to night mode when ambient brightness drops below the sensor sensitivity threshold.
Additional features
Tempered front glass, high energy efficiency, aesthetic design
Contents
1x LIR-CA32 Infrared reflector
1x Set of mounting plugs
1x User manual
Dimensions, Weight
Product dimensions: 77 x 205 x 90 mm (D x W x H)
Package dimensions: 135 x 255 x 155 mm (D x W x H)
Product weight: 700 g
Weight with packaging: 898 g
