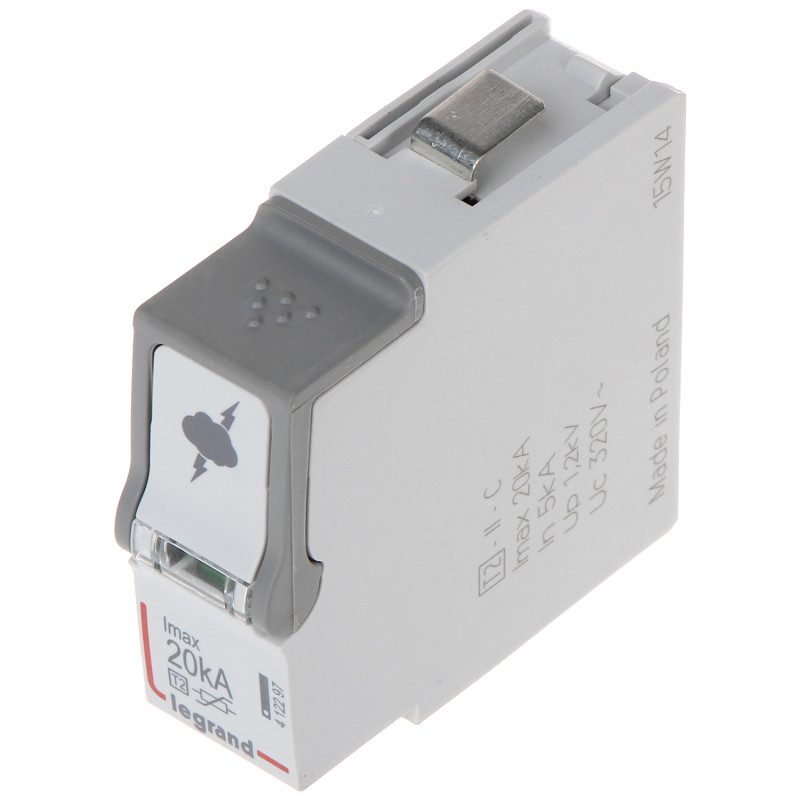

Surge Arrester Insert Type 2 Class C 20kA Varistor Protection Module Replaceable AC 230/400V LEGRAND LE-412297
zł176.87
Tax included
The LE-412297 surge arrester insert is a professional, replaceable protection module designed by the renowned company LEGRAND. It is a key component of systems protecting electrical installations against the effects of atmospheric and switching surges. Thanks to the use of varistor technology, the device effectively limits voltage to a safe level, protecting sensitive electronic devices and home appliances/AV equipment from irreversible damage.
The advantage of this model is its modular design, which allows for instant replacement of a worn-out insert without the need to remove the entire arrester base from the DIN rail. This is an extremely economical and practical solution, reducing installation downtime to a minimum. The product is characterized by high discharge current capacity (up to 20 kA) and a low protection level Up (1.2 kV), making it an ideal choice for residential and commercial buildings.
Operational safety is enhanced by a built-in status indicator. Clear optical signaling allows for immediate verification of whether the module is functional or requires replacement after a strong surge. The housing made of high-quality plastic guarantees durability and resistance to the harsh conditions found in electrical switchboards. By choosing LEGRAND equipment, you are investing in the highest quality confirmed by the manufacturer's many years of experience in the electrical installation industry.
Surge Arrester Insert Type 2 Class C 20kA Varistor Protection Module Replaceable AC 230/400V
Model: LEGRAND LE-412297
EAN: 6931240069424 SKU: 931069421
- Replaceable insert for Type 2 (Class C) surge arresters
- High discharge current capacity up to 20 kA
- Varistor technology for fast response
- Optical status indicator (operational/worn out)
- Easy plug-in installation and removal
- Compatible with 230/400V AC rated voltage
- Compact dimensions (1 module width)
- High quality manufacturing by LEGRAND
Description
The LE-412297 surge arrester insert is a professional, replaceable protection module designed by the renowned company LEGRAND. It is a key component of systems protecting electrical installations against the effects of atmospheric and switching surges. Thanks to the use of varistor technology, the device effectively limits voltage to a safe level, protecting sensitive electronic devices and home appliances/AV equipment from irreversible damage.
The advantage of this model is its modular design, which allows for instant replacement of a worn-out insert without the need to remove the entire arrester base from the DIN rail. This is an extremely economical and practical solution, reducing installation downtime to a minimum. The product is characterized by high discharge current capacity (up to 20 kA) and a low protection level Up (1.2 kV), making it an ideal choice for residential and commercial buildings.
Operational safety is enhanced by a built-in status indicator. Clear optical signaling allows for immediate verification of whether the module is functional or requires replacement after a strong surge. The housing made of high-quality plastic guarantees durability and resistance to the harsh conditions found in electrical switchboards. By choosing LEGRAND equipment, you are investing in the highest quality confirmed by the manufacturer's many years of experience in the electrical installation industry.
Specification
Product type
Replaceable insert for surge arresters (protection module)
Compatibility
Dedicated to Legrand series surge arrester bases, e.g., LE-412223
Rated voltage (Un)
230 / 400 V AC - alternating current at 50 / 60 Hz frequency
Maximum voltage (Uc)
320 V AC - maximum continuous operating voltage of the module
Protection class
Type 2 (formerly Class C) - protection against induced surges
Protection level (Up)
1.2 kV at 8/20 µs pulse (T2) - guarantees receiver safety
Nominal discharge current (In)
5 kA at 8/20 µs pulse (T2) - standard discharge capacity
Maximum discharge current (Imax)
20 kA at 8/20 µs pulse (T2) - peak module performance
Protection technology
Varistor (MOV) - semiconductor element with non-linear resistance
Status signaling
Optical indicator on the front of the device (green - operational, red - damaged)
Housing material
High-quality plastic, self-extinguishing, temperature resistant
Environmental conditions
Designed for indoor use, in standard switchboards
Dimensions and mounting
62 x 54 x 17 mm; plug-in mounting to a dedicated base
Certificates and standards
Compliance with CE declaration (PL/EN), meets strict safety standards
Contents
1x Surge arrester insert LE-412297
Dimensions, Weight
Product dimensions: 62 x 17 x 54 mm (D x W x H)
Packaging dimensions: 100 x 90 x 25 mm (D x W x H)
Product weight: 42 g
Weight with packaging: 56 g
