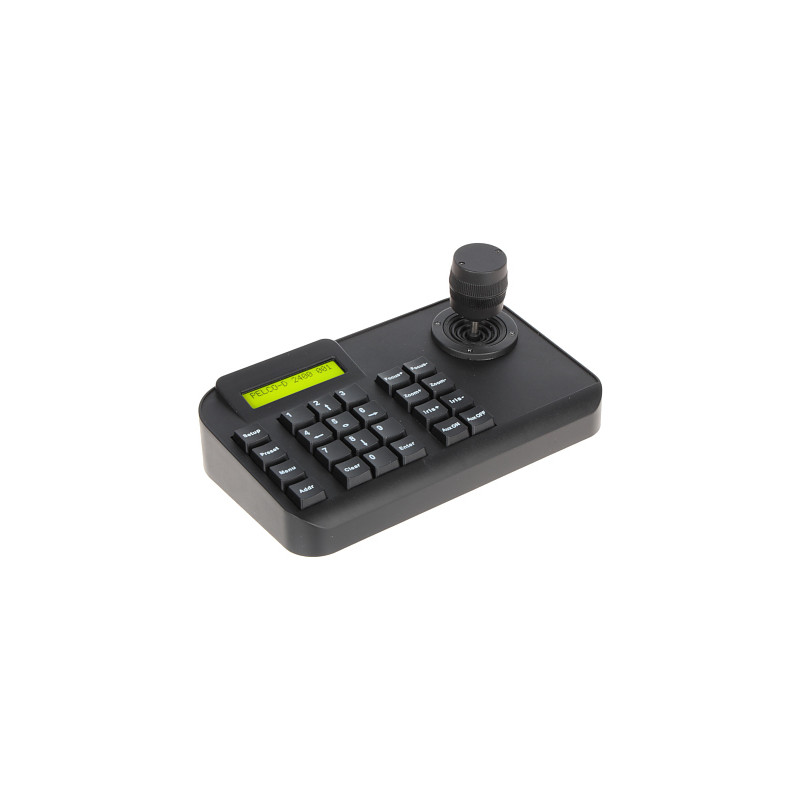

RS-485 control keyboard for PTZ Motozoom cameras 3D Joystick LCD CCTV controller Apti KT-610
zł757.68
Tax included
The professional KT-610 control keyboard is an advanced peripheral device that serves as a key component of video surveillance systems based on PTZ cameras and Motozoom devices. Thanks to the use of a modern 3D joystick, the operator gains unprecedented precision in manipulating the camera's field of view, which allows for instantaneous reaction in situations requiring special attention. The device has been designed with maximum ergonomics and intuitive operation in mind, which translates into high work efficiency in surveillance centers.
One of the greatest advantages of the KT-610 model is its versatility and compatibility with many popular communication protocols, such as Pelco-D, Pelco-P, or Samsung. This allows for the integration of the keyboard with a wide range of devices from various manufacturers without the need for additional converters. A clear 2x16 character LCD display informs about the selected camera number, active protocol, and transmission speed in real-time, which significantly facilitates the management of extensive surveillance systems.
The keyboard offers quick access to the most important functions, such as zoom control, setting and calling presets, as well as defining patrol routes and movement vectors. A solid housing with an aesthetic shape and mechanical switches guarantee a long service life of the device even with intensive use. The KT-610 is the direct successor to the highly regarded KT-609 model, introducing improvements in terms of operational stability and user interface comfort. It is an ideal solution for those looking for a reliable and precise tool for controlling professional industrial television.
RS-485 control keyboard for PTZ Motozoom cameras 3D Joystick LCD CCTV controller
Model: Apti KT-610
EAN: 6931240082140 SKU: 931082145
- Precision 3-axis joystick for smooth PTZ camera movement control
- Support for multiple communication protocols: Pelco-D, Pelco-P, SAMSUNG, YAAN, SAE
- Clear 2x16 character LCD display with backlight
- Ability to control up to 255 cameras in a single system
- Adjustable data transmission speed from 1200 to 19200 bit/s
- Quick access to zoom, presets, and patrol routes
- Administrator password access protection
- Ergonomic housing with durable mechanical buttons
- 12V DC / 2A power adapter included in the set
- Wide operating temperature range from -20°C to 55°C
Description
The professional KT-610 control keyboard is an advanced peripheral device that serves as a key component of video surveillance systems based on PTZ cameras and Motozoom devices. Thanks to the use of a modern 3D joystick, the operator gains unprecedented precision in manipulating the camera's field of view, which allows for instantaneous reaction in situations requiring special attention. The device has been designed with maximum ergonomics and intuitive operation in mind, which translates into high work efficiency in surveillance centers.
One of the greatest advantages of the KT-610 model is its versatility and compatibility with many popular communication protocols, such as Pelco-D, Pelco-P, or Samsung. This allows for the integration of the keyboard with a wide range of devices from various manufacturers without the need for additional converters. A clear 2x16 character LCD display informs about the selected camera number, active protocol, and transmission speed in real-time, which significantly facilitates the management of extensive surveillance systems.
The keyboard offers quick access to the most important functions, such as zoom control, setting and calling presets, as well as defining patrol routes and movement vectors. A solid housing with an aesthetic shape and mechanical switches guarantee a long service life of the device even with intensive use. The KT-610 is the direct successor to the highly regarded KT-609 model, introducing improvements in terms of operational stability and user interface comfort. It is an ideal solution for those looking for a reliable and precise tool for controlling professional industrial television.
Specification
Communication standard
RS-485 - a data transmission standard using a two-wire cable, ensuring a stable connection over long distances.
Supported protocols
Pelco-D, Pelco-P (communication protocols used mainly for controlling PTZ cameras), SAMSUNG, YAAN, SAE.
Transmission speed
Speed selection possible: 1200, 2400, 4800, 9600, 19200 bit/s.
Manipulator
3-axis joystick; movement speed is proportional to the degree of stick deflection; integrated zoom control directly from the joystick.
Display
Matrix LCD 2x16 characters, informing about operating parameters and device status.
Camera numbering (ID)
Support for identifiers in the range from 0 to 255.
Maximum control distance
Up to 1200 meters when using appropriate twisted-pair cabling.
PTZ functions
Control of presets, tours, movement vectors, and optical functions of Motozoom cameras.
Security
Access to system settings protected by an administrator password.
User interface
Friendly and intuitive interface; mechanical keyboard switches with high responsiveness.
Software and configuration
Built-in firmware allows for comprehensive management of communication and control parameters. The user has access to a configuration menu where they can define the protocol separately for each camera, set the baud rate, and manage access permissions. The system allows for programming advanced camera automation functions, such as scanning between points, automatic patrol routes, and returning to the Home position after a specified period of inactivity. The software interface is optimized for speed, which minimizes latency between joystick movement and camera reaction. The software also supports RS-485 connection diagnostics, facilitating the identification of installation errors.
Power supply
12 V DC / 2 A (dedicated power adapter is included).
Environmental conditions
Operating temperature: -20 °C ... 55 °C; Relative humidity: ≤ 90 % (non-condensing).
Construction
Aesthetic housing made of high-quality plastic; ergonomic shape facilitating long hours of work.
Warranty
2 years (24 months).
Contents
1x KT-610 control keyboard
1x 12V/2A power adapter
1x User manual
Dimensions, Weight
Product dimensions: 130 x 220 x 95 mm (D x W x H)
Package dimensions: 165 x 255 x 135 mm (D x W x H)
Product weight: 750 g
Weight with packaging: 1050 g
