- New

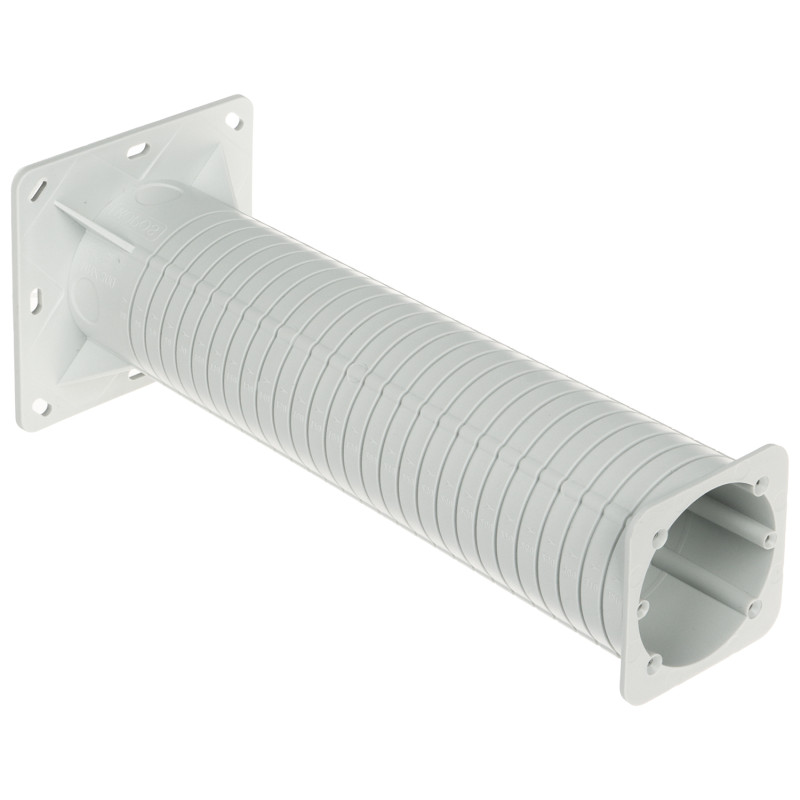

Electrical installation box for facade insulation 50-300mm thermal mounting box KOPOS KEZ-300-KB
zł181.13
Tax included
The KEZ-300-KB electrical installation box is a professional and innovative solution designed for mounting electrical equipment on building facades covered by insulation systems. Thanks to its unique telescopic design, the product allows for stable and secure installation of sockets, switches, as well as surveillance cameras or sensors in insulation layers with a thickness from 50 mm up to 300 mm. The main advantage of the box is the effective elimination of thermal bridges, which is crucial in modern energy-efficient construction, preventing energy loss and moisture condensation inside the wall structure.
Made of high-quality self-extinguishing plastic, the box ensures the highest level of fire safety, confirmed by a high flammability index of 850°C. The product is resistant to harsh weather conditions, operating reliably in a wide temperature range from -25°C to 60°C. The light gray color of the housing (RAL 7035) makes the box discreetly blend in with most modern facades and plasters.
Product advantages:
- Exceptional versatility: Possibility of perfect adjustment to the insulation thickness by simply cutting the carrier before installation.
- Solidity and stability: Robust mechanical construction ensures that mounted devices will not wobble or loosen over time.
- Complete mounting kit: The package includes dedicated wall plugs and screws, which significantly speeds up and facilitates installation work on the construction site.
- Thermal protection: The special design of the carrier with closed insulation minimizes the risk of frost points forming.
- Wide application: The box design allows for the installation of even double sockets, making it an extremely functional element of any outdoor installation.
Electrical installation box for facade insulation 50-300mm thermal mounting box
Model: KOPOS KEZ-300-KB
EAN: 6931240047330 SKU: 931047338
- Designed for insulation systems with a thickness of 50 to 300 mm
- Effective elimination of thermal bridges in the facade
- Made of high-quality self-extinguishing plastic
- High fire resistance - flammability index 850 °C
- Wide operating temperature range from -25 °C to 60 °C
- Suitable for mounting single and double accessories
- Complete mounting kit (plugs and screws) included in the package
- Aesthetic light gray color matching the facade
Description
The KEZ-300-KB electrical installation box is a professional and innovative solution designed for mounting electrical equipment on building facades covered by insulation systems. Thanks to its unique telescopic design, the product allows for stable and secure installation of sockets, switches, as well as surveillance cameras or sensors in insulation layers with a thickness from 50 mm up to 300 mm. The main advantage of the box is the effective elimination of thermal bridges, which is crucial in modern energy-efficient construction, preventing energy loss and moisture condensation inside the wall structure.
Made of high-quality self-extinguishing plastic, the box ensures the highest level of fire safety, confirmed by a high flammability index of 850°C. The product is resistant to harsh weather conditions, operating reliably in a wide temperature range from -25°C to 60°C. The light gray color of the housing (RAL 7035) makes the box discreetly blend in with most modern facades and plasters.
Product advantages:
- Exceptional versatility: Possibility of perfect adjustment to the insulation thickness by simply cutting the carrier before installation.
- Solidity and stability: Robust mechanical construction ensures that mounted devices will not wobble or loosen over time.
- Complete mounting kit: The package includes dedicated wall plugs and screws, which significantly speeds up and facilitates installation work on the construction site.
- Thermal protection: The special design of the carrier with closed insulation minimizes the risk of frost points forming.
- Wide application: The box design allows for the installation of even double sockets, making it an extremely functional element of any outdoor installation.
Specification
Product type
Specialized electrical installation box dedicated for mounting in building thermal insulation layers.
Application
Installation of electrical equipment (sockets, switches) and low-voltage devices (cameras, sensors) on insulated facades.
Insulation thickness range
Adjustable in the range from 50 mm to 300 mm. The required length is obtained by cutting the carrier before installation.
Voltage insulation
The rated insulation voltage is approximately 400 V, which allows for safe use in standard power grids.
Material
Plastic with self-extinguishing properties, characterized by high mechanical and thermal resistance.
Fire safety
The flammability index (Glow Wire Test) is 850 °C, which guarantees no flame propagation in case of an electrical failure.
Operating temperature
Product adapted for operation in extreme outdoor conditions in the range from -25 °C to +60 °C.
Color
Light gray (similar to RAL 7035), ensuring an aesthetic finish and visual neutrality on the facade.
Mounting hole spacing
Standard 60 mm spacing, fully compatible with most flush-mounted sockets and switches available on the market.
Number of segments
1-segment box, designed in a way that allows stable seating of equipment inside the carrier.
Equipment mounting
The special design of the flange and the box allows for trouble-free installation of single sockets and double sets.
Elimination of thermal bridges
The carrier design includes a closed insulation space that effectively limits heat conduction through the mounting element.
Mechanical strength
The solid construction of the carrier prevents deformation under the pressure of plaster layers and during equipment operation.
Warranty
The product is covered by a 2-year manufacturer's warranty (24 months), which confirms its high quality of workmanship.
Contents
1x Electrical installation box
1x Insulation carrier (telescopic)
1x Set of wall plugs
1x Set of mounting screws
1x Installation and operating manual
Dimensions, Weight
Product dimensions: 318 x 120 x 120 mm (Depth x Width x Height)
Package dimensions: 375 x 130 x 130 mm (Depth x Width x Height)
Product weight: 350 g
Weight with packaging: 462 g
