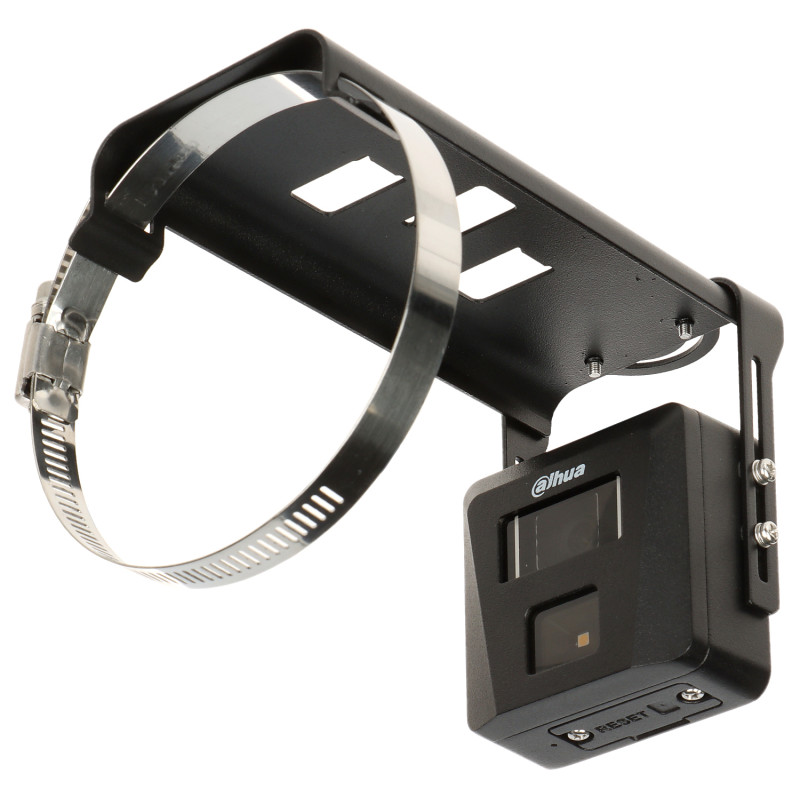

5MP IP Camera 3.6mm WDR 120dB IP67 LED Microphone Heater Polarizing Filter for Meter Reading DAHUA IPC-HUM8531M-V-LED-0
zł2,514.12
Tax included
The DAHUA IPC-HUM8531M-V-LED-0360B IP camera is a highly specialized vision device designed for precise monitoring and meter reading in challenging lighting conditions. Equipped with a 5 MP Progressive Scan CMOS sensor, it generates images with exceptional detail at a resolution of 2560 x 1920 pixels. A key advantage of this model is the use of an advanced light filtering system with polarizing filters, which effectively reduce reflections and glare on glass meter surfaces, ensuring crystal-clear data reading.
The device is adapted for operation in extreme outdoor conditions thanks to a robust, metal housing with an IP67 ingress protection rating. A unique feature is the built-in lens heater, which allows for the rapid removal of fog, frost, snow, or ice, ensuring continuous monitoring regardless of the weather. The camera also features an integrated white LED illuminator with a range of 0.5m, which illuminates the monitored object without introducing color distortion. An additional advantage is the built-in microphone with sound detection, which expands monitoring capabilities to include an acoustic layer. Thanks to PoE (Power over Ethernet) technology, installation is simplified and requires only a single network cable for data and power. This is an ideal solution for industry, energy, and intelligent building management systems.
5MP IP Camera 3.6mm WDR 120dB IP67 LED Microphone Heater Polarizing Filter for Meter Reading
Model: DAHUA IPC-HUM8531M-V-LED-0
EAN: 6931240082492 SKU: 931082498
- High 5 MP resolution (2560 x 1920) for excellent image detail
- Specialized polarizing filters to reduce reflections from glass and metal surfaces
- Built-in lens heater to prevent fogging and freezing
- White LED illuminator for operation in total darkness
- Wide Dynamic Range (WDR) 120dB for correct exposure in high-contrast scenes
- IP67 ingress protection rating for full water and dust resistance
- Built-in microphone with intelligent sound detection
- Micro SD card support up to 256GB for local storage
- Power supply 12V DC or via Ethernet (PoE 802.3af)
- Mini metal housing with adjustable mounting bracket
Description
The DAHUA IPC-HUM8531M-V-LED-0360B IP camera is a highly specialized vision device designed for precise monitoring and meter reading in challenging lighting conditions. Equipped with a 5 MP Progressive Scan CMOS sensor, it generates images with exceptional detail at a resolution of 2560 x 1920 pixels. A key advantage of this model is the use of an advanced light filtering system with polarizing filters, which effectively reduce reflections and glare on glass meter surfaces, ensuring crystal-clear data reading.
The device is adapted for operation in extreme outdoor conditions thanks to a robust, metal housing with an IP67 ingress protection rating. A unique feature is the built-in lens heater, which allows for the rapid removal of fog, frost, snow, or ice, ensuring continuous monitoring regardless of the weather. The camera also features an integrated white LED illuminator with a range of 0.5m, which illuminates the monitored object without introducing color distortion. An additional advantage is the built-in microphone with sound detection, which expands monitoring capabilities to include an acoustic layer. Thanks to PoE (Power over Ethernet) technology, installation is simplified and requires only a single network cable for data and power. This is an ideal solution for industry, energy, and intelligent building management systems.
Specification
Standard and Sensor
Standard: TCP/IP; Sensor: 1/2.7 " Progressive Scan CMOS; Matrix size: 5 Mpx
Resolution and Frame Rate
2560 x 1920 (5 Mpx), 2688 x 1520 (4 Mpx), 2560 x 1440 (3.7 Mpx), 2304 x 1296 (3 Mpx), 1920 x 1080 (1080p), 1280 x 960 (1.3 Mpx), 1280 x 720 (720p); Frame rate: 25 fps @ 5 Mpx
Optics and Viewing Angle
Lens: 3.6 mm; Viewing angle: 79 °; Light filtering system: Polarizing filters to reduce reflections
Illumination and Sensitivity
LED illuminator range (white light): 0.5 m; Sensitivity: 0.02 Lux @ F2.0 (color), 0.0002 Lux @ F2.0 (B/W), 0 Lux (LED)
Compression and Streams
Compression method: H.265+ / H.265 / H.264+ / H.264 / H.264H / H.264B / MJPEG; Dual stream support
Audio
Built-in microphone; Sound detection function
Network and Protocols
Interface: 10/100 Base-T (RJ-45); Protocols: IPv4/IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, PPPoE
Image Functions
WDR - 120 dB (Wide Dynamic Range), 3D-DNR (Digital Noise Reduction), ROI (Region of Interest), BLC/HLC (Backlight/Highlight Compensation), Mirror, WB (White Balance), AGC (Automatic Gain Control), SSA (Scene Self-adaptation)
Analysis and Detection
Motion detection, Configurable privacy zones, Scene change, Video tampering detection
Memory and Connectors
Memory card slot: Micro SD card support up to 256GB (local storage); Access ports: 80, 37777
Software and Access
WEB Server: Built-in; ONVIF: 21.12; Mobile access: DMSS application (Android/iOS); Cloud access (P2P). The DMSS (Digital Mobile Surveillance System) software is a professional Dahua mobile platform enabling remote live viewing, recording playback, and receiving push notifications about alarm events. The application supports quick configuration via QR code, management of multiple devices simultaneously, and offers a secure, encrypted connection to the camera from anywhere in the world.
Operating Conditions and Construction
Operating temperature: -40 °C ... 60 °C; Ingress protection: IP67; Housing: Mini - Metal; Color: Black; Built-in lens heater
Power Supply and Consumption
Power supply: 12 V DC / 420 mA, PoE (802.3af); Power consumption: max. 5.0 W @ 12 V, max. 5.8 W @ PoE
Dimensions and Weight
Camera dimensions: 66 x 65 x 32 mm; Bracket dimensions: 150 x 70 x 88 mm; Cable length: 50 cm; Weight: 0.21 kg (camera), 0.39 kg (with bracket)
Contents
1x IP Camera
1x Height-adjustable mounting bracket
1x Mounting accessories kit
1x User manual
Dimensions, Weight
Product dimensions: 88 x 150 x 70 mm (D x W x H)
Package dimensions: 110 x 210 x 160 mm (D x W x H)
Product weight: 390 g
Weight with packaging: 650 g
