- New

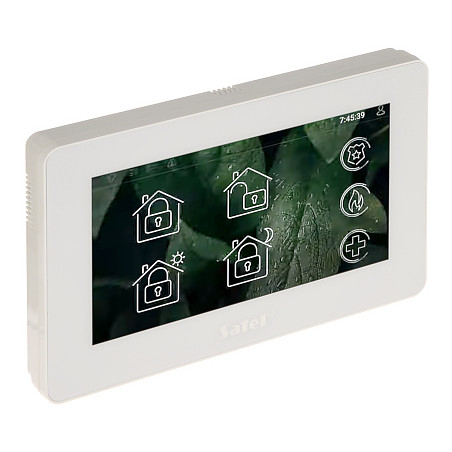

7 inch touch sensor keypad for INTEGRA VERSA alarm systems white modern MACRO SATEL INT-TSH2-W
zł1,423.11
Tax included
The INT-TSH2-W touch keypad is a modern and highly functional device that redefines how you interact with your alarm system. Designed for the most demanding users, it combines elegance with advanced technology, making it the perfect complement to systems based on INTEGRA, INTEGRA Plus, and VERSA series control panels. Its white, minimalist housing fits perfectly into the decor of contemporary interiors, both residential and office spaces.
The main advantage of the device is its large, 7-inch high-resolution capacitive touchscreen, which provides exceptional image sharpness and control precision. Thanks to this, operating even the most complex home automation functions becomes intuitive and simple, resembling the use of a modern smartphone. The graphical interface is designed to give the user instant access to the most important system status information, such as zone arming, faults, or active detectors.
A key element that enhances user comfort is the MACRO functions. They allow for the programming of complex sequences of actions that are triggered with a single touch of the screen. For example, when leaving the house, the user can arm the alarm, close the blinds, and turn off the lights with one button. This not only saves time but also guarantees that no important task is overlooked.
Safety is a priority, which is why the keypad offers quick access to special alarms: fire, panic, and auxiliary. Additionally, built-in tamper protections protect the device against unauthorized opening of the housing or detachment from the wall, which immediately generates a notification in the system. The device also supports a digital photo frame function, allowing you to display your favorite photos during idle time, making it an aesthetic decorative element.
7 inch touch sensor keypad for INTEGRA VERSA alarm systems white modern MACRO
Model: SATEL INT-TSH2-W
EAN: 6931240058404 SKU: 931058404
- Large 7-inch capacitive touchscreen with 1024 x 600 px resolution
- Full compatibility with INTEGRA, INTEGRA Plus and VERSA control panels
- Intuitive graphical interface with customizable widgets
- Support for MACRO functions allowing home automation control with a single touch
- Built-in 2 wired inputs (supported by INTEGRA/INTEGRA Plus)
- Quick access to PANIC, FIRE and AUXILIARY alarms directly from the screen
- Digital photo frame, calendar and clock function in screensaver mode
- Dual tamper protection (opening and detachment)
- microSD card slot for media storage and configuration
- Elegant white housing matching modern interiors
Description
The INT-TSH2-W touch keypad is a modern and highly functional device that redefines how you interact with your alarm system. Designed for the most demanding users, it combines elegance with advanced technology, making it the perfect complement to systems based on INTEGRA, INTEGRA Plus, and VERSA series control panels. Its white, minimalist housing fits perfectly into the decor of contemporary interiors, both residential and office spaces.
The main advantage of the device is its large, 7-inch high-resolution capacitive touchscreen, which provides exceptional image sharpness and control precision. Thanks to this, operating even the most complex home automation functions becomes intuitive and simple, resembling the use of a modern smartphone. The graphical interface is designed to give the user instant access to the most important system status information, such as zone arming, faults, or active detectors.
A key element that enhances user comfort is the MACRO functions. They allow for the programming of complex sequences of actions that are triggered with a single touch of the screen. For example, when leaving the house, the user can arm the alarm, close the blinds, and turn off the lights with one button. This not only saves time but also guarantees that no important task is overlooked.
Safety is a priority, which is why the keypad offers quick access to special alarms: fire, panic, and auxiliary. Additionally, built-in tamper protections protect the device against unauthorized opening of the housing or detachment from the wall, which immediately generates a notification in the system. The device also supports a digital photo frame function, allowing you to display your favorite photos during idle time, making it an aesthetic decorative element.
Specification
Device type
Touch keypad with graphical display
System compatibility
Full cooperation with SATEL alarm control panels from the INTEGRA, INTEGRA Plus and VERSA series
Screen and display
7-inch diagonal, capacitive matrix, 1024 x 600 pixel resolution, high contrast and wide viewing angles
User interface
Proprietary Satel graphical system providing intuitive navigation, personalized widgets and clear system status icons
Control functions
Support for MACRO functions (event sequences), control of zones, outputs and building automation elements
Hardware inputs
2 programmable wired inputs (supported only when working with INTEGRA and INTEGRA Plus control panels)
Supported line parameters
EOL, 2EOL, 3EOL (3EOL only when working with INTEGRA Plus)
Security and tamper
Dual tamper protection against opening the housing and detachment from the mounting surface
Special alarms
Dedicated on-screen buttons for immediate triggering of PANIC, FIRE and AUXILIARY (medical) alarms
Signaling and notifications
Built-in piezoelectric transducer for acoustic signaling of violations, entry/exit time and faults
Memory and multimedia
microSD/microSDHC card slot for storing photos for the digital photo frame function and configuration files
Electrical parameters
Supply voltage 12V DC (±15%), standby current consumption 250 mA, maximum current consumption 450 mA
Environmental conditions
Environmental class II according to EN50130-5, operating temperature from -10°C to +55°C, maximum humidity 93%
Construction and mounting
Housing made of high-quality white ABS plastic, surface mounting, dimensions 196 x 129 x 22 mm
Software and interface
The device features advanced firmware with update capability. The graphical interface allows for full customization of user screens, adding custom icons and grouping functions. The keypad operating system ensures smooth animations and immediate touch response. The user can configure the screensaver, choosing between a clock, calendar, or slideshow from the memory card. The software supports multi-language and allows for easy management of user permissions directly from the touchscreen. Thanks to deep integration with the control panel logic, the interface dynamically adapts to the current state of the protected object, presenting only the control options relevant at the moment. The system allows for creating shortcuts to the most frequently used functions, which significantly shortens the time required to operate the alarm system and home automation.
Contents
1x INT-TSH2-W Keypad
1x Mounting accessories
1x User manual
Dimensions, Weight
Product dimensions: 22 x 196 x 129 mm (D x W x H)
Package dimensions: 42 x 225 x 150 mm (D x W x H)
Product weight: 380 g
Weight with packaging: 492 g
