- New

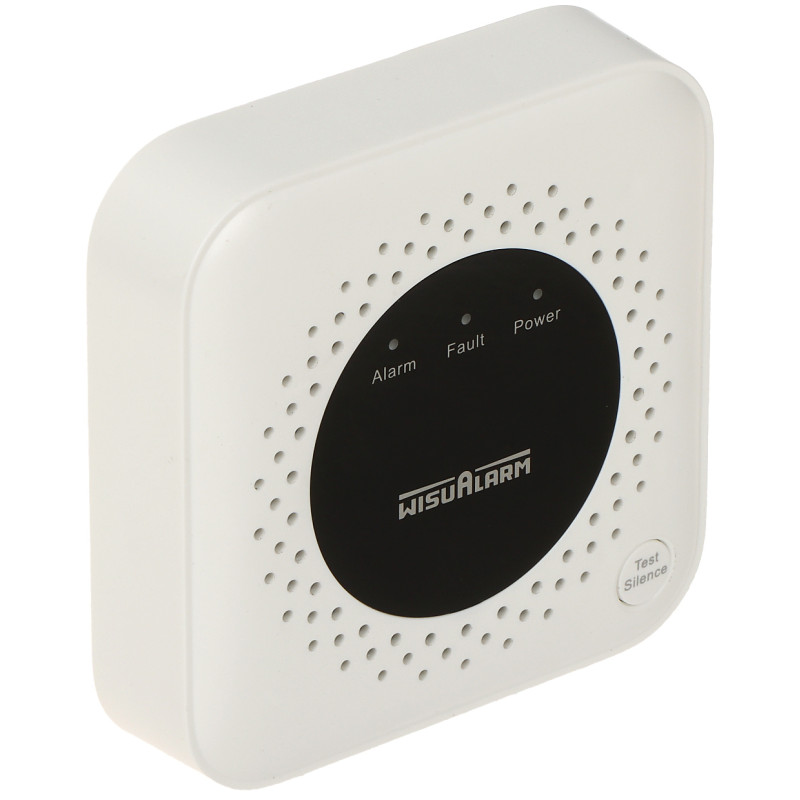

Wired LPG Propane Gas Detector for 12V DC Alarm System with Siren WISUALARM / DAHUA HY-GB40A
zł142.68
Tax included
The HY-GB40A is an advanced, microprocessor-based LPG (propane) gas detector that serves as a key safety component in any modern alarm system. The device is designed for continuous monitoring of gas concentration in the air, allowing for immediate detection of explosion or poisoning hazards. Thanks to digital signal processing, the detector features exceptional operational stability and minimal risk of false alarms, which is crucial for daily use.
Product advantages:
1. High sensitivity: Detects gas at a concentration of 10% of the Lower Explosive Limit (LEL).
2. Dual signaling: A loud acoustic signal (70dB) and clear LED flashing indicate a hazard.
3. Control functionality: Ability to connect external devices such as exhaust fans or gas shut-off valves.
4. Easy operation: The TEST/SILENCE button allows for quick testing of device functionality or silencing the alarm.
5. Complete set: The package includes a dedicated 12V DC power adapter, eliminating the need for additional purchases.
6. Durability and reliability: A solid housing and a wide operating temperature range (-10°C to 55°C) ensure stability in various conditions.
7. Aesthetics: Compact dimensions (87x87x26 mm) allow the detector to blend discreetly into the interior decor.
The HY-GB40A detector is an ideal solution for kitchens, boiler rooms, and rooms containing propane-powered appliances. The fast response time (less than 30 seconds) provides valuable time for evacuation or taking preventive measures. The device has a built-in self-diagnostic function that continuously monitors the sensor status, providing the user with a sense of complete safety.
Wired LPG Propane Gas Detector for 12V DC Alarm System with Siren
Model: WISUALARM / DAHUA HY-GB40A
EAN: 6931240095515 SKU: 931095516
- Continuous monitoring of LPG (propane) gas presence in the air
- Microprocessor-based digital signal processing
- High sensitivity and stable detection performance
- Fast response time of less than 30 seconds
- Low false alarm rate due to advanced algorithms
- Optical (LED) and acoustic (70dB buzzer) signaling
- NO relay output for fan control
- Dedicated control output for gas shut-off valve
- Convenient TEST/SILENCE button for device operation
- Self-diagnostic function monitoring sensor status
- 12V DC / 1A power adapter included in the set
- Wide operating temperature range from -10°C to 55°C
- Compact housing with a modern design
- 3-year manufacturer warranty
Description
The HY-GB40A is an advanced, microprocessor-based LPG (propane) gas detector that serves as a key safety component in any modern alarm system. The device is designed for continuous monitoring of gas concentration in the air, allowing for immediate detection of explosion or poisoning hazards. Thanks to digital signal processing, the detector features exceptional operational stability and minimal risk of false alarms, which is crucial for daily use.
Product advantages:
1. High sensitivity: Detects gas at a concentration of 10% of the Lower Explosive Limit (LEL).
2. Dual signaling: A loud acoustic signal (70dB) and clear LED flashing indicate a hazard.
3. Control functionality: Ability to connect external devices such as exhaust fans or gas shut-off valves.
4. Easy operation: The TEST/SILENCE button allows for quick testing of device functionality or silencing the alarm.
5. Complete set: The package includes a dedicated 12V DC power adapter, eliminating the need for additional purchases.
6. Durability and reliability: A solid housing and a wide operating temperature range (-10°C to 55°C) ensure stability in various conditions.
7. Aesthetics: Compact dimensions (87x87x26 mm) allow the detector to blend discreetly into the interior decor.
The HY-GB40A detector is an ideal solution for kitchens, boiler rooms, and rooms containing propane-powered appliances. The fast response time (less than 30 seconds) provides valuable time for evacuation or taking preventive measures. The device has a built-in self-diagnostic function that continuously monitors the sensor status, providing the user with a sense of complete safety.
Specification
Detection
LPG gas (propane)
Alarm signaling
70 dB buzzer / 1 m, LED flashing, Signal to alarm control panel
Alarm concentration
10% of the Lower Explosive Limit (LEL)
Response time
≤ 30 s (fast reaction to leak)
Control outputs
NO relay output (fan control via voltage switching), Control output for gas shut-off valve
Operation functions
TEST/SILENCE button (device testing and alarm silencing), Alarm silencing function
Self-diagnostics
Yes - built-in system for monitoring sensor and electronic circuit health
Power supply
12 V DC / 1 A (power adapter included)
Operating temperature
-10 °C ... 55 °C
Operational status signaling
LEDs indicating power, alarm, and fault status
Construction
Plastic housing, wall mounting
Application
Indoors, alarm systems, kitchens, boiler rooms
Software and logic
The HY-GB40A detector firmware is based on advanced digital signal processing algorithms that analyze data from the gas sensor in real-time. The device's operating system manages the self-diagnostic process, checking the correct operation of key components at every startup and at regular intervals. The temperature compensation algorithm allows for maintaining constant detection sensitivity regardless of ambient fluctuations. Additionally, the software supports intelligent control output logic, enabling precise activation of ventilation or shutting off gas valves when safe LPG concentration thresholds are exceeded.
Warranty
3 years
Contents
1x HY-GB40A gas detector
1x 12V DC / 1A power adapter
1x Mounting accessories
1x User manual
Dimensions, Weight
Product dimensions: 26 x 87 x 87 mm (D x W x H)
Package dimensions: 65 x 138 x 155 mm (D x W x H)
Product weight: 90 g
Weight with packaging: 286 g
