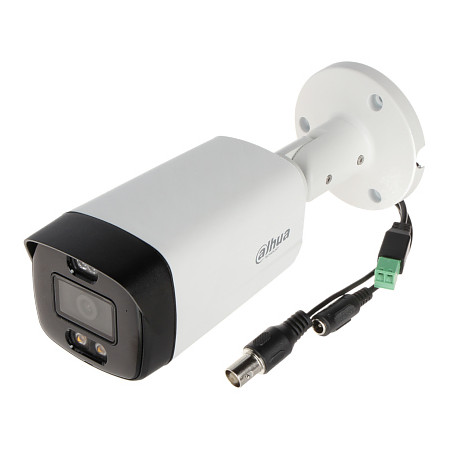

4-in-1 5MP TiOC Camera Active Deterrence Siren LED Full-Color Night Vision WDR 120dB IP67 3.6mm Lens Smart Dual Light DAHUA HAC-
zł924.96
Tax included
The HAC-ME1509TH-A-PV-0360B-S2 megapixel camera is a modern TiOC (Three-in-One Camera) device that combines three innovative technologies: 24/7 full-color imaging, active deterrence, and artificial intelligence. Thanks to the 1/2.7" Progressive Scan CMOS sensor, the device generates a crystal-clear image in 5 MP resolution, allowing for the detection of the finest details in the monitored area.
One of the greatest advantages of this model is the Smart Dual Illumination technology. It allows for intelligent switching between infrared (IR) mode and white light (LED). When an intruder is detected, the camera automatically activates the white light, which not only illuminates the scene in full color but also serves as a warning function. Additionally, the active deterrence system uses a built-in alarm siren and flashing red and blue lights, which effectively discourages uninvited guests from taking further action.
The camera is characterized by exceptional resistance to weather conditions thanks to its IP67 ingress protection rating, making it an ideal choice for outdoor installation on building facades, parking lots, or construction sites. The 120dB WDR wide dynamic range guarantees image clarity even in difficult lighting conditions, such as strong sunlight or deep shadows. The device supports four transmission standards: AHD, HD-CVI, HD-TVI, and CVBS, making it extremely versatile and compatible with most recorders available on the market. By choosing this model, you are investing in comprehensive security based on the latest achievements in video technology.
4-in-1 5MP TiOC Camera Active Deterrence Siren LED Full-Color Night Vision WDR 120dB IP67 3.6mm Lens Smart Dual Light
Model: DAHUA HAC-ME1509TH-A-PV-03
EAN: 6931240053126 SKU: 931053129
- 5 MP resolution (2880 x 1620) for high image detail
- TiOC technology - integration of Full-Color, active deterrence, and AI
- Smart Dual Illumination - intelligent IR and white light illumination up to 40m
- Active deterrence: built-in alarm siren and flashing red and blue lights
- Built-in microphone and speaker for two-way audio communication
- WDR 120dB - excellent visibility in high-contrast lighting conditions
- Support for AHD, HD-CVI, HD-TVI, and analog CVBS standards
- IP67 ingress protection rating ensuring full protection against dust and water
- 3.6 mm fixed lens with a wide viewing angle of approx. 89 degrees
- Robust housing made of a combination of metal and plastic
Description
The HAC-ME1509TH-A-PV-0360B-S2 megapixel camera is a modern TiOC (Three-in-One Camera) device that combines three innovative technologies: 24/7 full-color imaging, active deterrence, and artificial intelligence. Thanks to the 1/2.7" Progressive Scan CMOS sensor, the device generates a crystal-clear image in 5 MP resolution, allowing for the detection of the finest details in the monitored area.
One of the greatest advantages of this model is the Smart Dual Illumination technology. It allows for intelligent switching between infrared (IR) mode and white light (LED). When an intruder is detected, the camera automatically activates the white light, which not only illuminates the scene in full color but also serves as a warning function. Additionally, the active deterrence system uses a built-in alarm siren and flashing red and blue lights, which effectively discourages uninvited guests from taking further action.
The camera is characterized by exceptional resistance to weather conditions thanks to its IP67 ingress protection rating, making it an ideal choice for outdoor installation on building facades, parking lots, or construction sites. The 120dB WDR wide dynamic range guarantees image clarity even in difficult lighting conditions, such as strong sunlight or deep shadows. The device supports four transmission standards: AHD, HD-CVI, HD-TVI, and CVBS, making it extremely versatile and compatible with most recorders available on the market. By choosing this model, you are investing in comprehensive security based on the latest achievements in video technology.
Specification
Standard
AHD / HD-CVI / HD-TVI / CVBS
Sensor
1/2.7 " Progressive Scan CMOS
Sensor size
5 MP
Resolution
2880 x 1620 (5 MP) @ HD-CVI @ 25 fps; 2560 x 1440 (3.7 MP) @ AHD / CVI / TVI @ 25 fps; 1920 x 1080 (1080p) @ HD-CVI @ 25 fps; 960 x 576 (960H) @ PAL
Lens
3.6 mm
Viewing angle
89 ° (manufacturer data), 84 ° (our tests)
IR illuminator range
40 m
LED illuminator range
40 m (white light)
Audio
Built-in microphone, built-in speaker, alarm siren, audio support via coaxial cable (HD-CVI only)
Video output
1 Vpp / 75 Ω - BNC (AHD/CVI/TVI/CVBS)
Alarm inputs / outputs
0 / 1
Selected image functions
WDR - 120 dB (Wide Dynamic Range), 3D-DNR (Digital Noise Reduction), F-DNR (Defog), BLC/HLC (Backlight/Highlight Compensation), AGC (Automatic Gain Control), Mirror, Privacy zones, Sharpness
Active deterrence
Flashing red and blue lights (configurable frequency), Alarm siren (3 volume levels)
Software and Interface
The camera works with Dahua recorders that support TiOC and AI functions. Settings are managed via an intuitive OSD menu available directly from the recorder (control via coaxial cable). The user has access to advanced deterrence schedules, detection zone configuration, and siren sound selection. Thanks to integration with the DMSS mobile application (available on Android/iOS), it is possible to receive real-time push notifications about alarm events, live view, and playback of recordings. Smart PSS software for PCs allows for comprehensive monitoring system management, offering advanced analytics and data archiving.
Housing and environment
Type: Compact, Material: Plastic + Metal, Color: White + Black, Ingress protection: IP67, Operating temperature: -40 °C ... 60 °C
Power supply and power consumption
12 V DC / 870 mA, Power consumption: ≤ 10.5 W
Contents
1x Camera
1x Mounting screw kit
1x Drill template
1x User manual
Dimensions, Weight
Product dimensions: 91 x 241 x 91 mm (D x W x H)
Package dimensions: 120 x 280 x 120 mm (D x W x H)
Product weight: 480 g
Weight with packaging: 680 g
