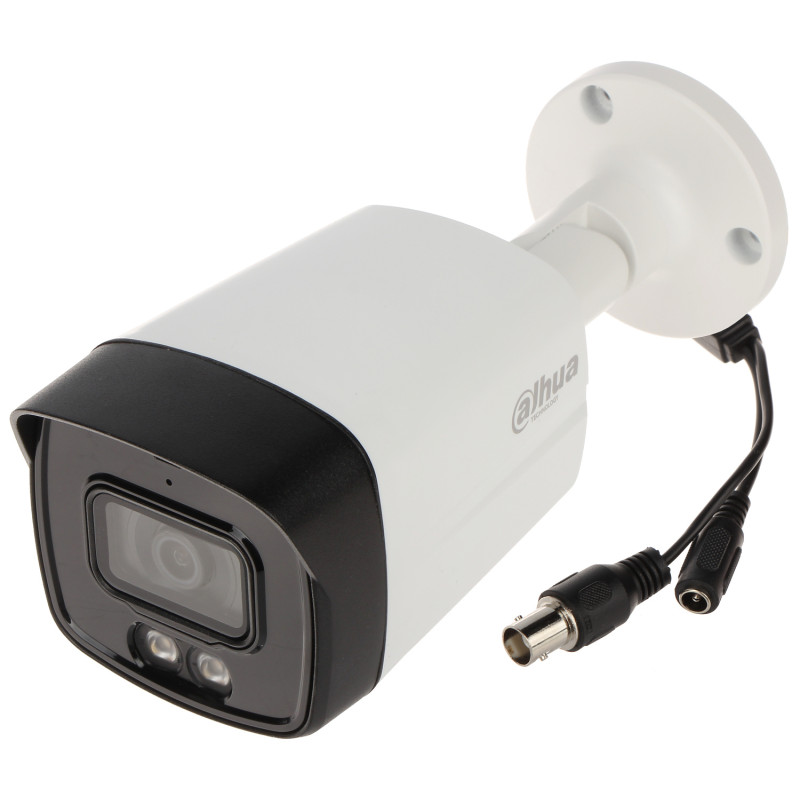

4-in-1 Camera AHD CVI TVI PAL 1080p 2Mpx 3.6mm Smart Dual Illumination IR LED 40m Microphone IP67 DAHUA HAC-HFW1200TLM-IL-A-0360
zł384.99
Tax included
The DAHUA HAC-HFW1200TLM-IL-A-0360B-S6 megapixel camera is a modern solution for monitoring systems, offering exceptional flexibility through support for four transmission standards: AHD, HD-CVI, HD-TVI, and PAL. Equipped with a 2.1 Mpx (1080p) Progressive Scan CMOS sensor, it provides a crystal-clear image without latency, which is crucial in security systems.
The main advantage of the device is the innovative Smart Dual Illumination technology. It allows for intelligent night lighting management – the camera can operate in a discreet infrared (IR) mode, and upon detecting motion in the monitored zone, it automatically activates the white LED illuminator. As a result, the user receives a color, detailed image at critical moments, which significantly facilitates the identification of people or vehicles. The range of both illuminators is an impressive 40 meters.
The camera has a built-in microphone, which enables audio recording without the need for additional cables (audio function via coaxial cable available in HD-CVI mode). A robust housing with an IP67 ingress protection rating guarantees full resistance to harsh weather conditions, such as heavy rain or dust, making it an ideal choice for outdoor installation. A wide viewing angle of 83 degrees allows for monitoring large areas using a single camera, which optimizes the costs of the entire installation.
4-in-1 Camera AHD CVI TVI PAL 1080p 2Mpx 3.6mm Smart Dual Illumination IR LED 40m Microphone IP67
Model: DAHUA HAC-HFW1200TLM-IL-A-0360B-S6
EAN: 6931240011591 SKU: 931011592
- Full HD resolution 1920 x 1080 (2.1 Mpx)
- Smart Dual Illumination technology (IR + LED up to 40m)
- Support for AHD, HD-CVI, HD-TVI, CVBS standards
- Built-in microphone with coaxial cable transmission
- IP67 ingress protection rating - full resistance to external conditions
- Image enhancement functions: D-WDR, 3D-DNR, BLC, HLC
- Mechanical ICR infrared filter
- Wide 83° viewing angle thanks to 3.6mm lens
Description
The DAHUA HAC-HFW1200TLM-IL-A-0360B-S6 megapixel camera is a modern solution for monitoring systems, offering exceptional flexibility through support for four transmission standards: AHD, HD-CVI, HD-TVI, and PAL. Equipped with a 2.1 Mpx (1080p) Progressive Scan CMOS sensor, it provides a crystal-clear image without latency, which is crucial in security systems.
The main advantage of the device is the innovative Smart Dual Illumination technology. It allows for intelligent night lighting management – the camera can operate in a discreet infrared (IR) mode, and upon detecting motion in the monitored zone, it automatically activates the white LED illuminator. As a result, the user receives a color, detailed image at critical moments, which significantly facilitates the identification of people or vehicles. The range of both illuminators is an impressive 40 meters.
The camera has a built-in microphone, which enables audio recording without the need for additional cables (audio function via coaxial cable available in HD-CVI mode). A robust housing with an IP67 ingress protection rating guarantees full resistance to harsh weather conditions, such as heavy rain or dust, making it an ideal choice for outdoor installation. A wide viewing angle of 83 degrees allows for monitoring large areas using a single camera, which optimizes the costs of the entire installation.
Specification
Video standard
AHD, HD-CVI, HD-TVI, CVBS (PAL)
Image sensor
Progressive Scan CMOS 2.1 Mpx
Resolution and frame rate
1920 x 1080 (1080p) @ 25 fps; 960 x 576 (960H) @ 25 fps
Lens and viewing angle
Focal length 3.6 mm; Viewing angle: 83° (manufacturer), 84° (tests)
IR illuminator
Range up to 40 m, automatic adjustment
LED illuminator (white light)
Range up to 40 m, Smart Dual Illumination mode
Audio
Built-in microphone; Audio support via coaxial cable (only in HD-CVI standard)
Image functions
D-WDR (dynamic range), 3D-DNR (noise reduction), BLC/HLC (light compensation), AGC (gain control), WB (white balance), Mirror, Sharpness
Day/Night mode
ICR - Mechanical infrared filter
Privacy zones
Maximum 8 configurable zones
Software and configuration
Built-in OSD menu accessible from the recorder level (UTC function). The control software allows for precise adjustment of exposure parameters, switching sensitivity of Smart Dual Illumination, and management of advanced digital image processing functions. The control interface is fully integrated with Dahua systems, enabling remote setting changes without the need for physical access to the camera. The system supports intelligent adaptation to lighting conditions, optimizing parameters in real-time.
Housing and color
Compact type, made of a combination of plastic and metal, white color
Ingress protection and resistance
IP67 - water and dust resistance
Power supply and power consumption
12 V DC / 340 mA; Power consumption ≤ 4.1 W
Operating temperature
-40 °C ... 60 °C
Contents
1x Camera
1x Set of mounting plugs
1x Drilling template
1x User manual
Dimensions, Weight
Product dimensions: 198 x 80 x 76 mm (D x W x H)
Packaging dimensions: 240 x 115 x 110 mm (D x W x H)
Product weight: 300 g
Weight with packaging: 468 g
