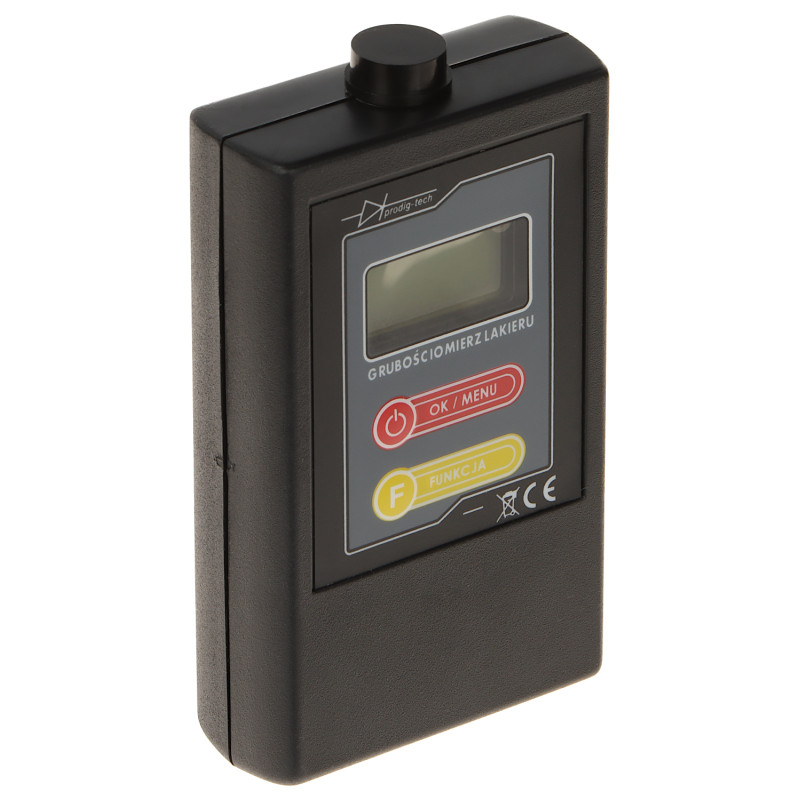

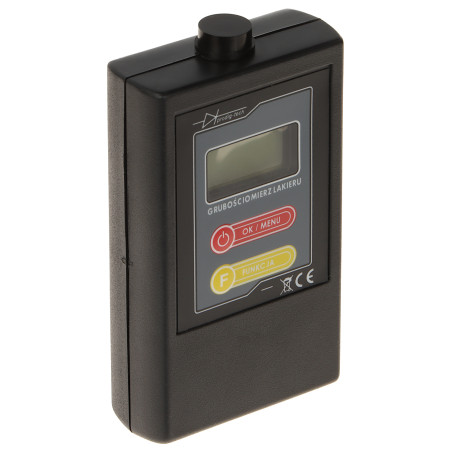

Paint thickness gauge for steel and galvanized sheets car paint tester built-in probe LCD PRODIG-TECH GL-1
zł187.58
Tax included
The GL-1 paint thickness gauge is a professional and reliable measuring device that is essential equipment for every professional car workshop, car dealership, and automotive enthusiast looking for certainty when purchasing a used vehicle. The device has been designed for precise examination of paint coating thickness on steel and galvanized steel sheets, which allows for the immediate detection of any bodywork repairs, filling, or repainting of body elements.
The main advantage of the GL-1 model is its ease of use combined with high measurement accuracy. Thanks to the built-in probe, the user can easily reach different points of the vehicle, and the results are presented on a clear, backlit LCD display, which enables work even in poorly lit places, such as garages or underground parking lots. The device offers a choice of measurement resolution between 1 µm and 10 µm, which allows for adjusting the precision to the user's current needs.
Another advantage is the zeroing (calibration) function, which guarantees that the gauge will always indicate correct values, regardless of external conditions. A special calibration plate is included in the set, which makes the product ready for use immediately after taking it out of the box. The gauge also has a built-in memory for 100 measurements, which facilitates the analysis of the entire vehicle without the need to write down the results on paper. The automatic shutdown system after 3 minutes of inactivity significantly extends battery life, which is crucial during intensive field work. The solid housing and ergonomic shape make the device fit securely in the hand and resistant to difficult workshop conditions.
Paint thickness gauge for steel and galvanized sheets car paint tester built-in probe LCD
Model: PRODIG-TECH GL-1
EAN: 6931240011041 SKU: 931011045
- Measurement on steel and galvanized steel sheets
- High-quality built-in measuring probe
- Measurement resolution selectable in the menu: 1 µm or 10 µm
- Wide measuring range from 0 µm to 1100 µm
- Internal memory allowing to save up to 100 measurements
- Backlit LCD display for easy reading
- Calibration (zeroing) function with included plate
- Powered by a common 9V battery (included)
- Automatic shutdown after 3 minutes of inactivity
- Intuitive menu in Polish
Description
The GL-1 paint thickness gauge is a professional and reliable measuring device that is essential equipment for every professional car workshop, car dealership, and automotive enthusiast looking for certainty when purchasing a used vehicle. The device has been designed for precise examination of paint coating thickness on steel and galvanized steel sheets, which allows for the immediate detection of any bodywork repairs, filling, or repainting of body elements.
The main advantage of the GL-1 model is its ease of use combined with high measurement accuracy. Thanks to the built-in probe, the user can easily reach different points of the vehicle, and the results are presented on a clear, backlit LCD display, which enables work even in poorly lit places, such as garages or underground parking lots. The device offers a choice of measurement resolution between 1 µm and 10 µm, which allows for adjusting the precision to the user's current needs.
Another advantage is the zeroing (calibration) function, which guarantees that the gauge will always indicate correct values, regardless of external conditions. A special calibration plate is included in the set, which makes the product ready for use immediately after taking it out of the box. The gauge also has a built-in memory for 100 measurements, which facilitates the analysis of the entire vehicle without the need to write down the results on paper. The automatic shutdown system after 3 minutes of inactivity significantly extends battery life, which is crucial during intensive field work. The solid housing and ergonomic shape make the device fit securely in the hand and resistant to difficult workshop conditions.
Specification
Application
Precise measurement of paint thickness on substrates made of steel sheet and galvanized steel sheet. Ideal for checking the originality of the paint coating in passenger cars and vans.
Measuring probe
Permanently built into the device housing, which ensures measurement stability and eliminates the risk of damaging external cables. The probe tip is designed not to scratch the tested paint.
Measurement resolution
The user has the option to select the resolution in the device menu: 1 µm or 10 µm. This allows for very precise examination of thin paint layers or a quick overview of thick filler layers.
Measuring range
A wide range from 0 µm to 1100 µm allows for the detection of even very thick layers of repair materials such as filler or primer.
Measurement memory
Built-in non-volatile memory allowing to save up to 100 latest measurement results, which enables later verification of the entire body condition without the need for note-taking.
Display
Modern LCD screen with backlight function, ensuring excellent visibility of results in all lighting conditions, including in full sun and in the dark.
Calibration
Function for zeroing the device using the calibration plate included in the set. This process is simple and fast, ensuring repeatability and reliability of results.
Power supply
The device is powered by a standard 9V battery (type 6F22 or 6LR61). The battery is included in the set, which allows for immediate start of work after purchase.
Energy saving
The automatic shutdown function (Auto Power Off) activates after 3 minutes of inactivity, protecting the battery from accidental discharge.
User interface
Intuitive menu operated via the ON/OFF/MENU button and a dedicated function button. Simple navigation allows for instant change of operating parameters.
Battery indicator
A graphic battery level indicator displayed on the screen informs the user about the need to replace the power source in advance.
Software
The device has built-in control software that manages the measurement process and the user interface. This software enables quick calibration of the device using the zeroing function, which is crucial for maintaining precision. The system menu allows for easy change of measurement resolution (1/10 µm) and management of results saved in memory (up to 100 records). The gauge's operating system also monitors battery status and manages the energy-saving function, automatically turning off the device after 3 minutes of inactivity. The entire interface has been optimized for speed of operation and readability on the built-in LCD screen.
Housing
Made of high-quality plastic, ergonomic and resistant to typical workshop contaminants and light impacts.
Supported languages
Full support for the menu and messages in Polish, which significantly facilitates configuration and daily operation of the device.
Contents
1x GL-1 paint thickness gauge
1x Calibration (zeroing) plate
1x 9V 6F22 battery
1x User manual in Polish
Dimensions, Weight
Product dimensions: 26 x 67 x 118 mm (D x W x H)
Packaging dimensions: 35 x 145 x 150 mm (D x W x H)
Product weight: 150 g
Weight with packaging: 220 g
