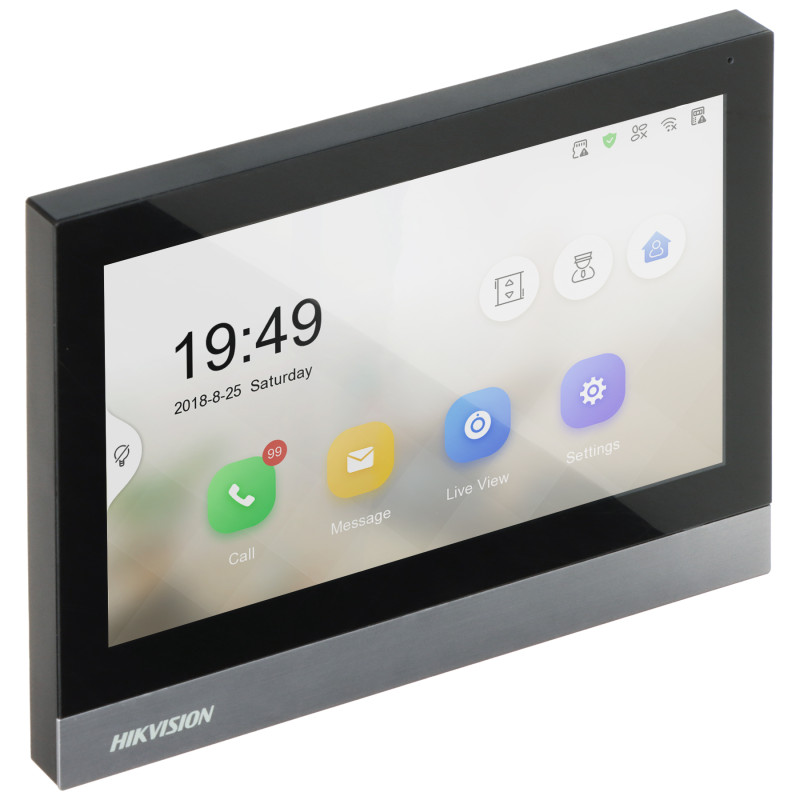

7 inch IP Video Intercom Indoor Station Touch PoE 8 Alarm Inputs iVMS-4200 Hik-Connect Silver Hikvision DS-KH8380-TE1
zł1,894.20
Tax included
The DS-KH8380-TE1 indoor panel is an advanced device that serves as the heart of a modern Hikvision IP video intercom system. Equipped with a 7-inch capacitive touch screen with a high resolution of 1024 x 600 pixels, it provides a crystal-clear image and intuitive operation. One of the key advantages is the housing made of high-quality aluminum, which gives the device an elegant look and exceptional durability.The device not only enables communication with the door station but also acts as a simplified alarm control panel thanks to the support for 8 alarm inputs. Integration with iVMS-4200 software and the Hik-Connect mobile app allows for remote call answering and gate opening from anywhere in the world. The device supports PoE (802.3af) power, which significantly simplifies installation by eliminating the need for additional power cables.Additionally, the built-in microSD card slot with a capacity of up to 128GB allows for automatic saving of photos and voice messages from visitors in case of no response. The system offers smooth adjustment of monitor parameters, two-way audio communication, and the ability to directly view images from Hikvision IP cameras installed on the premises. This is a comprehensive solution combining communication functions with a security system, ideal for demanding home and office users.
7 inch IP Video Intercom Indoor Station Touch PoE 8 Alarm Inputs iVMS-4200 Hik-Connect Silver
Model: Hikvision DS-KH8380-TE1
EAN: 6931240028049 SKU: 931028045
- Color, 7-inch capacitive touch screen
- High image resolution 1024 x 600 pixels
- Elegant housing made of durable aluminum
- Support for PoE (802.3af) and 12V DC power supply
- Built-in module with 8 alarm inputs and 4 relay outputs
- Full integration with the Hik-Connect mobile app (P2P)
- Ability to view images from Hikvision IP cameras
- microSD memory card slot up to 128 GB for photos and messages
- Two-way voice communication with noise and echo reduction
- Intercom function - communication between multiple panels
Description
The DS-KH8380-TE1 indoor panel is an advanced device that serves as the heart of a modern Hikvision IP video intercom system. Equipped with a 7-inch capacitive touch screen with a high resolution of 1024 x 600 pixels, it provides a crystal-clear image and intuitive operation. One of the key advantages is the housing made of high-quality aluminum, which gives the device an elegant look and exceptional durability.
The device not only enables communication with the door station but also acts as a simplified alarm control panel thanks to the support for 8 alarm inputs. Integration with iVMS-4200 software and the Hik-Connect mobile app allows for remote call answering and gate opening from anywhere in the world. The device supports PoE (802.3af) power, which significantly simplifies installation by eliminating the need for additional power cables.Additionally, the built-in microSD card slot with a capacity of up to 128GB allows for automatic saving of photos and voice messages from visitors in case of no response. The system offers smooth adjustment of monitor parameters, two-way audio communication, and the ability to directly view images from Hikvision IP cameras installed on the premises. This is a comprehensive solution combining communication functions with a security system, ideal for demanding home and office users.Specification
Screen and Display
Type: 7-inch capacitive LCD touch screen; Resolution: 1024 x 600 px; Intuitive graphical interface for easy navigation.
System Compatibility
Full compatibility with Hikvision IP video intercom systems; Support for TCP/IP, RTSP network protocols.
Audio and Communication
Built-in omnidirectional microphone; Built-in speakers; Two-way communication (Full Duplex); Sound quality improvement functions: echo suppression and noise reduction.
Alarm Interfaces
Alarm inputs: 8; Relay outputs: 4 x NO/NC; Ability to operate as a simplified alarm control panel with notifications.
Memory and Archiving
Internal memory: 128 MB (built-in); microSD card support: up to 128 GB (not included); Automatic saving of photos and voice messages.
Video Functions
Support for capturing photos during calls; Ability to live view from external Hikvision IP cameras.
Software and Management
The device is fully configurable using professional iVMS-4200 software. iVMS-4200 is a versatile security management system that allows for full administration of users, events, and network parameter configuration. Additionally, the panel supports the Hik-Connect mobile app available for Android and iOS systems. This app allows for real-time video call answering, remote door/gate opening, event history viewing, and receiving push notifications about alarms. Thanks to P2P cloud technology, remote access does not require complicated router configuration or a static IP address.
Power Supply and Consumption
Power supply: PoE (802.3af) or 12 V DC; Power consumption: maximum ≤ 12 W.
Construction and Finish
Housing material: Aluminum; Color: Silver with black finishing elements.
Operating Conditions
Operating temperature: -10 °C ... 55 °C; Humidity: 10% - 90% (non-condensing).
Interface Languages
Supported languages: Polish, English, Bulgarian, Croatian, Czech, French, Greek, Spanish, Dutch, German, Portuguese, Romanian, Serbian, Hungarian, Italian.
Additional Functions
Remote opening via mobile client; Voice message recording; Smooth brightness and volume adjustment; Internal communication between panels.
Security
Administrator password setup required upon first startup; Data transmission encryption.
Warranty and Manufacturer
Manufacturer: Hikvision; SAP code: 305305594; Warranty period: 3 years.
Contents
1x Indoor panel DS-KH8380-TE1
1x Mounting accessories
1x User manual
Dimensions, Weight
Product dimensions: 22 x 179 x 127 mm (D x W x H)
Package dimensions: 60 x 250 x 175 mm (D x W x H)
Product weight: 360 g
Weight with packaging: 702 g
