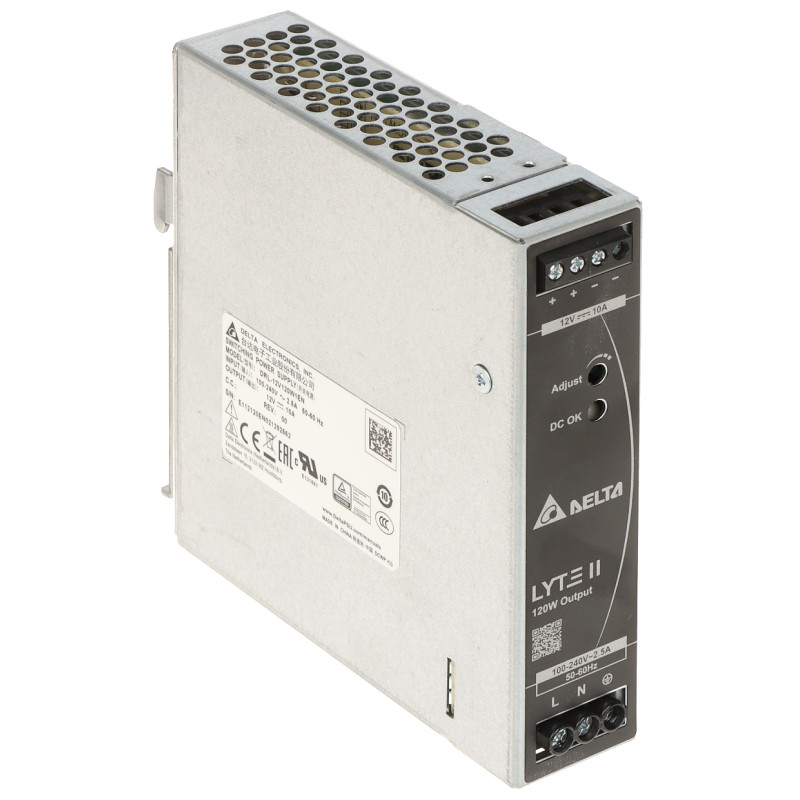

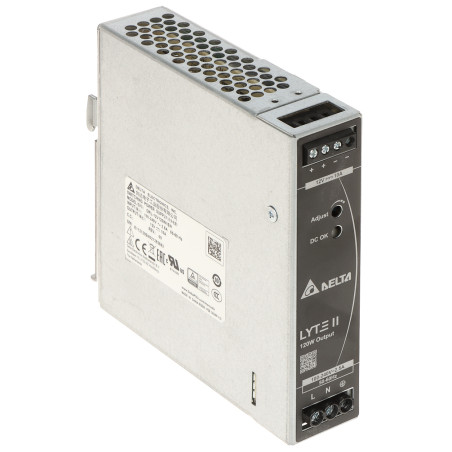

12V 10A 120W DIN Rail Switching Power Supply Industrial Stabilized TS35 Mount Delta Electronics DRL-12V120W-1EN
zł177.24
Tax included
The professional Delta Electronics switching power supply model DRL-12V120W-1EN is a high-class device designed for mounting on a standard DIN rail (TS35/7.5 or 15). It is an ideal solution for industrial automation systems, CCTV monitoring systems, and advanced LED lighting installations where the highest reliability and stability of power parameters are required. The device features a wide input voltage range from 90V to 264V AC, allowing for safe operation in various power grid conditions.
The main advantage of this model is its exceptional resistance to harsh environmental conditions. The power supply can operate in extreme temperatures from -40°C up to +70°C, making it one of the most durable solutions in its class. High efficiency at 86% minimizes energy losses and reduces heat generation, which translates into a longer service life for internal components.
The safety of connected receivers is guaranteed by a series of built-in protections: short-circuit, overload, and overvoltage. Thanks to two power outputs, installation and power distribution become much simpler. The product has an impressive MTBF index exceeding 700,000 hours, which confirms its industrial quality. Delta Electronics, as a global leader in the production of power systems, offers a 3-year warranty on this model, which is additional confirmation of solid workmanship. The compact housing with a width of only 30mm allows for space savings in control cabinets.
12V 10A 120W DIN Rail Switching Power Supply Industrial Stabilized TS35 Mount
Model: Delta Electronics DRL-12V120W-1EN
EAN: 6931240016497 SKU: 931016497
- Mounting on DIN rail TS35/7.5 or 15
- Wide input voltage range 90V - 264V AC
- High energy efficiency at 86%
- Operation in extreme temperatures from -40°C to +70°C
- Complete protection system: SCP, OLP, OVP
- Two power outputs for easy installation
- Very high MTBF reliability index > 700,000h
- Slim housing design to save space
- 3-year manufacturer warranty
Description
The professional Delta Electronics switching power supply model DRL-12V120W-1EN is a high-class device designed for mounting on a standard DIN rail (TS35/7.5 or 15). It is an ideal solution for industrial automation systems, CCTV monitoring systems, and advanced LED lighting installations where the highest reliability and stability of power parameters are required. The device features a wide input voltage range from 90V to 264V AC, allowing for safe operation in various power grid conditions.
The main advantage of this model is its exceptional resistance to harsh environmental conditions. The power supply can operate in extreme temperatures from -40°C up to +70°C, making it one of the most durable solutions in its class. High efficiency at 86% minimizes energy losses and reduces heat generation, which translates into a longer service life for internal components.
The safety of connected receivers is guaranteed by a series of built-in protections: short-circuit, overload, and overvoltage. Thanks to two power outputs, installation and power distribution become much simpler. The product has an impressive MTBF index exceeding 700,000 hours, which confirms its industrial quality. Delta Electronics, as a global leader in the production of power systems, offers a 3-year warranty on this model, which is additional confirmation of solid workmanship. The compact housing with a width of only 30mm allows for space savings in control cabinets.
Specification
Power supply type
Switching - advanced energy processing technology ensuring high output voltage stability and minimal power losses.
Supply voltage
90 V ... 264 V AC - wide input range enabling operation in single-phase installations worldwide, resistance to grid voltage fluctuations.
Output voltage
12 V DC - stabilized DC voltage ideal for industrial cameras, recorders, and PLC controllers.
Output voltage regulation
10.8 V ... 13.2 V DC - built-in potentiometer allows for precise voltage tuning to compensate for voltage drops on long power cables.
Current efficiency
10 A - high output current allowing multiple devices to be powered simultaneously from a single source.
Power supply wattage
120 W - large power reserve ensuring stable operation even at full system load.
Number of outputs
2 pcs. - dual output terminals facilitating aesthetic and safe wiring connection without the need for additional distribution blocks.
Energy efficiency
86 % - high efficiency reducing operating costs and lowering the temperature inside the device housing.
Housing type
DIN - standard industrial housing adapted for quick mounting on TS35/7.5 or TS35/15 rails.
Technical protections
Short-circuit (SCP), Overload (OLP), Overvoltage (OVP) - comprehensive protection system for the power supply and powered devices against electrical failures.
MTBF reliability
> 700,000 hours - extremely high mean time between failures confirming the highest quality of Delta Electronics components.
Environmental conditions
Operating temperature from -40 °C to 70 °C; Relative humidity 10 % ... 95 % - capability to operate in unheated outdoor cabinets and hot production halls.
Dimensions and construction
123.4 x 123.6 x 30 mm - slim design allowing for optimal use of mounting space in switchboards.
Certificates and Warranty
Compliance with CE standards, 3-year manufacturer warranty - confidence in purchasing a proven and safe device from a global leader.
Contents
1x DIN rail switching power supply
1x User manual
Dimensions, Weight
Product dimensions: 123 x 30 x 124 mm (D x W x H)
Package dimensions: 150 x 150 x 35 mm (D x W x H)
Product weight: 450 g
Weight with packaging: 488 g
