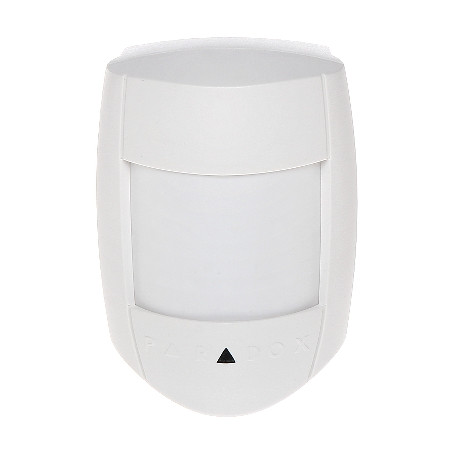

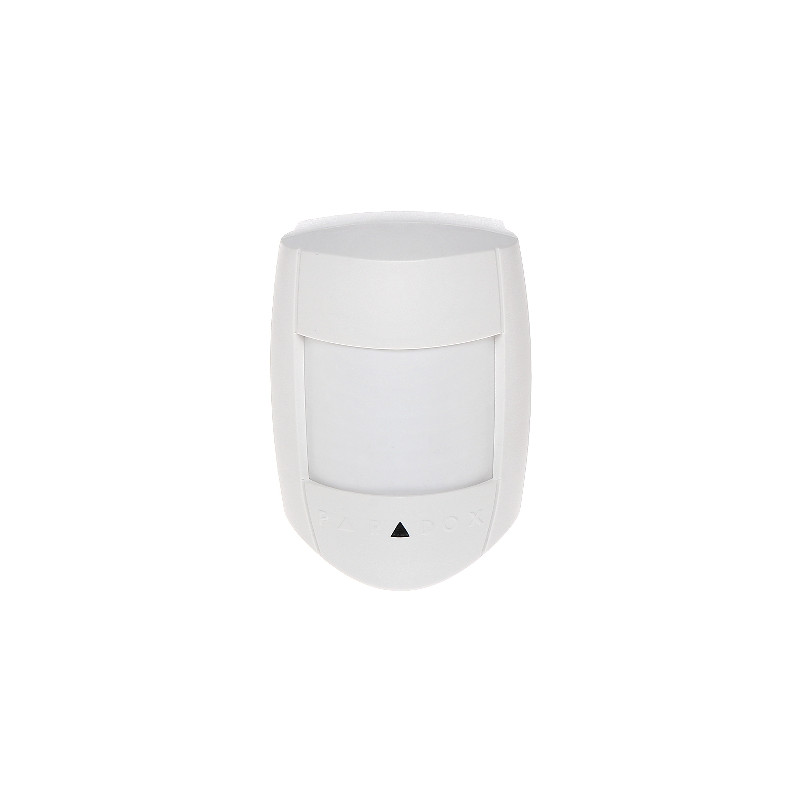

Digital PIR Detector Quad Pyroelement 12x12m 110 Degrees Alarm System Digital Shield PARADOX DG65+-P2C
zł173.74
Tax included
The DG65+-P2C passive infrared sensor is a professional solution dedicated to alarm systems operating inside buildings. The device was designed by the renowned company PARADOX, which guarantees the highest quality of workmanship and reliability in all operating conditions. The main advantage of the detector is the use of an advanced Quad pyroelement, which, combined with full digital signal processing, ensures exceptional intruder detection precision while maintaining stability.
Thanks to the patented Digital Shield technology, the detector effectively distinguishes human movement from typical environmental interference, which drastically reduces the number of false alarms. Another key advantage is the integrated metal shield, which protects sensitive electronics against electromagnetic (EMI) and radio (RFI) interference, which is essential in modern facilities saturated with wireless devices. The detector offers a wide viewing angle of 110 degrees and a detection range of up to 12 meters, which allows for effective protection of large residential or office areas using a minimal number of devices.
Additionally, the digital temperature compensation function makes the detector automatically adjust its sensitivity to changes in ambient temperature, maintaining a constant level of security regardless of the season. The aesthetic, white housing made of high-quality plastic and compact dimensions make the device discreetly blend into the decor of any interior. The product meets rigorous EN 50131 (Grade 2) safety standards, which confirms its suitability for professional alarm installations requiring a high degree of protection. By choosing the DG65+-P2C model, you are investing in proven technology that ensures peace of mind and safety for household members and property for many years.
Digital PIR Detector Quad Pyroelement 12x12m 110 Degrees Alarm System Digital Shield
Model: PARADOX DG65+-P2C
EAN: 6931240049501 SKU: 931049504
- Advanced Quad Pyroelement (Quad Sensor) for maximum precision
- Full digital signal processing without analog processing
- Patented Digital Shield algorithm reducing false alarms
- Interlock Sensor Geometry (ISG) technology improving detection
- Metal shield protecting against EMI and RFI interference
- Wide 110° viewing angle and range up to 12 meters
- Digital temperature compensation for stable operation in various conditions
- Compliance with EN 50131 standard and Grade 2 security class
- Interchangeable Fresnel lenses allowing for characteristic adjustment
- Built-in tamper protection
Description
The DG65+-P2C passive infrared sensor is a professional solution dedicated to alarm systems operating inside buildings. The device was designed by the renowned company PARADOX, which guarantees the highest quality of workmanship and reliability in all operating conditions. The main advantage of the detector is the use of an advanced Quad pyroelement, which, combined with full digital signal processing, ensures exceptional intruder detection precision while maintaining stability.
Thanks to the patented Digital Shield technology, the detector effectively distinguishes human movement from typical environmental interference, which drastically reduces the number of false alarms. Another key advantage is the integrated metal shield, which protects sensitive electronics against electromagnetic (EMI) and radio (RFI) interference, which is essential in modern facilities saturated with wireless devices. The detector offers a wide viewing angle of 110 degrees and a detection range of up to 12 meters, which allows for effective protection of large residential or office areas using a minimal number of devices.
Additionally, the digital temperature compensation function makes the detector automatically adjust its sensitivity to changes in ambient temperature, maintaining a constant level of security regardless of the season. The aesthetic, white housing made of high-quality plastic and compact dimensions make the device discreetly blend into the decor of any interior. The product meets rigorous EN 50131 (Grade 2) safety standards, which confirms its suitability for professional alarm installations requiring a high degree of protection. By choosing the DG65+-P2C model, you are investing in proven technology that ensures peace of mind and safety for household members and property for many years.
Specification
Application and Purpose
Internal; dedicated to intrusion and robbery signaling systems in residential and commercial facilities.
Detection Technology
Passive infrared (PIR) using a Quad pyroelement (Quad Sensor).
Optical Parameters
Detection range: 12 x 12 m; Viewing angle: 110 °; Interchangeable Fresnel lenses.
Operating Characteristics
Detectable movement speed: 0.2 ... 3.5 m/s; Alarm signaling time: 3 s; Pre-alarm function: Yes.
Digital Functions
Digital pulse signal processing technology; Digital temperature compensation; Patented motion analysis.
Resistance and Protection
Metal shield protecting against EMI, RFI interference; Digital Shield algorithm; Tamper protection (housing opening).
Outputs and Signaling
Alarm outputs: NC (Normally Closed); Maximum output load: 28 V DC / 100 mA; LED test mode.
Electrical Parameters
Power supply: 9 ... 16 V DC; Maximum current consumption: 15 mA.
Environmental Conditions
Operating temperature: -20 °C ... 50 °C; Environmental class: Class I.
Construction and Mounting
Recommended mounting height: 2.1 ... 2.7 m; Color: White; Plastic housing.
Certification and Standards
Compliance with EN 50131 standard; Grade 2 security class.
Software and Algorithms
The device uses an advanced Digital Shield algorithm, which is the heart of the detector's firmware. This system analyzes signals arriving from the Quad pyroelement in real-time, applying advanced digital filters to distinguish the human thermal signature from background noise. The software also manages the Interlock Sensor Geometry (ISG) function, which optimizes the detection process in difficult conditions. Thanks to digital temperature compensation, the software dynamically corrects sensitivity thresholds, which eliminates errors resulting from room heating. The entire process takes place without analog signal processing, which minimizes noise and quantization errors.
Physical Parameters
Dimensions: 74 x 101 x 56 mm; Weight: 0.096 kg.
Warranty and Origin
Country of origin: Canada; Manufacturer's warranty: 2 years.
Contents
1x PIR Detector DG65+-P2C
1x User manual
1x Set of mounting screws
Dimensions, Weight
Product dimensions: 56 x 74 x 101 mm (D x W x H)
Packaging dimensions: 55 x 105 x 75 mm (D x W x H)
Product weight: 96 g
Weight with packaging: 116 g
