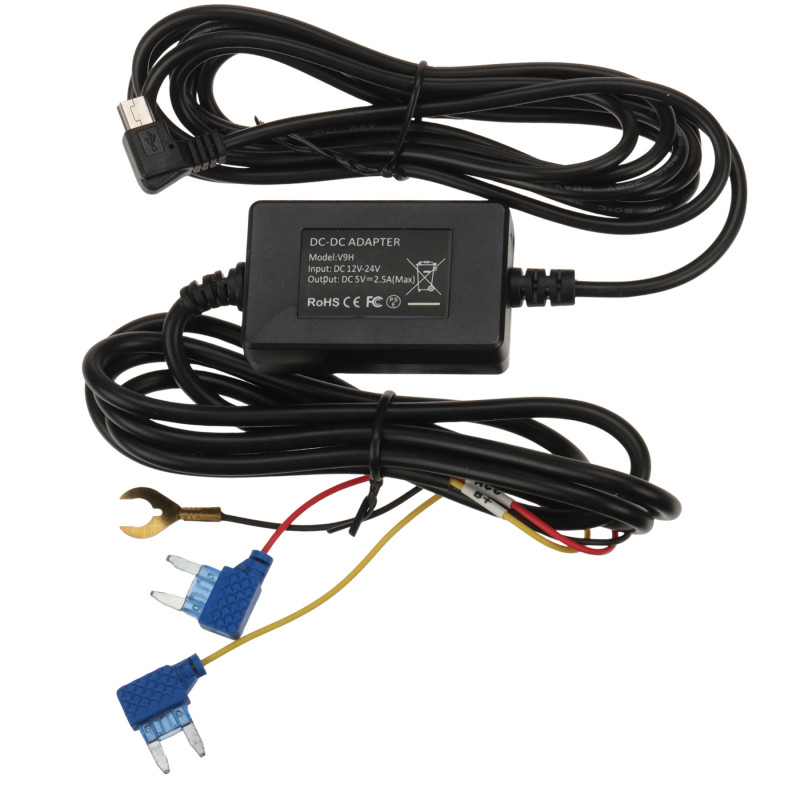

Hardwire Kit mini USB 12V 24V to 5V 2.5A parking mode ACC VCC power supply set

Model: DAHUA DAE-CDL-V9H

EAN: 6931240036570 SKU: 931036577

• Enables constant power supply for the dash cam directly from the vehicle's electrical system
• Supports parking mode via VCC wire (constant power)
• Automatic power switching after engine start (ACC wire)
• Built-in DC/DC step-down converter
• Battery protection against excessive discharge
• Aesthetic installation with cables hidden under the upholstery
• Wide input voltage range 12V - 24V
• Mini USB output connector compatible with many devices
• High output power up to 30W

Description

The DAE-CDL-V9H Hardwire Kit by Dahua is a professional solution that allows for aesthetic and safe powering of a dash cam directly from the vehicle's electrical system. By connecting to the fuse box, the user can completely eliminate visible cables in the cabin and free up the cigarette lighter socket for other devices. This product is essential for those wishing to use advanced vehicle monitoring functions.

The main advantage of the kit is full support for parking mode. The device uses three wires: ACC (activated by the ignition), VCC (constant power from the battery), and ground (GND). This configuration allows the camera to automatically switch to standby mode after the engine is turned off and continue recording if shock or motion is detected, ensuring 24-hour vehicle protection. The power supply has a built-in intelligent battery protection module that monitors the voltage level and cuts off power consumption when it drops below a safe limit, protecting the car from complete battery discharge.

Product advantages:

- Stable voltage conversion from 12V/24V to a safe 5V DC for consumer electronics.

- High output current up to 2.5A, ensuring smooth operation even for the most demanding 4K cameras.

- Universal application in passenger cars, delivery vans, and trucks.

- Very long cables (total 3.15 meters) facilitating installation in any body type.

- Solid housing with compact dimensions, easy to hide under the dashboard.

- Compatibility with a wide range of Dahua recorders, including M3PRO, S6, and S8 models.

Specification

Device type

DC/DC step-down converter, designed for continuous operation in automotive conditions.

Supply voltage

12 V ... 24 V DC (Direct Current). Supports installations in passenger cars and trucks without the need for additional adapters.

Output voltage

5 V DC - stabilized safe voltage for most dash cams and mobile devices.

Output voltage regulation

None (constant voltage, factory-set to 5V for maximum safety of connected equipment).

Output current

Maximum 2.5 A. Allows powering cameras with high power consumption, GPS modules, and LCD screens.

Maximum power

30 W (max). Parameter defining the high energy efficiency of the power supply at full load.

Purpose

Ensuring constant power supply for dash cams, especially required for the correct operation of parking mode.

Weight

0.90 kg (according to the manufacturer's technical data, including the weight of cables and the module).

Module dimensions

55 x 34 x 16 mm. Compact design facilitates installation in tight spaces behind the dashboard.

Output cable

Length 1.90 m, terminated with a mini USB plug. Provides a large range from the installation point to the camera on the windshield.

Input cable

Length 1.25 m. Equipped with a battery connector and 2x fuse tap for easy integration with the installation.

Manufacturer / Brand

DAHUA - global leader in security and video surveillance systems.

Warranty

2 years (24 months) provided by the manufacturer's authorized service.

Compatibility

Recommended for Dahua M3PRO, S6, S8 models and other devices powered by a mini USB port requiring an ACC signal.

Contents

1x DAE-CDL-V9H Hardwire Kit

1x User manual in Polish

1x Warranty card

Dimensions, Weight

Product dimensions: 16 x 55 x 34 mm (D x W x H)

Packaging dimensions: 50 x 160 x 85 mm (D x W x H)

Product weight: 900 g

Weight with packaging: 128 g
