- New

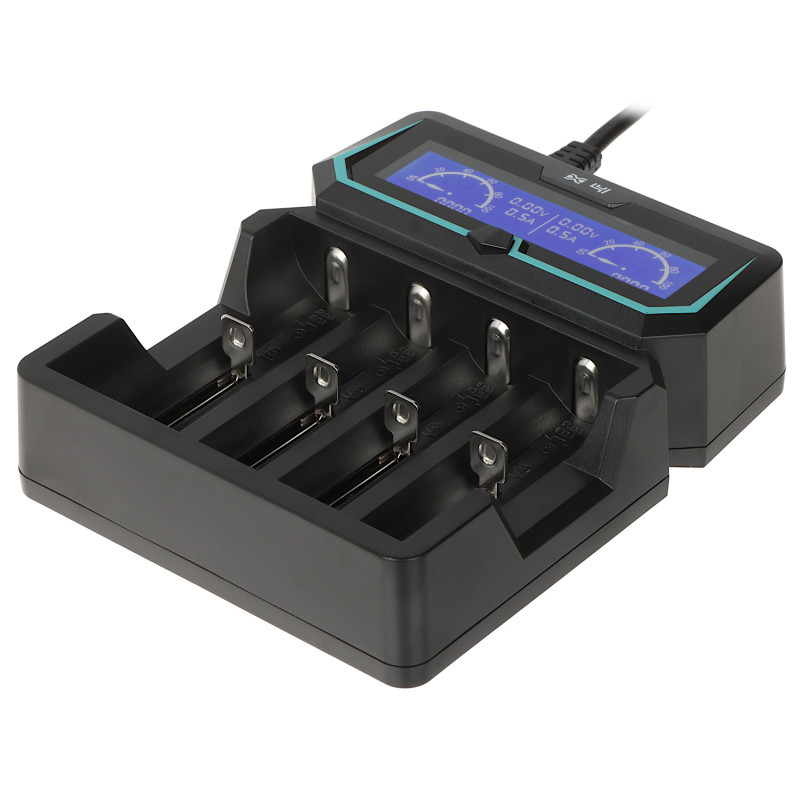

Universal LCD Processor Charger Li-Ion Ni-MH Ni-Cd Power Bank Function 4 Channels Fast Cell Reactivation XTAR BAT-RECHARGE/X4
zł213.28
Tax included
A professional and extremely versatile processor charger is the ideal solution for every user of Li-Ion and Ni-MH/Ni-Cd batteries. This device stands out with its advanced three-stage TC/CC/CV charging technology, which guarantees maximum cell lifespan and full safety during operation. Thanks to four independent channels, the user can simultaneously charge different types and sizes of batteries, which significantly saves time and increases user comfort.
A key advantage of the product is the clear LCD display, which provides precise real-time information about the process: from current cell voltage, through charging current, to the capacity charged into the battery expressed in mAh and the percentage charge level. Additionally, the charger has a unique reactivation function for deeply discharged (0V) cells, which allows bringing back to life batteries that other chargers might consider damaged and unusable.
Another advantage is the Power Bank function, enabling the charging of mobile devices, such as smartphones or tablets, directly from the Li-Ion batteries placed in the charger. The device supports a wide range of sizes, including popular 18650 and modern, protected 20700 and 21700 cells. Solid construction and a series of built-in protections (short-circuit, thermal, overcharge) make it a reliable product. Power can be supplied both directly from the 230V mains and via the Micro USB port, making it an ideal companion for travel and field work.
Universal LCD Processor Charger Li-Ion Ni-MH Ni-Cd Power Bank Function 4 Channels Fast Cell Reactivation
Model: XTAR BAT-RECHARGE/X4
EAN: 6931240073667 SKU: 931073660
- Support for a wide range of Li-Ion and Ni-MH/Ni-Cd batteries
- Clear LCD display with real-time charging parameters
- 0V cell reactivation function (deeply discharged)
- Built-in Power Bank function (5V / 1A)
- Four independent processor-controlled charging channels
- Three-stage TC/CC/CV charging process for Li-Ion cells
- Automatic charging termination upon reaching full voltage
- Comprehensive electronic protection system
- Mains power or Micro USB port power supply
- Support for protected 20700 and 21700 cells
Description
A professional and extremely versatile processor charger is the ideal solution for every user of Li-Ion and Ni-MH/Ni-Cd batteries. This device stands out with its advanced three-stage TC/CC/CV charging technology, which guarantees maximum cell lifespan and full safety during operation. Thanks to four independent channels, the user can simultaneously charge different types and sizes of batteries, which significantly saves time and increases user comfort.
A key advantage of the product is the clear LCD display, which provides precise real-time information about the process: from current cell voltage, through charging current, to the capacity charged into the battery expressed in mAh and the percentage charge level. Additionally, the charger has a unique reactivation function for deeply discharged (0V) cells, which allows bringing back to life batteries that other chargers might consider damaged and unusable.
Another advantage is the Power Bank function, enabling the charging of mobile devices, such as smartphones or tablets, directly from the Li-Ion batteries placed in the charger. The device supports a wide range of sizes, including popular 18650 and modern, protected 20700 and 21700 cells. Solid construction and a series of built-in protections (short-circuit, thermal, overcharge) make it a reliable product. Power can be supplied both directly from the 230V mains and via the Micro USB port, making it an ideal companion for travel and field work.
Specification
Charging technology
Processor-based real-time parameter control with automatic current selection
Li-Ion compatibility
3.6V / 3.7V - ICR, IMR, INR: 14500, 14650, 16340, 17335, 17500, 17670, 18350, 18490, 18500, 18650, 18700, 20700, 21700, 22650, 25500, 26650
Ni-MH/Ni-Cd compatibility
1.2V: AAAA, AAA, AA, A, C
Current parameters
0.5 A for 4 pieces, 1 A for 4 pieces, 2 A for 2 pieces (fast charging)
Display and interface
Backlit LCD screen informing about capacity, voltage, current, and percentage charge status
Advanced features
Reactivation of deeply discharged 0V cells, intelligent battery type identification
Power Bank mode
USB output 5V / 1A; allows powering external devices from energy stored in Li-Ion batteries
Charging algorithms
Three-stage TC/CC/CV process for Li-Ion batteries and constant current CC method for Ni-MH
Channel independence
4 fully autonomous charging slots allowing simultaneous handling of different cells
Cut-off voltages
Precise charging termination: 4.2 V for Li-Ion and 1.45 V for Ni-MH
Protection systems
Short-circuit, overload, overvoltage, and overcharge protection
Polarity protection
Electronic protection against reverse battery connection
Power parameters
AC input: 100V - 240V; DC input: 5V / 2.1A via Micro USB-B socket
Construction and cables
High-quality plastic housing; 120 cm power cord included
Control software
The charger's built-in operating system manages intelligent energy distribution and monitors the chemical parameters of the cells. The charger control software is based on an advanced microprocessor algorithm that intelligently manages the charging process for each of the four channels separately. The system automatically recognizes the type of inserted battery (Li-Ion or Ni-MH) and selects the optimal charging method (TC/CC/CV for lithium or CC for nickel). The software monitors temperature, voltage, and charging time, preventing overheating and overcharging of the cells. Additionally, the user interface on the LCD display is dynamically updated, presenting precise diagnostic data, which allows for full control over the condition of your batteries.
Contents
1x Charger
1x 230V power cord
1x User manual
Dimensions, Weight
Product dimensions: 38 x 118 x 143 mm (D x W x H)
Packaging dimensions: 50 x 225 x 140 mm (D x W x H)
Product weight: 270 g
Weight with packaging: 434 g
