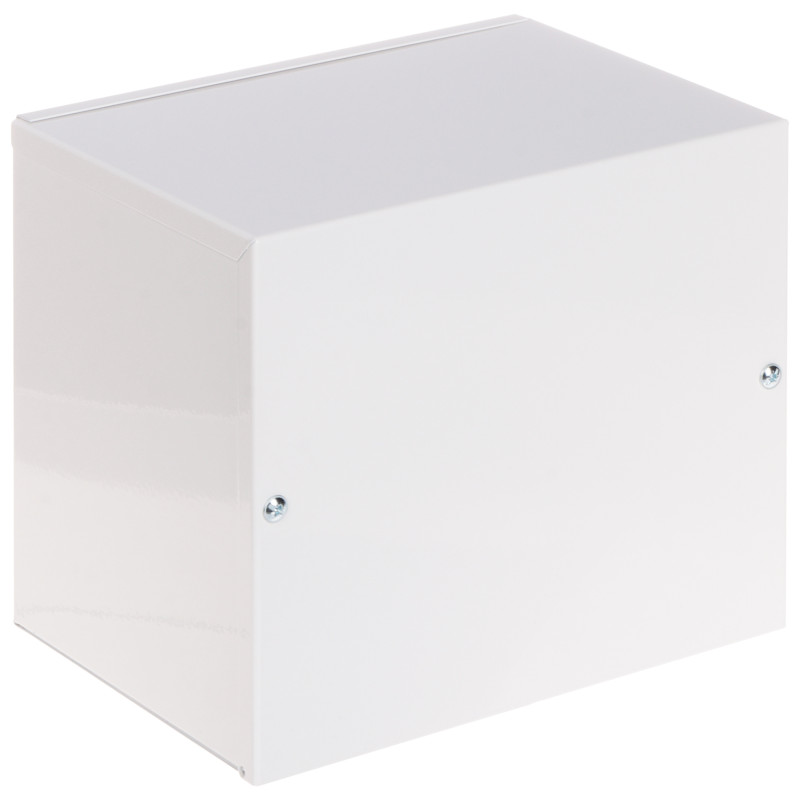

Pulsar white steel metal battery enclosure for alarm and access control systems PULSAR AWO-402
zł179.04
Tax included
The Pulsar AWO-402 battery enclosure is a professional and extremely robust solution designed for the aesthetic and fully secure installation of lead-acid batteries in the immediate vicinity of alarm control panels, buffer power supplies, or access controllers. This product is a key element of professional security systems where reliable emergency power is a priority. The enclosure construction is based on high-grade sheet steel, which guarantees exceptional resistance to mechanical damage and forced entry attempts. The entire unit is coated with a durable white powder lacquer, which not only protects the metal against corrosion but also provides an aesthetic appearance, allowing for installation in visible locations without compromising interior design.
Pulsar white steel metal battery enclosure for alarm and access control systems
Model: PULSAR AWO-402
EAN: 6931240054994 SKU: 931054998
- Battery space: 1x 44Ah / 1x 26Ah / 2x 18Ah / 2x 7Ah
- TAMPER anti-sabotage protection (enclosure opening)
- Made of high-quality powder-coated steel
- Aesthetic white color matching alarm systems
- Solid construction providing mechanical protection
- Easy surface mounting with pre-drilled holes
- Product from the renowned Polish manufacturer Pulsar
Description
The Pulsar AWO-402 battery enclosure is a professional and extremely robust solution designed for the aesthetic and fully secure installation of lead-acid batteries in the immediate vicinity of alarm control panels, buffer power supplies, or access controllers. This product is a key element of professional security systems where reliable emergency power is a priority. The enclosure construction is based on high-grade sheet steel, which guarantees exceptional resistance to mechanical damage and forced entry attempts. The entire unit is coated with a durable white powder lacquer, which not only protects the metal against corrosion but also provides an aesthetic appearance, allowing for installation in visible locations without compromising interior design.
Specification
Purpose
Specialized metal enclosure designed for the secure storage of batteries in intrusion detection, access control, and CCTV systems
Battery compatibility
Wide range of supported capacities: 1 x 44Ah / 12V, 1 x 26Ah / 12V, 2 x 18Ah / 12V or 2 x 7Ah / 12V
Anti-sabotage protection
Built-in TAMPER microswitch (enclosure opening signaling), NC (normally closed) contact, 0.5A @ 30V DC load capacity
Construction material
DC01 sheet steel, 0.7mm thickness, anti-corrosion protection via phosphating process
Protective coating
High-quality polyester powder lacquer, resistant to UV radiation and scratches
Color scheme
White RAL 9003, matte finish for easy maintenance
Ingress protection class
IP20 - designed for indoor installation in dry rooms
Operating conditions
Temperature range from -10°C to +40°C, relative humidity up to 90% without condensation
Closing method
Front-mounted screw-fixed door, ensuring structural stability and rigidity
Mechanical installation
Surface mounting using expansion bolts, four mounting points on the rear
Cable entries
Knock-out holes in the rear panel and side elements for easy cable management
Wall distance
Design includes 8mm wall clearance for improved air circulation
Compliance and certificates
Product holds CE declaration, RoHS compliance, and safety requirements for electrical enclosures
Warranty and durability
24-month manufacturer warranty, expected service life over 10 years
Mechanical parameters
Dimensions: 200 x 175 x 234 mm, Net weight: 2.03 kg, Gross weight: 2.205 kg
Contents
1x Pulsar AWO-402 metal enclosure
1x Anti-sabotage microswitch with wires
1x Set of screws for enclosure assembly
1x Installation manual
Dimensions, Weight
Product dimensions: 234 x 200 x 175 mm (D x W x H)
Packaging dimensions: 195 x 240 x 210 mm (D x W x H)
Product weight: 2030 g
Weight with packaging: 2205 g
