- New

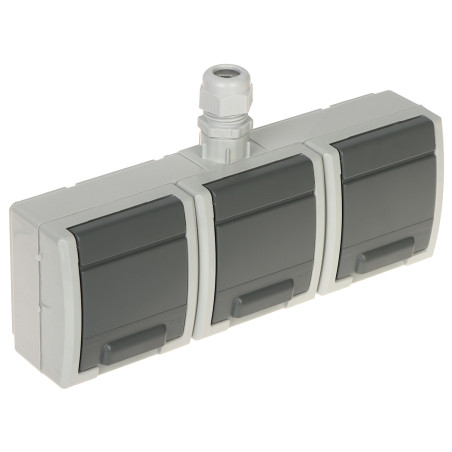

Triple Surface Mounted Hermetic Socket IP65 with Earthing and Shutter Grey RAL7035 Durable Outdoor Elektro-Plast AQUANT-G3/EPN
zł171.23
Tax included
The AQUANT-G3/EPN triple surface-mounted socket is a high-quality electrical installation accessory designed for operation in the most demanding environmental conditions. Thanks to its IP65 protection rating, the device is completely protected against dust ingress and water jets, making it an ideal solution for outdoor installation, in garages, workshops, production halls, and basements.
The product is characterized by exceptional durability and resistance to UV radiation, which prevents the housing from becoming brittle or discolored under the influence of sunlight. The socket features earthing and current path shutters, which significantly increase the level of operational safety by protecting against accidental contact with live parts, which is particularly important in areas accessible to children.
The socket construction is based on solid screw terminals, guaranteeing a secure and durable connection of electrical wires. An additional advantage is the integrated protection in the form of movable rubber cable glands, which facilitate cable entry while maintaining full hermeticity. The aesthetic grey finish (RAL7035) allows the product to blend discreetly with facades and industrial walls.
By choosing this model, you gain the certainty of reliability confirmed by compliance with the PN-EN-60669-1:2006 standard and high mechanical resistance at the IK07 level. It is the perfect choice for those looking for durable and safe solutions for electrical installations in demanding environments.
Triple Surface Mounted Hermetic Socket IP65 with Earthing and Shutter Grey RAL7035 Durable Outdoor
Model: Elektro-Plast AQUANT-G3/EPN
EAN: 6931240046265 SKU: 931046262
- High IP65 protection rating ensuring protection against water and dust
- Triple type E socket configuration (with earthing pin)
- Built-in current path shutters increasing safety
- UV resistance preventing material aging
- Robust housing with IK07 mechanical resistance class
- Integrated movable rubber cable glands for easy installation
- Compliance with the rigorous PN-EN-60669-1:2006 standard
- Aesthetic grey color RAL7035 matching facades
Description
The AQUANT-G3/EPN triple surface-mounted socket is a high-quality electrical installation accessory designed for operation in the most demanding environmental conditions. Thanks to its IP65 protection rating, the device is completely protected against dust ingress and water jets, making it an ideal solution for outdoor installation, in garages, workshops, production halls, and basements.
The product is characterized by exceptional durability and resistance to UV radiation, which prevents the housing from becoming brittle or discolored under the influence of sunlight. The socket features earthing and current path shutters, which significantly increase the level of operational safety by protecting against accidental contact with live parts, which is particularly important in areas accessible to children.
The socket construction is based on solid screw terminals, guaranteeing a secure and durable connection of electrical wires. An additional advantage is the integrated protection in the form of movable rubber cable glands, which facilitate cable entry while maintaining full hermeticity. The aesthetic grey finish (RAL7035) allows the product to blend discreetly with facades and industrial walls.
By choosing this model, you gain the certainty of reliability confirmed by compliance with the PN-EN-60669-1:2006 standard and high mechanical resistance at the IK07 level. It is the perfect choice for those looking for durable and safe solutions for electrical installations in demanding environments.
Specification
Rated voltage
230 V AC 50Hz - Standard operating voltage in European power grids, ensuring full compatibility with household and industrial appliances.
Maximum current capacity
16 A - High rated current allows for safe powering of high-power receivers without the risk of overheating the socket contacts.
Type and number of sockets
3 x CEE 7/5 (Type E) - Triple socket configuration with an earthing pin in a horizontal layout, allowing for optimal use of mounting space.
Protection rating
IP65 - Full dust-tight protection and protection against water jets sprayed onto the enclosure from any direction. Guarantees reliability in harsh conditions.
Mechanical resistance class
IK07 - High resistance to mechanical impacts with an energy of 2J, which protects the socket against accidental damage in workshops or garages.
Material
High-quality UV-resistant plastic - A special polymer blend prevents aging and material brittleness processes.
Color scheme
Grey RAL7035 - A universal, industrial color that perfectly masks dirt and matches most building facades.
Terminal type
Solid screw terminals - Provide the most secure type of electrical connection, minimizing contact resistance.
Safety
Current path shutters - Built-in safety mechanism that prevents the insertion of objects other than a standard plug into the socket.
Earthing
Yes - Each of the three sockets is equipped with an earthing pin, which is essential for user protection against electric shock.
Cable gland system
Movable rubber cable glands - An innovative solution integrated with the base of the housing, which allows for easy and tight cable entry.
Mounting
Surface mounted - Installation is performed using mounting screws, allowing for quick assembly on various surfaces.
Compliance with standards
PN-EN-60669-1:2006 - The product has been tested and certified in accordance with European safety standards for installation switches.
Application
Ideal for gardens, gazebos, terraces, car washes, warehouse halls, and workshops requiring high moisture resistance.
Software
N/A - The device is a passive electrical installation component and does not have built-in software, a mobile application, or a digital interface. Control is performed solely by physically connecting or disconnecting the power plug.
Contents
1x Triple surface-mounted socket AQUANT-G3/EPN
1x Set of seals and rubber cable glands
Dimensions, Weight
Product dimensions: 56 x 230 x 81 mm (Depth x Width x Height)
Packaging dimensions: 65 x 240 x 90 mm (Depth x Width x Height)
Product weight: 410 g
Weight with packaging: 450 g
