- New

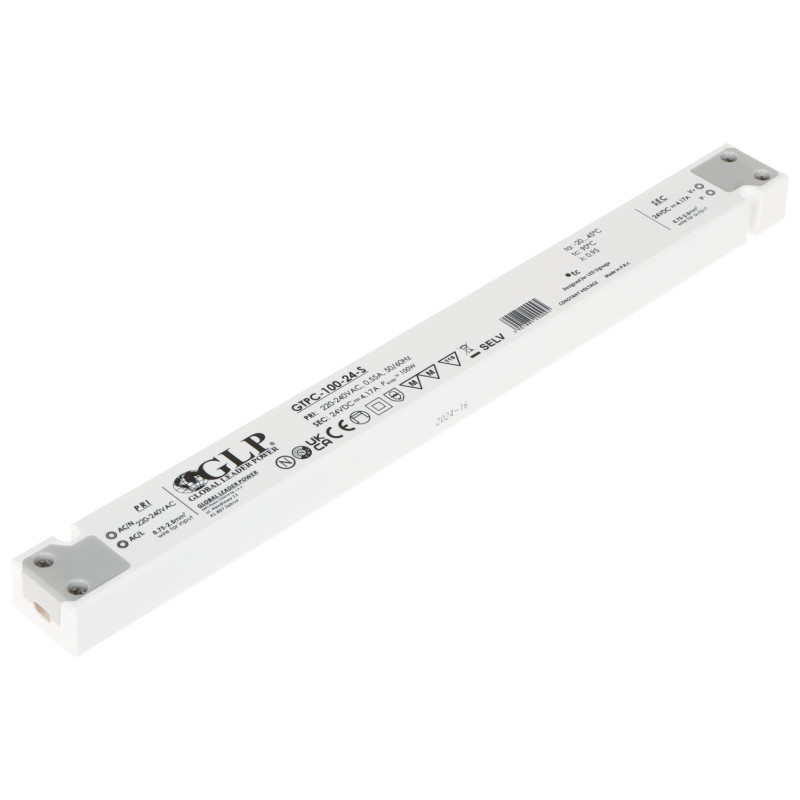

Flat furniture switching power supply 24V DC 4.17A 100W LED Slim GLP 24V/4.17A-GTPCS
zł151.92
Tax included
The GTPCS series switching power supply is an advanced energy solution designed for lighting and electronic systems where limited mounting space is a key factor. Thanks to its unique, ultra-flat Slim design, this device is widely used in the modern furniture industry, advertising structures, and wherever aesthetics and discreet installation are a priority.The main advantage of the power supply is its high efficiency and full compliance with rigorous European standards, such as EN 55015, EN 62493, EN 61547, and harmonic emission standards EN 61000-3-2 and EN 61000-3-3. This guarantees not only operational safety but also minimal impact on other electronic devices operating on the same network.The product features a stable 24V DC output voltage and a current capacity of 4.17A, which translates to 100W of total power. The housing, made of high-quality plastic, provides adequate insulation and durability. The power supply is equipped with a range of protections: overload, short-circuit, and overvoltage, which protects both the device itself and the connected loads.It is worth noting that the power supply is adapted for mounting on walls or other flat surfaces, which significantly facilitates the installation process. When planning systems operating in continuous mode (24/7), it is recommended that the load does not exceed 80% of the maximum current, which significantly extends the life of the components. It is also important to ensure free air circulation for optimal cooling of the unit during intensive operation. This is a reliable power source that combines compact dimensions with professional technical parameters.
Flat furniture switching power supply 24V DC 4.17A 100W LED Slim
Model: GLP 24V/4.17A-GTPCS
EAN: 6931240081303 SKU: 931081303
- Ultra-flat Slim housing ideal for furniture
- High output power 100W at 24V DC voltage
- Full compliance with safety and EMC standards
- Integrated short-circuit and overload protection
- Direct wall mounting capability
- Wide AC input voltage range
- High-quality plastic construction
Description
The GTPCS series switching power supply is an advanced energy solution designed for lighting and electronic systems where limited mounting space is a key factor. Thanks to its unique, ultra-flat Slim design, this device is widely used in the modern furniture industry, advertising structures, and wherever aesthetics and discreet installation are a priority.
The main advantage of the power supply is its high efficiency and full compliance with rigorous European standards, such as EN 55015, EN 62493, EN 61547, and harmonic emission standards EN 61000-3-2 and EN 61000-3-3. This guarantees not only operational safety but also minimal impact on other electronic devices operating on the same network.The product features a stable 24V DC output voltage and a current capacity of 4.17A, which translates to 100W of total power. The housing, made of high-quality plastic, provides adequate insulation and durability. The power supply is equipped with a range of protections: overload, short-circuit, and overvoltage, which protects both the device itself and the connected loads.It is worth noting that the power supply is adapted for mounting on walls or other flat surfaces, which significantly facilitates the installation process. When planning systems operating in continuous mode (24/7), it is recommended that the load does not exceed 80% of the maximum current, which significantly extends the life of the components. It is also important to ensure free air circulation for optimal cooling of the unit during intensive operation. This is a reliable power source that combines compact dimensions with professional technical parameters.Specification
Type of power supply
Switching - high-efficiency DC voltage converter
Supply voltage
180 V ... 264 V AC - alternating current
Frequency range
50 Hz / 60 Hz
Output voltage
24 V DC - stabilized DC voltage
Current efficiency
4.17 A - maximum output current
Power supply power
100 W - rated power
Number of outputs
1 piece
Overload protection
Yes - automatic power limitation during excessive consumption
Short-circuit protection
Yes - protection against damage in case of short circuit
Overvoltage protection
Yes - protection of receivers against voltage spikes
Housing type
Plastic - flat Slim construction
Operating temperature
-20 °C ... 45 °C
Selected features
Housing adapted for wall mounting, compliance with EN 55015, EN 62493, EN 61547, EN 61000-3-3, EN 61000-3-2
Cooling
Convection - free space required for air circulation
Warranty
2 years (24 months)
Software
The device uses an advanced pulse-width modulation (PWM) control system that continuously monitors output parameters. Built-in feedback logic allows for instantaneous voltage correction depending on the load, which ensures stable operation of LED diodes and prevents flickering. Protection systems operate autonomously, cutting off power in milliseconds after detecting a short circuit or overload, which provides an intelligent protective barrier for the entire electrical installation.
Contents
1x Switching power supply 24V/4.17A-GTPCS
1x Installer manual
Dimensions, Weight
Product dimensions: 18 x 320 x 30 mm (D x W x H)
Package dimensions: 20 x 320 x 35 mm (D x W x H)
Product weight: 180 g
Weight with packaging: 190 g
