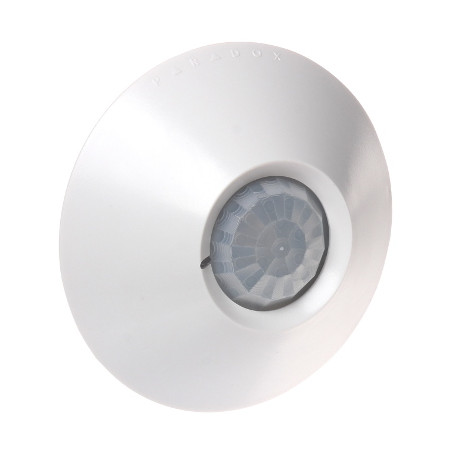

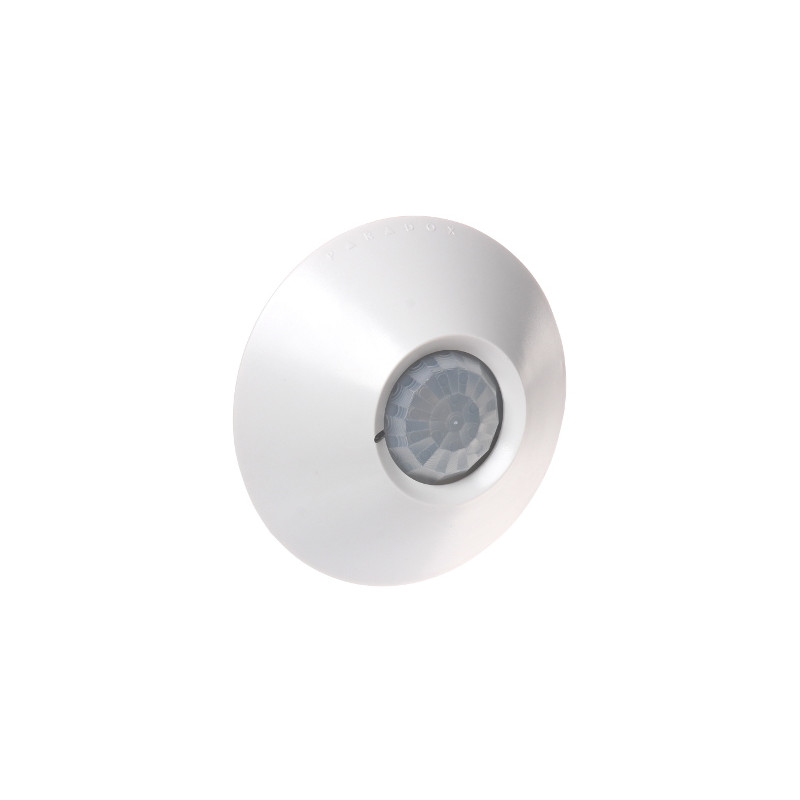

360 degree ceiling PIR detector for alarm systems PARADOX DG467-P2C
zł244.28
Tax included
The DG467-P2C ceiling PIR detector is an advanced detection device designed for professional alarm systems. Thanks to its design intended for ceiling mounting, it offers full 360-degree area coverage, making it an ideal solution for protecting open-plan rooms, offices, or corridors. The heart of the detector is a high-class dual pyroelectric element, which, combined with patented motion analysis technology, ensures extremely precise detection while minimizing the risk of false alarms.
The device is distinguished by installation flexibility, offering two operating modes: as an independent addressable detector in Digiplex and Digiplex EVO systems or as a classic relay detector compatible with most alarm control panels available on the market. The applied Digital Shield algorithm actively monitors temperature changes in the field of view, which allows for effective intruder detection even in difficult environmental conditions. A solid housing, tamper protection, and digital temperature compensation guarantee the reliability and long service life of the device. It is a product valued by installers for its ease of configuration, operational stability, and high build quality, confirmed by the Canadian manufacturer.
360 degree ceiling PIR detector for alarm systems
Model: PARADOX DG467-P2C
EAN: 6931240033241 SKU: 931033244
- 360 degree detection angle
- Dual opposed detection element
- Patented motion analysis (no analog signal processing)
- Two operating modes: addressable (Digiplex/EVO) or relay
- Digital Shield algorithm reducing false alarms
- Tamper protection
- Digital temperature compensation
Description
The DG467-P2C ceiling PIR detector is an advanced detection device designed for professional alarm systems. Thanks to its design intended for ceiling mounting, it offers full 360-degree area coverage, making it an ideal solution for protecting open-plan rooms, offices, or corridors. The heart of the detector is a high-class dual pyroelectric element, which, combined with patented motion analysis technology, ensures extremely precise detection while minimizing the risk of false alarms.
The device is distinguished by installation flexibility, offering two operating modes: as an independent addressable detector in Digiplex and Digiplex EVO systems or as a classic relay detector compatible with most alarm control panels available on the market. The applied Digital Shield algorithm actively monitors temperature changes in the field of view, which allows for effective intruder detection even in difficult environmental conditions. A solid housing, tamper protection, and digital temperature compensation guarantee the reliability and long service life of the device. It is a product valued by installers for its ease of configuration, operational stability, and high build quality, confirmed by the Canadian manufacturer.
Specification
Application
Indoor
Pyroelement
Dual
Sensor type
Passive Infrared (PIR)
Range
7 x 6 m from 2.4 m height, 11 x 6 m from 3.7 m height
Detection angle
360 degrees
Recommended mounting height
2.2 m ... 4 m
Alarm outputs
NC (Normally Closed)
Maximum output load
28 V DC / 150 mA
Detectable motion speed
0.2 ... 3.5 m/s
Digital temperature compensation
Yes
Power supply
9 V ... 16 V DC
Maximum current consumption
29 mA
Operating temperature
-20 degrees C ... 50 degrees C
Software and operating modes
The detector has a built-in advanced Digital Shield algorithm, which is responsible for digital signal analysis without the need for analog processing. Thanks to this, the device is able to distinguish a real intrusion from environmental interference. The device supports two operating modes: 1. Addressable mode – dedicated to the detector bus in Paradox Digiplex and Digiplex EVO systems, which allows for full integration with the control panel, remote diagnostics, and parameter configuration from the keypad or control panel software. 2. Conventional mode – operation as a standard relay detector (NC), which allows it to be connected to any alarm control panel from other manufacturers. The built-in test mode makes it easier for the installer to correctly set the sensitivity and range during installation.
Contents
1x PIR detector DG467-P2C
1x User manual
Dimensions, Weight
Product dimensions: 107 x 107 x 34 mm (D x W x H)
Packaging dimensions: 110 x 125 x 40 mm (D x W x H)
Product weight: 76 g
Weight with packaging: 106 g
