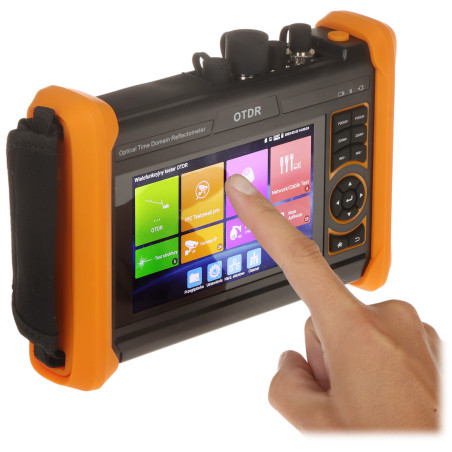

Optical Time Domain Reflectometer OTDR with 4K AHD CVI TVI IP CCTV camera tester CS-R3-50H
zł2,654.83
Tax included
The CS-R3-50H Optical Time Domain Reflectometer (OTDR) is an advanced, multifunctional tool designed for professional installers of CCTV monitoring systems and fiber optic networks. The device combines the functions of an optical reflectometer with a camera tester for AHD, HD-CVI, HD-TVI, and IP standards, making it indispensable in daily work for commissioning and servicing installations. By integrating multiple tools into one compact housing, the installer gains significant savings in time and space in the tool bag. The device is equipped with a clear, 5.4-inch Retina touchscreen with high resolution, which ensures comfortable operation of the graphical menu and precise image preview from the tested cameras.
The advantages of the device include a wide measurement range of the reflectometer (up to 105 km), a built-in visual fault locator (VFL), and an optical power multimeter. The tester supports modern 4K video standards, enabling full diagnostics of high-resolution systems. Additionally, the device offers advanced network functions such as an IP address scanner, PING link testing, LAN port monitoring, and cooperation with PoE cameras. The built-in Android 9 system allows for the installation of additional applications, and the Quickoffice suite enables document editing directly in the field. The whole unit is powered by an efficient Li-Ion battery, providing up to 10 hours of operation, which is crucial during long-term service work. The device is delivered in a handy bag, which facilitates transport and protection of the equipment.
Optical Time Domain Reflectometer OTDR with 4K AHD CVI TVI IP CCTV camera tester
Model: CS-R3-50H
EAN: 6931240023709 SKU: 931023707
- Integrated Optical Time Domain Reflectometer (OTDR) 1310/1550 nm
- Support for AHD, HD-CVI, HD-TVI cameras up to 8 Mpx and IP 4K
- 5.4-inch Retina touchscreen 1920x1152 px
- Built-in Visual Fault Locator (VFL) 10 mW
- Optical power measurement in fiber optic networks
- Testing of UTP twisted pair and telephone lines
- Compatibility with PoE cameras and switches
- Android 9 operating system with mobile app support
- Built-in web browser and VLC player
- Generation of measurement reports in PDF/Excel
Description
The CS-R3-50H Optical Time Domain Reflectometer (OTDR) is an advanced, multifunctional tool designed for professional installers of CCTV monitoring systems and fiber optic networks. The device combines the functions of an optical reflectometer with a camera tester for AHD, HD-CVI, HD-TVI, and IP standards, making it indispensable in daily work for commissioning and servicing installations. By integrating multiple tools into one compact housing, the installer gains significant savings in time and space in the tool bag. The device is equipped with a clear, 5.4-inch Retina touchscreen with high resolution, which ensures comfortable operation of the graphical menu and precise image preview from the tested cameras.
The advantages of the device include a wide measurement range of the reflectometer (up to 105 km), a built-in visual fault locator (VFL), and an optical power multimeter. The tester supports modern 4K video standards, enabling full diagnostics of high-resolution systems. Additionally, the device offers advanced network functions such as an IP address scanner, PING link testing, LAN port monitoring, and cooperation with PoE cameras. The built-in Android 9 system allows for the installation of additional applications, and the Quickoffice suite enables document editing directly in the field. The whole unit is powered by an efficient Li-Ion battery, providing up to 10 hours of operation, which is crucial during long-term service work. The device is delivered in a handy bag, which facilitates transport and protection of the equipment.
Specification
Optical Time Domain Reflectometer (OTDR)
Wavelength: 1310 nm / 1550 nm; Dynamic range: 28/26 dB; Range: up to 105 km; Connectors: SC; Measurement time: 5s - 3min.
Optical power measurement
Wavelengths: 850, 1300, 1310, 1490, 1550, 1625 nm; Range: -70 to +10 dBm; Adapters: ST, SC.
VLS (VFL)
LD laser, 650 nm, 10 mW, range 8 km.
Video standards
AHD, HD-CVI, HD-TVI (up to 8 Mpx), TCP/IP (4K), CVBS (PAL/NTSC).
Display
5.4" Retina, capacitive touchscreen, 1920 x 1152 px.
Video interfaces
BNC input (AHD/CVI/TVI/CVBS), HDMI (4K 60fps), VGA.
Network ports
2x LAN, support for PoE cameras and switches.
Control protocols
Over 30 RS485 protocols (Pelco-D/P, Hikvision, Samsung, Panasonic, etc.).
Software and applications
The device runs on the Android 9 system. It has built-in tools for testing IP cameras (Hik test tool, DH test tool, UNV Test Tool, BitVision, DMSS, Hik-Connect, DoLynk Care, TP-LINK Tether, Virtual IPC, Multiple Preview, Onvif, Non Onvif, XM Test Tool, VIVOTEK tool, EZView). The installed VLC Media Player allows for playing multimedia files (.mp3, .mp4, .avi, .mpeg). The Quickoffice suite allows for creating and editing .docx, .xlsx documents and .pptx presentations. The device has a built-in Google Chrome browser, a calculator, and a function for generating OTDR measurement reports directly to Excel or PDF files.
Output power
5V DC/2A (USB), 12V DC/3A, 24V DC/2A, 48V PoE (24W).
Battery power
Li-Ion 5200 mAh battery, operating time up to 10h.
Operating temperature
-10 °C to 50 °C.
Dimensions
212 x 148 x 49 mm.
Weight
0.87 kg.
Contents
1x CS-R3-50H Tester
1x Power adapter
1x Carrying bag
Measurement accessories
Dimensions, Weight
Product dimensions: 49 x 212 x 148 mm (D x W x H)
Package dimensions: 100 x 320 x 290 mm (D x W x H)
Product weight: 870 g
Weight with packaging: 2124 g
