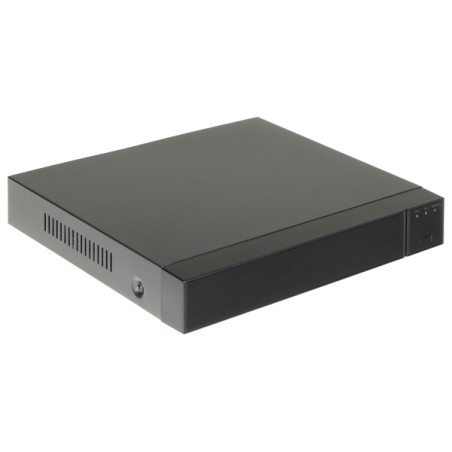

8-channel hybrid recorder AHD, HD-CVI, HD-TVI, CVBS, IP APTI APTI-XB0801H-S35
zł521.52
Tax included
The APTI-XB0801H-S35 digital recorder is an advanced, 8-channel hybrid device designed for professional video surveillance installations. Thanks to support for multiple signal transmission standards, such as AHD, HD-CVI, HD-TVI, CVBS, and IP, this recorder is an extremely flexible solution that allows for the integration of various types of cameras within a single security system. The device was created for users seeking reliability and ease of use. The recorder's menu has been designed intuitively, allowing for quick parameter configuration even for those without prior experience in operating CCTV systems. The recorder supports modern image compression methods, including H.265+, which allows for significant hard drive space savings while maintaining high recording quality. The device offers advanced network functions, enabling remote live view, playback of recordings, and data archiving via a web browser or dedicated software. Thanks to P2P cloud support, the user has the ability to quickly access the system from anywhere in the world using a smartphone or tablet. A solid construction, NDAA certificate, and support for a wide range of resolutions make the APTI-XB0801H-S35 an ideal choice for both small home systems and more extensive commercial installations.
8-channel hybrid recorder AHD, HD-CVI, HD-TVI, CVBS, IP
Model: APTI APTI-XB0801H-S35
EAN: 6931240020883 SKU: 931020886
- Support for 8 video channels in various standards (AHD, CVI, TVI, CVBS, IP)
- Advanced image compression H.265+ / H.265 / H.264+ / H.264
- Support for SATA hard drives up to 8 TB
- Remote access via cloud (P2P) and mobile applications BitVision / iVMS320
- Intuitive menu in Polish
- Support for motion detection and recording schedules
- Video outputs HDMI, VGA and CVBS
- NDAA certificate
Description
The APTI-XB0801H-S35 digital recorder is an advanced, 8-channel hybrid device designed for professional video surveillance installations. Thanks to support for multiple signal transmission standards, such as AHD, HD-CVI, HD-TVI, CVBS, and IP, this recorder is an extremely flexible solution that allows for the integration of various types of cameras within a single security system. The device was created for users seeking reliability and ease of use. The recorder's menu has been designed intuitively, allowing for quick parameter configuration even for those without prior experience in operating CCTV systems. The recorder supports modern image compression methods, including H.265+, which allows for significant hard drive space savings while maintaining high recording quality. The device offers advanced network functions, enabling remote live view, playback of recordings, and data archiving via a web browser or dedicated software. Thanks to P2P cloud support, the user has the ability to quickly access the system from anywhere in the world using a smartphone or tablet. A solid construction, NDAA certificate, and support for a wide range of resolutions make the APTI-XB0801H-S35 an ideal choice for both small home systems and more extensive commercial installations.
Specification
Standard
AHD, HD-CVI, HD-TVI, PAL, TCP/IP
Video inputs
8 pcs. BNC - AHD / HD-CVI / HD-TVI / CVBS
Video outputs
1x HDMI, 1x VGA, 1x Composite Video (CVBS) - BNC socket
Audio Inputs/Outputs
1x CINCH input, 8x audio via coaxial cable; 1x CINCH output
Compression method
H.265+ / H.265 / H.264+ / H.264
Supported drives
1x SATA up to 8 TB
Software
The device works with BitVision and iVMS320 applications (Android/iOS). The software enables full system management: live view from multiple cameras simultaneously, remote playback of recordings from the disk, advanced configuration of recorder parameters, motion detection management, and remote archiving of recordings to mobile devices. The applications support access via P2P cloud, which eliminates the need for a public IP address. The interface is clear and optimized for quick access to the most important security functions.
Network functions
iVMS320 program (live view, playback, archiving), IE browser (full configuration)
Mobile access
Port 6000 or P2P; Applications: BitVision, iVMS320
Alarm Inputs/Outputs
4 / 2
PTZ control
Pelco-D, Pelco-P
Motion detection
Screen division into zones: 22 x 18 detection fields
Power supply
12V DC / 2A (power adapter included)
Certificates
NDAA certificate
Contents
1x Recorder APTI-XB0801H-S35
1x Power adapter 12V/2A
1x User manual
Dimensions, Weight
Product dimensions: 242 x 260 x 45 mm (Depth x Width x Height)
Packaging dimensions: 300 x 300 x 100 mm (Depth x Width x Height)
Product weight: 770 g
Weight with packaging: 1200 g
