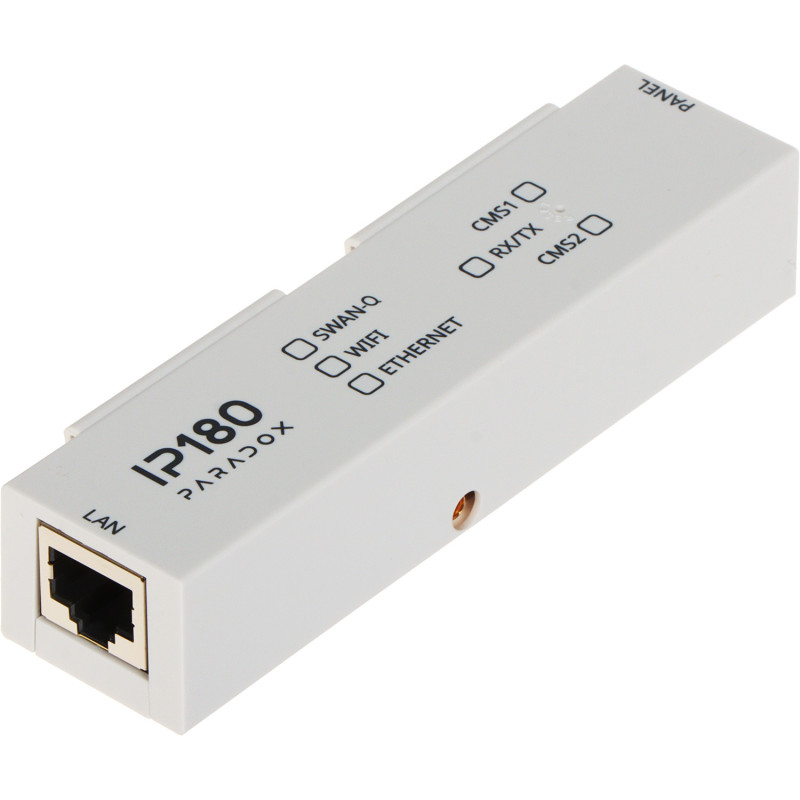

Paradox IP180-IPW Ethernet communication module for alarm systems

Model: PARADOX IP180-IPW

EAN: 6931240022948 SKU: 931022946

• Compatibility with Digiplex EVO+, Spectra SP+, Magellan MG+ control panels
• Ethernet 10/100 Mbps and 2.4 GHz WiFi connectivity
• Support for BlueEye mobile app and BabyWare software
• Utilizes stable MQTT communication protocol
• P2P connection support and integration with SWAN server
• Push notifications and e-mail with AES 128-bit encryption
• Remote partition management and zone status monitoring
• Remote module firmware update

Description

The IP180-IPW Ethernet module is an advanced device dedicated for use in professional Paradox intrusion and alarm signaling systems. This device allows for full management of the alarm system via the Internet using any web browser or a dedicated mobile application. It is the direct successor to the popular IP-150+ model, offering even greater stability and modern communication features.

The module is designed to work with Digiplex EVO, Spectra SP, and Magellan MG series alarm control panels. Thanks to built-in WiFi support, the module installation is extremely simple and does not require additional network cabling, which significantly reduces costs and installation time. The device uses the modern MQTT communication protocol, which is characterized by high stability and reliability, making it an ideal solution for telemetry systems and advanced IoT building automation.

The advantages of the device include full support for the BlueEye mobile application, which allows users to remotely arm and disarm partitions, view zone status, and receive push notifications about system events. The module also supports advanced e-mail encryption (AES 128-bit) and integration with the SWAN server, which ensures secure P2P communication. Thanks to the remote firmware update capability, the module is a future-proof solution that can be easily adapted to changing system requirements.

Specification

Interface

Ethernet 10/100 Mbps port, 2.4 GHz IEEE 802.11 b/g/n WiFi (external antenna with SMA connector), 4-pin port.

Compatibility

Compatibility with Digiplex EVO HD+, Spectra SP+, Magellan MG+ control panels (manufactured after 2012).

Management

Remote management via BlueEye app, BabyWare 5.6.28 software, Infield 5.6.22.

Software and Applications

The module works with the BlueEye mobile application, which serves as the alarm system management center. The application allows for full control over the system: arming and disarming partitions, real-time monitoring of all zone statuses, and receiving instant push notifications about any violations or system events. Additionally, the module integrates with installer software BabyWare (version 5.6.28 and newer) and Infield (version 5.6.22 and newer), which enables advanced configuration, diagnostics, and remote firmware updates. Thanks to MQTT protocol support, the module ensures stable communication in IoT environments, and integration with the SWAN server allows for easy setup of secure P2P connections without complex network configuration.

Protocols and Reporting

Compliance with MQTT protocol, reporting to monitoring stations (to Paradox IPC10 device), supported formats: MLR2-DG, Ademco 685.

Notifications

Automatic event notifications via e-mail (AES 128-bit encryption) and push messages in the BlueEye app.

System functions

Display of all zone and partition statuses, remote arming/disarming, remote firmware update.

Power supply

10 - 16.5V DC (powered from the alarm control panel via serial bus).

Current consumption

Maximum 100 mA.

Manufacturer / Brand

PARADOX

Warranty

2 years

Contents

1x IP180-IPW communication module

1x WiFi antenna

Dimensions, Weight

Product dimensions: 22 x 109 x 30 mm (D x W x H)

Package dimensions: 35 x 110 x 50 mm (D x W x H)

Product weight: 40 g

Weight with packaging: 76 g
