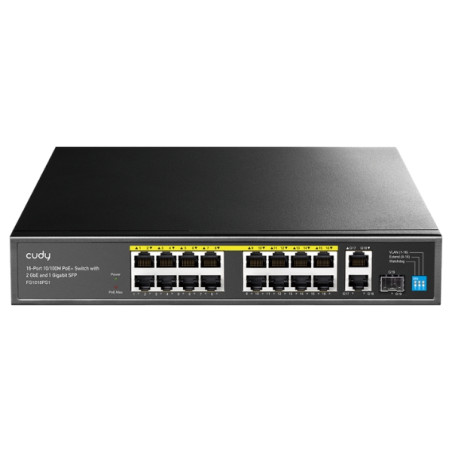

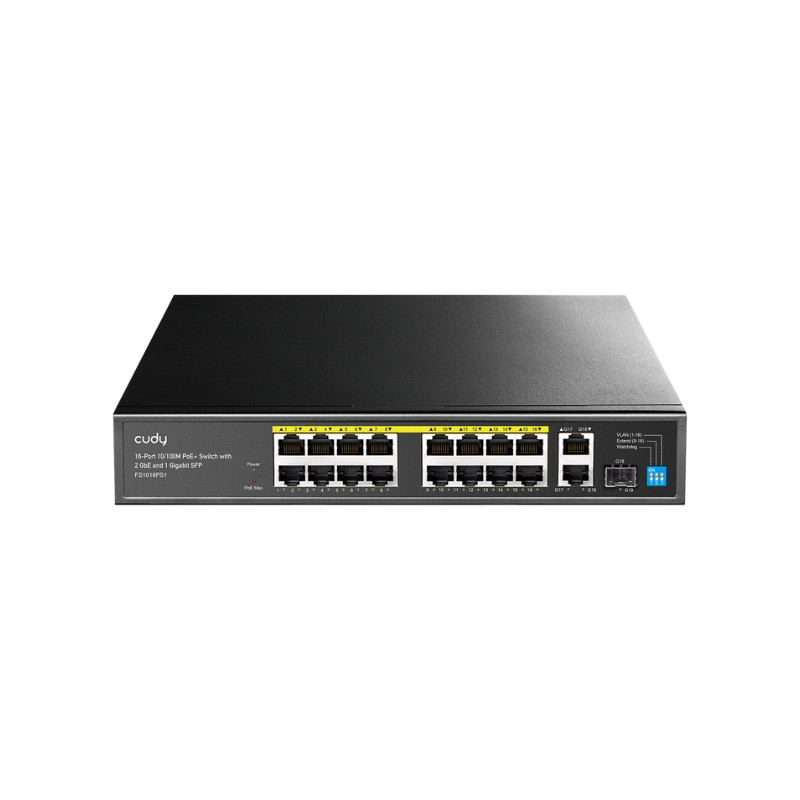

16-port PoE switch with 1x SFP and 2x RJ45 Uplink CUDY FS1018PS1
zł370.23
Tax included
The 16-port PoE switch FS1018PS1 is an advanced network device designed for professional IP CCTV monitoring installations. Thanks to its high reliability and support for PoE standards (802.3af/at), this switch allows for simultaneous data transmission and power supply to IP cameras, which significantly simplifies cable infrastructure and reduces installation costs. The device is equipped with 16 PoE-enabled LAN ports, 2 RJ45 Uplink ports, and 1 SFP port, providing great flexibility in backbone network configuration.
A key advantage of the FS1018PS1 model is the EXTEND mode, which enables data and power transmission over a distance of up to 250 meters on ports 9-16, which is invaluable for extensive monitoring systems. Additionally, the switch offers a Watchdog function that automatically monitors the status of connected devices and restarts PoE power if necessary, ensuring system continuity. The robust, metal Desktop/RACK housing guarantees durability and effective heat dissipation. The device features built-in surge protection and electrostatic discharge protection, increasing operational safety in difficult conditions. It is an ideal solution for installers looking for stable and efficient equipment for building modern IP networks.
16-port PoE switch with 1x SFP and 2x RJ45 Uplink
Model: CUDY FS1018PS1
EAN: 6931240020616 SKU: 931020616
- 16 PoE ports (802.3af/at)
- 2 RJ45 Uplink ports + 1 SFP port
- EXTEND mode (range up to 250m for ports 9-16)
- Watchdog function for automatic camera restart
- Switching capacity 9.2 Gb/s
- Surge and ESD protection
- Metal Desktop/RACK housing
Description
The 16-port PoE switch FS1018PS1 is an advanced network device designed for professional IP CCTV monitoring installations. Thanks to its high reliability and support for PoE standards (802.3af/at), this switch allows for simultaneous data transmission and power supply to IP cameras, which significantly simplifies cable infrastructure and reduces installation costs. The device is equipped with 16 PoE-enabled LAN ports, 2 RJ45 Uplink ports, and 1 SFP port, providing great flexibility in backbone network configuration.
A key advantage of the FS1018PS1 model is the EXTEND mode, which enables data and power transmission over a distance of up to 250 meters on ports 9-16, which is invaluable for extensive monitoring systems. Additionally, the switch offers a Watchdog function that automatically monitors the status of connected devices and restarts PoE power if necessary, ensuring system continuity. The robust, metal Desktop/RACK housing guarantees durability and effective heat dissipation. The device features built-in surge protection and electrostatic discharge protection, increasing operational safety in difficult conditions. It is an ideal solution for installers looking for stable and efficient equipment for building modern IP networks.
Specification
LAN ports
16 x RJ45 (16 x PoE 802.3af/at), 2 x RJ45 Uplink, 1 x SFP Uplink
Management
None
Number of fans
None
LED indicators
Power, Link/Act
Transmission speed
10/100 Mbps (16 LAN/PoE ports), 10/100/1000 Mbps (2 Uplink ports, 1 SFP port)
Maximum output power
30 W per PoE port
Maximum total power
200 W
Switching capacity
9.2 Gb/s
Packet forwarding rate
6.844 Mpps
MAC address table
2k
Selected features
Watchdog function, EXTEND mode (up to 250m), VLAN mode, ESD protection, Surge protection, Grounding, IEEE802.3x Flow Control
Certificates
CE
Housing
Desktop / RACK, Metal
Operating temperature
0 °C ... 40 °C
Contents
1x PoE Switch FS1018PS1
Dimensions, Weight
Product dimensions: 182 x 270 x 44 mm (D x W x H)
Packaging dimensions: 245 x 367 x 84 mm (D x W x H)
Product weight: 1590 g
Weight with packaging: 2185 g
