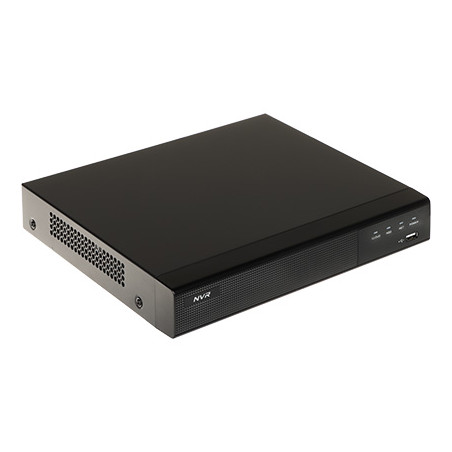

9-channel IP recorder, 4 PoE ports, 12 Mpx support, H.265+ compression, ONVIF, P2P, BitVision APTI APTI-N0921-4P-I3
zł462.48
Tax included
The APTI-N0921-4P-I3 digital recorder is an advanced, professional device dedicated to modern IP monitoring installations. Thanks to support for up to 9 video channels and a built-in 4-port PoE switch, it is an ideal solution for small and medium-sized security systems, eliminating the need for additional camera power supplies. The device supports the H.265+ compression standard, which allows for a significant reduction in hard drive space usage and lower network bandwidth load while maintaining the highest image quality.
The advantages of this model include an intuitive user interface designed for easy navigation even for novice installers. The recorder offers full support for resolutions up to 12 Mpx, which guarantees extraordinary detail in recordings. Thanks to support for the ONVIF protocol, the device is compatible with a wide range of IP cameras from various manufacturers. Users can utilize free mobile applications BitVision and iVMS320, which enable remote live viewing, playback of recordings, and parameter configuration from anywhere in the world via the P2P cloud. A robust design, NDAA certificate, and support for intelligent image analysis make it a trustworthy choice for professional CCTV systems.
9-channel IP recorder, 4 PoE ports, 12 Mpx support, H.265+ compression, ONVIF, P2P, BitVision
Model: APTI APTI-N0921-4P-I3
EAN: 6931240071960 SKU: 931071967
- Support for 9 IP channels
- Built-in 4-port PoE switch (30W/channel)
- Compression H.265+ / H.265 / H.264+ / H.264
- Support for resolutions up to 12 Mpx
- HDMI 4K and VGA video output
- Support for SATA drives up to 10 TB
- Cloud access (P2P) and BitVision/iVMS320 mobile applications
- ONVIF compliance
- NDAA certificate
Description
The APTI-N0921-4P-I3 digital recorder is an advanced, professional device dedicated to modern IP monitoring installations. Thanks to support for up to 9 video channels and a built-in 4-port PoE switch, it is an ideal solution for small and medium-sized security systems, eliminating the need for additional camera power supplies. The device supports the H.265+ compression standard, which allows for a significant reduction in hard drive space usage and lower network bandwidth load while maintaining the highest image quality.
The advantages of this model include an intuitive user interface designed for easy navigation even for novice installers. The recorder offers full support for resolutions up to 12 Mpx, which guarantees extraordinary detail in recordings. Thanks to support for the ONVIF protocol, the device is compatible with a wide range of IP cameras from various manufacturers. Users can utilize free mobile applications BitVision and iVMS320, which enable remote live viewing, playback of recordings, and parameter configuration from anywhere in the world via the P2P cloud. A robust design, NDAA certificate, and support for intelligent image analysis make it a trustworthy choice for professional CCTV systems.
Specification
Standard
IP
Supported resolutions
Up to 12 Mpx
Video outputs
1x HDMI 4K, 1x VGA
Audio support
9 channels (audio from cameras), two-way audio support, 1 input/1 output CINCH
Image compression method
H.265+ / H.265 / H.264+ / H.264. The H.265 (HEVC) standard provides high encoding efficiency, reducing file size while maintaining quality.
Bitrate
80 Mbps (incoming)
Supported hard drives
1x SATA up to 10 TB
Recording modes
Manual, motion detection, schedule
Network interface
1x RJ-45 10/100 Base-TX
Network functions
Live view, playback, archiving, configuration via IE browser and client software
Software and applications
The device works with free mobile applications BitVision and iVMS320 (Android/iOS). These applications offer comprehensive system management: remote real-time image viewing, playback of recordings from the disk, remote configuration of recorder parameters, and push notifications about events. Cloud access (P2P) eliminates the need for a public IP address. PC software allows for advanced management of multiple recorders simultaneously, creation of camera groups, and advanced data archiving.
PoE switch
Built-in 4-port PoE switch (802.3at), 30W per channel, total load max 45W
Intelligent image analysis
Support for intelligent analysis functions available in APTI-AI series cameras
Power supply
48V DC / 1.36A (power adapter included)
Contents
1x IP recorder APTI-N0921-4P-I3
1x Power adapter
1x Computer mouse
User manual
Dimensions, Weight
Product dimensions: 230 x 260 x 43 mm (D x W x H)
Package dimensions: 85 x 385 x 290 mm (D x W x H)
Product weight: 920 g
Weight with packaging: 1644 g
