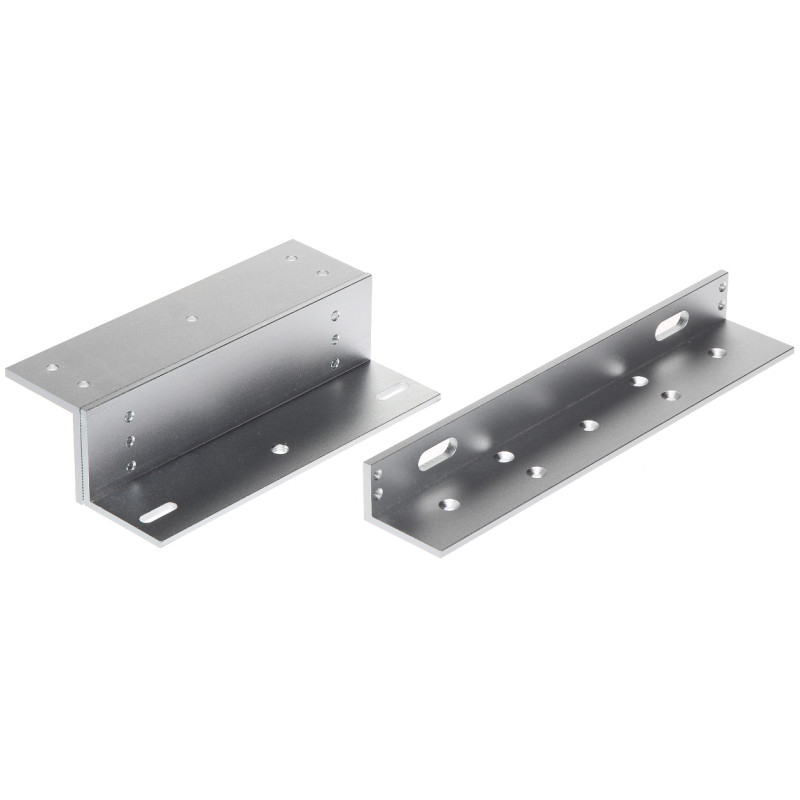

Z and L mounting bracket for 270kg electromagnetic lock aluminum sturdy door bracket ATLO ATLO-BML-273
zł157.44
Tax included
The ATLO-BML-273 mounting kit is a key component of access control systems, enabling professional installation of the ATLO-ML-271 electromagnetic lock on inward-opening doors. Made of high-grade aluminum, the set is characterized by exceptional lightness while maintaining immense structural rigidity. Thanks to the use of Z and L brackets, installation becomes possible even in difficult architectural conditions where standard surface mounting is not applicable.
The main advantage of the product is its precise workmanship, which guarantees a perfect fit for the dedicated 270 kg holding force lock. Solid mounting is the foundation of security – it prevents element displacement, which could weaken the holding force of the electromagnet. The aluminum used for production is resistant to aging processes and corrosion, ensuring that the brackets retain their mechanical properties and aesthetic appearance for many years of intensive use in offices, schools, or industrial facilities.
Another advantage is the completeness of the set. The user receives not only the aluminum profiles themselves but also dedicated mounting screws and rubber washers. The latter perform an extremely important cushioning function – they allow for "floating" mounting of the metal plate, which is necessary for the entire surface of the plate to adhere perfectly to the face of the electromagnet every time the door is closed. The silver, neutral finish ensures that the mounting hardware is unobtrusive and matches most modern door fittings. By choosing the ATLO-BML-273, you are investing in reliability and the certainty that the door locking system will operate efficiently and without failure, protecting property and people inside the building. Installation is intuitive and does not require specialized tools beyond a standard drill and screwdriver.
Z and L mounting bracket for 270kg electromagnetic lock aluminum sturdy door bracket
Model: ATLO ATLO-BML-273
EAN: 6931240050323 SKU: 931050324
- Dedicated to the ATLO-ML-271 electromagnetic lock
- Enables installation on inward-opening doors
- Made of lightweight and durable aluminum
- High resistance to corrosion and mechanical damage
- The set includes all necessary mounting accessories
- Aesthetic, silver anodized finish
- Ensures stability and full holding force of the lock (270 kg)
Description
The ATLO-BML-273 mounting kit is a key component of access control systems, enabling professional installation of the ATLO-ML-271 electromagnetic lock on inward-opening doors. Made of high-grade aluminum, the set is characterized by exceptional lightness while maintaining immense structural rigidity. Thanks to the use of Z and L brackets, installation becomes possible even in difficult architectural conditions where standard surface mounting is not applicable.
The main advantage of the product is its precise workmanship, which guarantees a perfect fit for the dedicated 270 kg holding force lock. Solid mounting is the foundation of security – it prevents element displacement, which could weaken the holding force of the electromagnet. The aluminum used for production is resistant to aging processes and corrosion, ensuring that the brackets retain their mechanical properties and aesthetic appearance for many years of intensive use in offices, schools, or industrial facilities.
Another advantage is the completeness of the set. The user receives not only the aluminum profiles themselves but also dedicated mounting screws and rubber washers. The latter perform an extremely important cushioning function – they allow for "floating" mounting of the metal plate, which is necessary for the entire surface of the plate to adhere perfectly to the face of the electromagnet every time the door is closed. The silver, neutral finish ensures that the mounting hardware is unobtrusive and matches most modern door fittings. By choosing the ATLO-BML-273, you are investing in reliability and the certainty that the door locking system will operate efficiently and without failure, protecting property and people inside the building. Installation is intuitive and does not require specialized tools beyond a standard drill and screwdriver.
Specification
Device type
Professional set of Z and L mounting brackets (ZL-bracket)
Application
Designed for mounting an electromagnetic lock on inward-opening doors
Technical compatibility
Full compatibility with the ATLO-ML-271 lock model and other models with a holding force of 270 kg and similar mounting parameters
Maximum load capacity
Construction adapted to carry loads and a holding force of up to 270 kg (approx. 600 lbs)
Material
High-quality aluminum with increased strength, resistant to corrosion, oxidation, and external factors
Surface finish
Anodized aluminum in silver color, ensuring aesthetic appearance and coating durability
Bracket construction
The set consists of an L-bracket (mounted to the frame) and a two-piece adjustable Z-bracket (mounted to the door leaf)
Mounting method
Requires screwing to the door frame and door leaf using the included screws; surface mounting
Cushioning system
Provides for the use of rubber spacer washers to ensure perfect adhesion of the lock to the metal plate
Adjustment capability
Mounting holes allow for precise positioning of elements relative to each other to optimize magnetic force
Mechanical resistance
Rigid aluminum profile prevents deformation and vibration even during attempts to forcibly breach the secured door
Operating conditions
Product intended for indoor applications, insensitive to typical temperature and humidity changes inside buildings
Compliance and certification
Product meets safety standards required in professional access control systems (CE compliance)
Element dimensions
Z-bracket: 180 x 99 x 51 mm; L-bracket: 250.5 x 48 x 28.5 mm
Manufacturer warranty
24 months (2 years) warranty protection provided by authorized service
Contents
1x L-bracket
1x Z-bracket (2-piece)
1x Set of mounting screws
1x Set of rubber washers
1x Installation manual
Dimensions, Weight
Product dimensions: 29 x 251 x 48 mm (D x W x H)
Package dimensions: 65 x 270 x 65 mm (D x W x H)
Product weight: 580 g
Weight with packaging: 630 g
