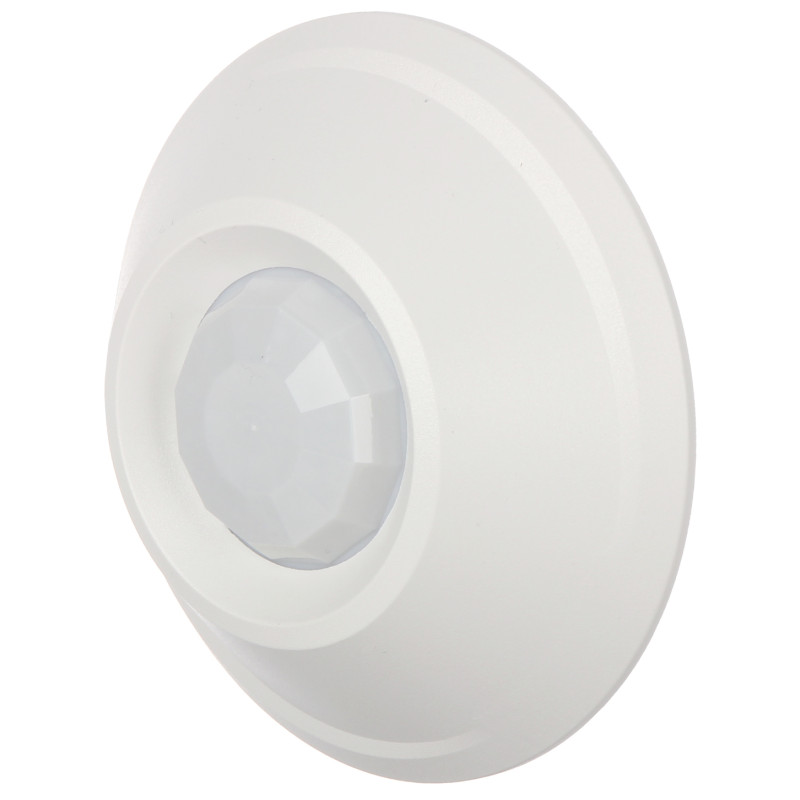

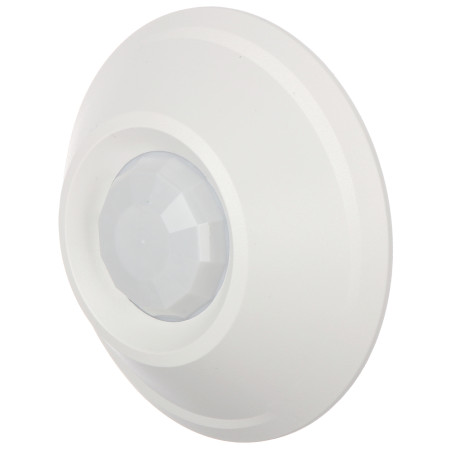

Digital 360 degree PIR ceiling motion detector for alarm systems SATEL AQUA-RING
zł158.09
Tax included
SATEL AQUA-RING is a professional ceiling-mounted motion detector utilizing passive infrared (PIR) technology. The device is designed to provide maximum security in rooms where wall mounting is difficult or undesirable. Thanks to the use of a quad-element pyroelectric sensor, the detector is characterized by exceptional sensitivity and high resistance to false alarms, which is crucial in advanced intrusion and robbery alarm systems (SSWiN).
One of the most important advantages of the AQUA-RING model is its omnidirectional detection pattern. Mounted on the ceiling, the detector monitors an area within a 360-degree radius, which allows for effective protection of even large rooms using a single device. When mounted at a height of 3.7 meters, the detector is capable of protecting an area of up to 80 square meters, making it an extremely economical and efficient solution.
The device features a built-in digital temperature compensation function. This mechanism automatically adjusts the sensor's operating parameters to the ambient temperature, ensuring stable intruder detection even in conditions where the room temperature approaches human body temperature. Additionally, the pre-alarm function allows the system to react even faster to potential threats.
The design of the AQUA-RING detector is compact and aesthetic, allowing it to blend discreetly into the decor of modern office, commercial, and residential interiors. The use of advanced digital signal processing algorithms minimizes the risk of errors, and the ability to adjust sensitivity via jumpers allows for precise adaptation of the device to the specifics of the protected facility. By choosing SATEL brand products, you gain a guarantee of the highest quality workmanship and many years of trouble-free operation, which is confirmed by a two-year warranty period.
Digital 360 degree PIR ceiling motion detector for alarm systems
Model: SATEL AQUA-RING
EAN: 6931240015568 SKU: 931015561
- Digital passive infrared (PIR) sensor
- Ceiling mount with 360° omnidirectional detection pattern
- Advanced quad-element pyroelectric sensor
- Digital Signal Processing (DSP) for high reliability
- Two-way digital temperature compensation
- Pre-alarm function to increase detection effectiveness
- Adjustable detection sensitivity via jumpers
- Wide mounting height range from 2.2 m to 4.5 m
- High immunity to false alarms
- Aesthetic and discreet ceiling-mount housing
Description
SATEL AQUA-RING is a professional ceiling-mounted motion detector utilizing passive infrared (PIR) technology. The device is designed to provide maximum security in rooms where wall mounting is difficult or undesirable. Thanks to the use of a quad-element pyroelectric sensor, the detector is characterized by exceptional sensitivity and high resistance to false alarms, which is crucial in advanced intrusion and robbery alarm systems (SSWiN).
One of the most important advantages of the AQUA-RING model is its omnidirectional detection pattern. Mounted on the ceiling, the detector monitors an area within a 360-degree radius, which allows for effective protection of even large rooms using a single device. When mounted at a height of 3.7 meters, the detector is capable of protecting an area of up to 80 square meters, making it an extremely economical and efficient solution.
The device features a built-in digital temperature compensation function. This mechanism automatically adjusts the sensor's operating parameters to the ambient temperature, ensuring stable intruder detection even in conditions where the room temperature approaches human body temperature. Additionally, the pre-alarm function allows the system to react even faster to potential threats.
The design of the AQUA-RING detector is compact and aesthetic, allowing it to blend discreetly into the decor of modern office, commercial, and residential interiors. The use of advanced digital signal processing algorithms minimizes the risk of errors, and the ability to adjust sensitivity via jumpers allows for precise adaptation of the device to the specifics of the protected facility. By choosing SATEL brand products, you gain a guarantee of the highest quality workmanship and many years of trouble-free operation, which is confirmed by a two-year warranty period.
Specification
Device type
Ceiling PIR motion detector
Application
Internal alarm systems
Detection technology
Passive infrared (PIR) with digital signal processing
Pyroelectric sensor
Quad-element with high sensitivity
Detection range
Height 2.4 m: 36 m² area; Height 3.7 m: 80 m² area
Viewing angle
360 degrees (omnidirectional)
Recommended mounting height
2.2 m ... 4.5 m
Detectable movement speed
Up to 3 m/s
Alarm functions
Pre-alarm function, violation signaling time: 2 s
Temperature compensation
Digital, automatic detection threshold adjustment
Self-diagnostics
Basic operational correctness check of circuits
Sensitivity adjustment
Via configuration jumpers on the main board
Electrical parameters
Power supply: 12 V DC / 9.5 mA (tolerance +/- 15%)
Environmental conditions
Operating temperature: -10 °C ... 50 °C
Mechanical construction
Dimensions: Ø 97 x 29 mm, white plastic housing
Software and logic
The firmware of the AQUA-RING detector is based on advanced digital signal processing (DSP) algorithms. This system analyzes signals from the quad-element pyroelectric sensor in real-time, eliminating interference caused by air currents or lighting changes. The temperature compensation algorithm dynamically modifies the detection threshold, ensuring constant sensitivity regardless of the thermal conditions in the room. Additionally, the software performs a self-diagnostic function, monitoring key device operating parameters and signaling potential faults, which significantly increases the reliability of the entire alarm system.
Contents
1x AQUA-RING detector
1x Set of mounting screws
1x User manual
Dimensions, Weight
Product dimensions: 29 x 97 x 97 mm (D x W x H)
Packaging dimensions: 35 x 100 x 100 mm (D x W x H)
Product weight: 60 g
Weight with packaging: 80 g
