- New

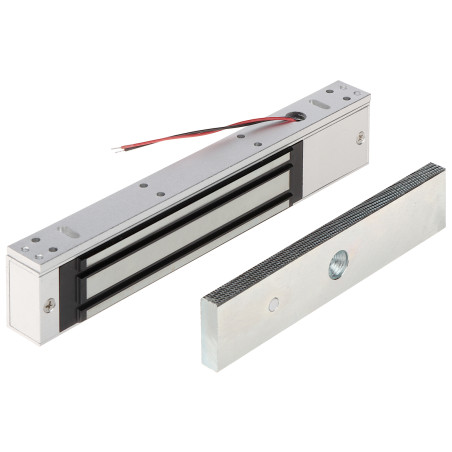

Single surface electromagnetic lock for doors and gates 280kg 12V 24V DC failsafe Delta ZE-280-2
zł175.28
Tax included
The ZE-280-2 electromagnetic lock is a high-class surface-mounted device designed for professional access control systems. Thanks to its single design and the absence of moving mechanical parts, this product guarantees exceptional reliability and longevity, eliminating the risk of part wear that occurs in traditional electric strikes. The main task of the lock is to effectively secure doors and gates, and forcing it requires the use of immense force exceeding 280 kg, which constitutes a solid barrier for unauthorized persons.
The device is characterized by failsafe operation, which means that in the event of a power failure (e.g., during a power outage or in emergency situations), the lock is released. This is a key feature from the point of view of fire safety and evacuation. The set consists of two precisely made elements: a strong electromagnet usually mounted on the door frame and a metal armature plate installed on the door leaf. Thanks to the use of modern technologies, the lock operates quietly and stably.
Product advantages:
- Lack of mechanical parts ensures failure-free operation and minimizes maintenance costs.
- High holding force (over 280 kg) ensures a high level of security.
- Universal 12V or 24V DC power supply allows for easy integration with various alarm and access control systems.
- Aesthetic design and compact dimensions make the device discreetly blend in with door joinery elements.
- Simple surface mounting does not require complicated door processing.
- An ideal solution for offices, warehouses, and public buildings where reliability and user safety are important.
Single surface electromagnetic lock for doors and gates 280kg 12V 24V DC failsafe
Model: Delta ZE-280-2
EAN: 6931240094433 SKU: 931094431
- Holding force up to 280 kg (approx. 2700 N)
- Dual power supply 12V DC or 24V DC
- Failsafe operation mode
- No mechanical parts subject to wear
- Indoor surface mounting
- Made of high-quality anodized aluminum
- Built-in surge protection (MOV)
- No residual magnetism after power cut
Description
The ZE-280-2 electromagnetic lock is a high-class surface-mounted device designed for professional access control systems. Thanks to its single design and the absence of moving mechanical parts, this product guarantees exceptional reliability and longevity, eliminating the risk of part wear that occurs in traditional electric strikes. The main task of the lock is to effectively secure doors and gates, and forcing it requires the use of immense force exceeding 280 kg, which constitutes a solid barrier for unauthorized persons.
The device is characterized by failsafe operation, which means that in the event of a power failure (e.g., during a power outage or in emergency situations), the lock is released. This is a key feature from the point of view of fire safety and evacuation. The set consists of two precisely made elements: a strong electromagnet usually mounted on the door frame and a metal armature plate installed on the door leaf. Thanks to the use of modern technologies, the lock operates quietly and stably.
Product advantages:
- Lack of mechanical parts ensures failure-free operation and minimizes maintenance costs.
- High holding force (over 280 kg) ensures a high level of security.
- Universal 12V or 24V DC power supply allows for easy integration with various alarm and access control systems.
- Aesthetic design and compact dimensions make the device discreetly blend in with door joinery elements.
- Simple surface mounting does not require complicated door processing.
- An ideal solution for offices, warehouses, and public buildings where reliability and user safety are important.
Specification
Device type
Surface-mounted electromagnetic lock, single
Holding force
280 kg
Rated voltage
12 V DC / 24 V DC (selectable via jumper)
Current consumption
500 mA (at 12V) / 250 mA (at 24V)
Operation mode
Failsafe - open when power is cut
Application
Indoor
Material
Anodized aluminum / Steel
Electromagnet dimensions
250 x 47 x 28 mm
Armature plate dimensions
180 x 38 x 12 mm
Set weight
1.73 kg (total)
Warranty
2 years (24 months)
Protections
MOV (surge protection)
Mounting method
Surface (possibility to use L, Z, U brackets)
System compatibility
Access control systems, video intercoms, alarm systems, fire protection systems
Software and control
The device does not have dedicated built-in firmware, however, its operation is fully compatible with advanced access controllers and building management systems (BMS). Control is performed by applying or cutting off DC voltage. It works with proximity card readers, digital keypads, and exit buttons. Thanks to its simple electrical characteristics, the lock can be monitored by master systems to verify the open/closed status of the passage (when using additional door status sensors). Integration with fire protection systems allows for automatic unlocking of passages during a fire alarm, which is a standard in modern commercial and industrial construction.
Contents
1x Electromagnetic lock
1x Metal plate
1x Set of mounting screws
1x Rubber shock-absorbing pad
1x Installation manual
Dimensions, Weight
Product dimensions: 28 x 250 x 47 mm (D x W x H)
Package dimensions: 70 x 270 x 65 mm (D x W x H)
Product weight: 1730 g
Weight with packaging: 1872 g
