- New

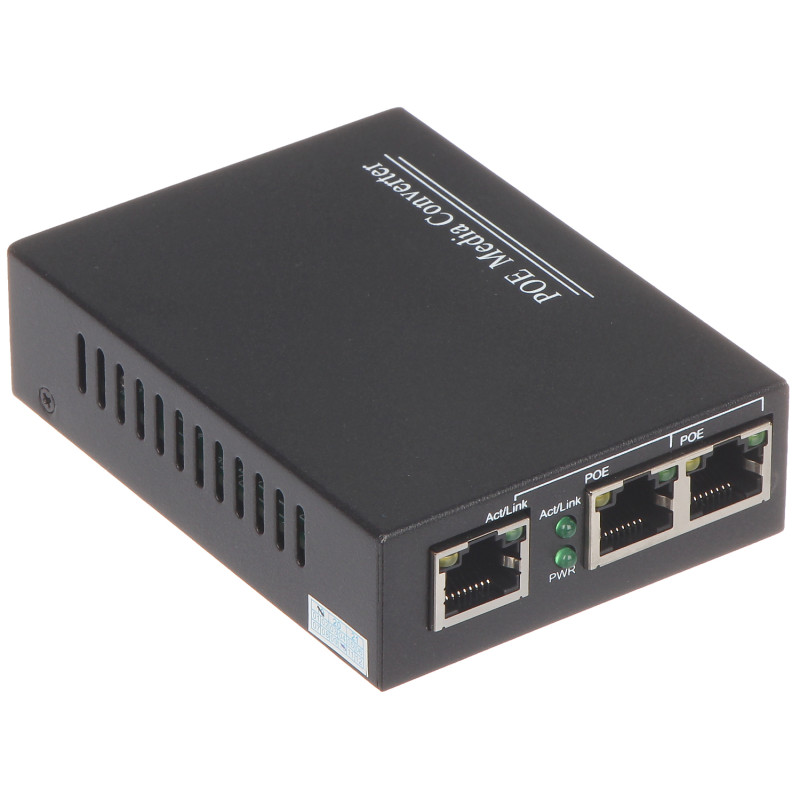

3-Port Industrial PoE Switch 2xPoE 802.3af 10/100 Mbps Desktop Power Supply Included CCTV Accessories Delta SPS-2P/1
zł158.67
Tax included
The SPS-2P/1 PoE switch is an advanced industrial-grade device designed to ensure reliable and smooth data transmission in modern Ethernet networks. Equipped with three RJ45 ports, two of which offer full support for Power over Ethernet (PoE) technology under the IEEE 802.3af standard, this switch is an ideal solution for professional IP monitoring systems, Wi-Fi access points, and other network devices requiring stable power and data transmission via a single twisted-pair cable. With a transmission speed of 10/100 Mbps, the user is guaranteed the performance necessary to handle high-resolution video streams without latency.
The main advantage of this model is its versatility and extreme ease of installation based on Plug & Play technology. The device does not require any complex initial configuration, which significantly shortens system deployment time and minimizes the risk of installation errors. A robust construction adapted to operate in a wide temperature range from -20°C to 70°C ensures that the switch performs perfectly in harsh environmental conditions typical for industrial installations, production halls, or outdoor mounting boxes.
The set includes a dedicated, stabilized 52V DC / 1.25A power supply, which ensures optimal operating parameters and eliminates the need to search for additional accessories. The maximum output power per single PoE port is 15.4 W, with a total device power budget of 36 W. This allows for stable power supply to two IP cameras with high power consumption or other PoE receivers without the risk of voltage drops or device restarts. Compact dimensions (96 x 71 x 26 mm) and low weight (130g) allow for installation in places with very limited space, such as small installation boxes or telecommunications cabinets. Clear LED signaling (Power, PoE, Link/Act) allows for instant diagnostics of the network status and verification of the correct power supply to connected devices. By choosing this model, you are investing in durability, safety confirmed by CE certification, and the professionalism of your network infrastructure.
3-Port Industrial PoE Switch 2xPoE 802.3af 10/100 Mbps Desktop Power Supply Included CCTV Accessories
Model: Delta SPS-2P/1
EAN: 6931240075098 SKU: 931075094
- 3 RJ45 LAN ports 10/100 Mbps
- 2 ports with PoE support (802.3af standard)
- Data transmission speed up to 100 Mbps
- Maximum output power of 15.4 W per single PoE port
- Total device power budget is 36 W
- Wide operating temperature range from -20 °C to 70 °C
- 52V DC / 1.25A power supply included in the set
- Compact desktop housing for easy installation
- Optical signaling with LED diodes (Power, PoE, Link/Act)
- Plug & Play technology - no configuration required
Description
The SPS-2P/1 PoE switch is an advanced industrial-grade device designed to ensure reliable and smooth data transmission in modern Ethernet networks. Equipped with three RJ45 ports, two of which offer full support for Power over Ethernet (PoE) technology under the IEEE 802.3af standard, this switch is an ideal solution for professional IP monitoring systems, Wi-Fi access points, and other network devices requiring stable power and data transmission via a single twisted-pair cable. With a transmission speed of 10/100 Mbps, the user is guaranteed the performance necessary to handle high-resolution video streams without latency.
The main advantage of this model is its versatility and extreme ease of installation based on Plug & Play technology. The device does not require any complex initial configuration, which significantly shortens system deployment time and minimizes the risk of installation errors. A robust construction adapted to operate in a wide temperature range from -20°C to 70°C ensures that the switch performs perfectly in harsh environmental conditions typical for industrial installations, production halls, or outdoor mounting boxes.
The set includes a dedicated, stabilized 52V DC / 1.25A power supply, which ensures optimal operating parameters and eliminates the need to search for additional accessories. The maximum output power per single PoE port is 15.4 W, with a total device power budget of 36 W. This allows for stable power supply to two IP cameras with high power consumption or other PoE receivers without the risk of voltage drops or device restarts. Compact dimensions (96 x 71 x 26 mm) and low weight (130g) allow for installation in places with very limited space, such as small installation boxes or telecommunications cabinets. Clear LED signaling (Power, PoE, Link/Act) allows for instant diagnostics of the network status and verification of the correct power supply to connected devices. By choosing this model, you are investing in durability, safety confirmed by CE certification, and the professionalism of your network infrastructure.
Specification
Device type
Industrial unmanaged PoE switch designed for use in IP monitoring systems and local networks requiring PoE power.
Number of ports
The device has a total of 3 RJ45 ports operating in the Fast Ethernet 10/100 Mbps standard.
PoE support
2 LAN ports support Power over Ethernet technology according to the IEEE 802.3af standard, enabling power and data transmission via a single cable.
Transmission speed
Supports 10 / 100 Mbps speeds with auto-negotiation (Auto-MDI/MDI-X) on all ports.
PoE output power
The maximum power delivered to a single port is 15.4 W, which is sufficient for most IP cameras and VoIP phones.
PoE power budget
The total cumulative power supply available for all connected PoE devices is 36 W.
Device power supply
The switch is powered by 52 V DC at 1.25 A. A high-quality power adapter is included in the set.
Optical signaling
Front panel equipped with LEDs indicating power status (Power), PoE power activity, and connection/transmission status (Link/Act).
MAC address table
The device supports a 1k MAC address table with automatic learning and aging functions.
Network standards
Full compliance with IEEE 802.3 (Ethernet), IEEE 802.3u (Fast Ethernet), and IEEE 802.3af (PoE) protocols.
Operating conditions
Adapted for operation in extreme temperatures from -20 °C to 70 °C, allowing for installation in unheated rooms.
Certification and safety
The product has a CE certificate, confirming compliance with European safety and electromagnetic compatibility standards.
Housing and mounting
Compact, durable desktop housing with dimensions of 96 x 71 x 26 mm, ideal for discreet installation.
Software and features
The SPS-2P/1 device is an unmanaged Plug & Play switch, meaning it does not have a dedicated web interface or configuration application. The built-in firmware automatically manages the PoE power negotiation process according to the IEEE 802.3af standard. The system intelligently detects connected end devices, checking their power requirements and protecting incompatible devices from accidental damage. Internal algorithms optimize data packet transmission at Layer 2, ensuring low latency and transmission stability without user intervention. The switch also has built-in surge and short-circuit protection on the power ports.
Contents
1x PoE Switch SPS-2P/1
1x Switching power supply 52V/1.25A
1x User manual
Dimensions, Weight
Product dimensions: 71 x 96 x 26 mm (D x W x H)
Package dimensions: 220 x 185 x 65 mm (D x W x H)
Product weight: 130 g
Weight with packaging: 532 g
