- New

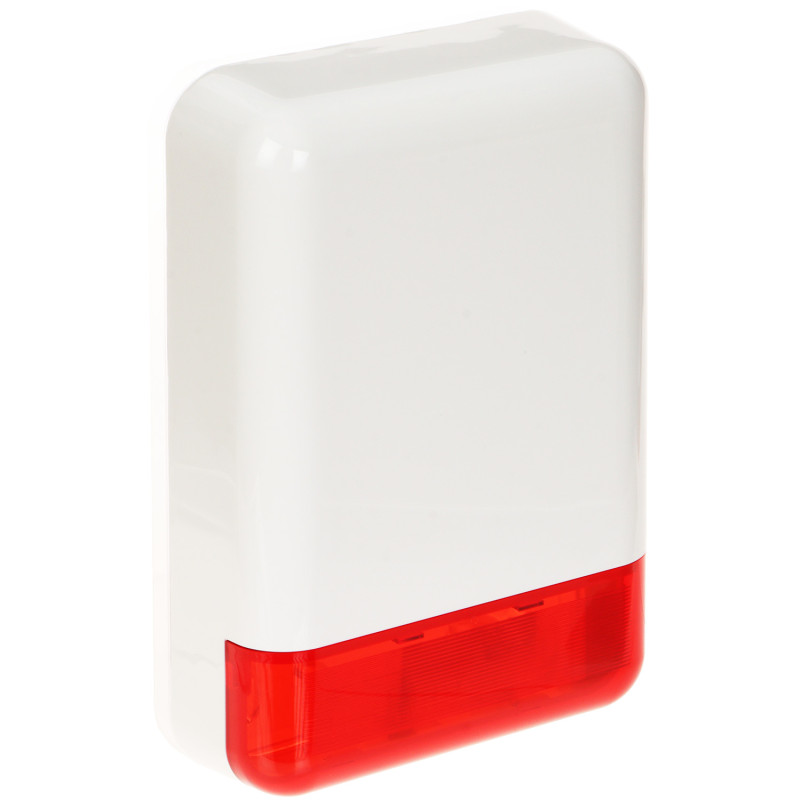

External optical-acoustic siren red 120dB polycarbonate tamper alarm loud control outputs SATEL SPL-2030-R
zł179.88
Tax included
The SPL-2030-R external siren is an advanced alarm device from the renowned SATEL brand, designed for effective optical-acoustic signaling in intrusion and robbery systems. It is an economical yet extremely robust version of the popular SPL-2010 model, which works perfectly in installations where high volume and operational reliability are priorities while maintaining optimal costs. The device performs the alarm function in two ways: through a very loud, modulated sound signal with an intensity of up to 120 dB and bright, red optical signals generated by the built-in lamp.
One of the key advantages of this model is its exceptional resistance to external conditions and mechanical damage. The housing is made of high-impact polycarbonate, which ensures that the siren will maintain its aesthetic appearance and full functionality even after many years of exposure to sun, rain, or frost. Polycarbonate is a much more durable material than standard ABS plastics, making the SPL-2030-R resistant to destruction attempts. Additionally, the device is equipped with advanced tamper protection that reacts immediately to any attempt to open the housing or tear the siren from the wall, which is crucial for maintaining the integrity of the entire alarm system.
The siren offers great installation flexibility thanks to two control inputs, allowing for the selection of the most appropriate alarm triggering method depending on the alarm control panel configuration. Due to the wide operating temperature range from -35°C to 60°C, the device is fully adapted to work in various climates, ensuring operational stability during both freezing winters and hot days. The lack of an internal battery makes the construction lighter and easier to maintain, while maintaining full acoustic power powered directly from the 12V DC system. By choosing the SPL-2030-R, you are investing in proven technology that has been a standard in the security industry for years.
External optical-acoustic siren red 120dB polycarbonate tamper alarm loud control outputs
Model: SATEL SPL-2030-R
EAN: 6931240066942 SKU: 931066941
- Acoustic signaling: piezoelectric transducer
- Optical signaling: lamp (red color)
- Tamper protection against opening the housing
- Tamper protection against removal from the mounting surface
- Housing made of high-impact polycarbonate
- Two control inputs - choice of control method
- Wide operating temperature range from -35°C to +60°C
- Polish product with high mechanical durability
Description
The SPL-2030-R external siren is an advanced alarm device from the renowned SATEL brand, designed for effective optical-acoustic signaling in intrusion and robbery systems. It is an economical yet extremely robust version of the popular SPL-2010 model, which works perfectly in installations where high volume and operational reliability are priorities while maintaining optimal costs. The device performs the alarm function in two ways: through a very loud, modulated sound signal with an intensity of up to 120 dB and bright, red optical signals generated by the built-in lamp.
One of the key advantages of this model is its exceptional resistance to external conditions and mechanical damage. The housing is made of high-impact polycarbonate, which ensures that the siren will maintain its aesthetic appearance and full functionality even after many years of exposure to sun, rain, or frost. Polycarbonate is a much more durable material than standard ABS plastics, making the SPL-2030-R resistant to destruction attempts. Additionally, the device is equipped with advanced tamper protection that reacts immediately to any attempt to open the housing or tear the siren from the wall, which is crucial for maintaining the integrity of the entire alarm system.
The siren offers great installation flexibility thanks to two control inputs, allowing for the selection of the most appropriate alarm triggering method depending on the alarm control panel configuration. Due to the wide operating temperature range from -35°C to 60°C, the device is fully adapted to work in various climates, ensuring operational stability during both freezing winters and hot days. The lack of an internal battery makes the construction lighter and easier to maintain, while maintaining full acoustic power powered directly from the 12V DC system. By choosing the SPL-2030-R, you are investing in proven technology that has been a standard in the security industry for years.
Specification
Device type
External optical-acoustic siren designed for intrusion and robbery signaling systems.
Acoustic transducer
High-performance piezoelectric transducer generating a modulated sound signal with high penetration.
Sound intensity level
120 dB - ensures very good audibility of the alarm signal over a large area around the protected object.
Optical signaling
Lamp with a red lens, providing clear visual signaling visible from a long distance.
Supply voltage
12 V DC ± 15% - the device requires stable DC power from an alarm control panel or an external power supply.
Maximum current consumption
285 mA - total current consumption during simultaneous operation of optical and acoustic signaling.
Tamper protection (opening)
Built-in tamper switch reacting to any attempt to remove the housing cover by unauthorized persons.
Tamper protection (removal)
Mechanism detecting an attempt to tear the entire device from the wall or other mounting surface.
Housing material
High-impact polycarbonate characterized by extreme resistance to impacts, vandalism, and UV radiation.
Environmental class
Class III according to EN50130-5 standard, which confirms suitability for operation in difficult outdoor conditions.
Operating temperature
From -35 °C to +60 °C - guarantees reliability in extreme weather conditions, from frost to heat.
Control inputs
Two independent control inputs allowing for separate triggering of sound and light or joint configuration.
Color scheme
White housing with a red optical element, aesthetic design matching modern facades.
Compliance and certification
The product has a CE declaration of conformity and was entirely designed and manufactured in Poland.
Mounting
Surface mounting using expansion bolts, dedicated for installation outside buildings.
Software
The device is a hardware component and does not have a built-in Web or App software interface. Logic control is performed directly via the alarm control panel outputs (e.g., Satel Integra, Versa), which allows for full integration with alarm schedules, zones, and remote user notification via mobile applications dedicated to the given alarm control panel.
Contents
1x External siren SPL-2030-R
1x User manual in Polish
1x Set of mounting accessories
Dimensions, Weight
Product dimensions: 97 x 195 x 300 mm (D x W x H)
Packaging dimensions: 90 x 210 x 310 mm (D x W x H)
Product weight: 600 g
Weight with packaging: 952 g
