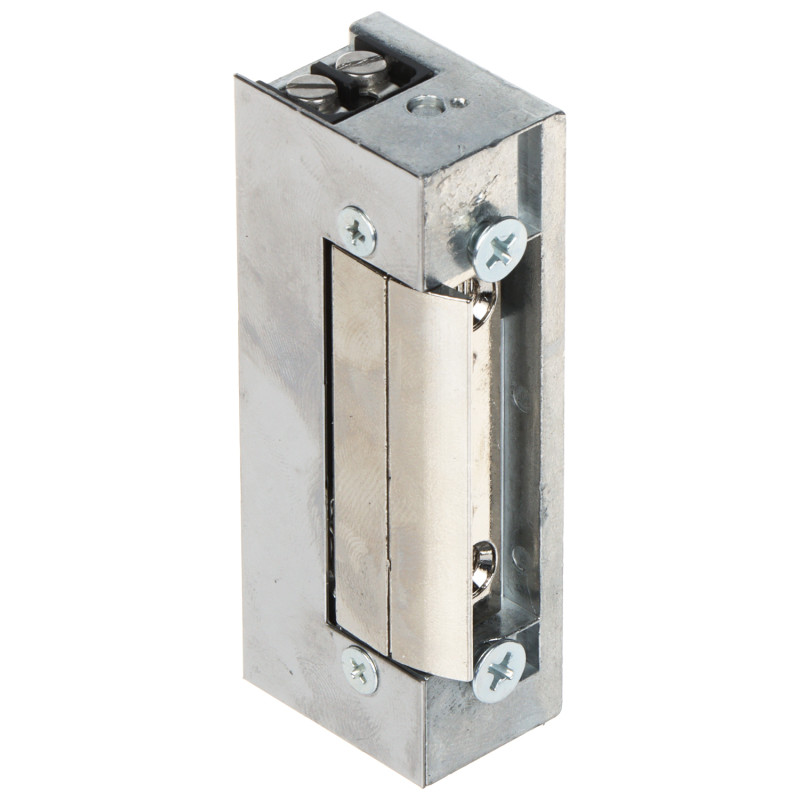

Hartte S-series Symmetrical Fail-Safe Electric Strike 4mm Adjustment 12V DC Access Control BIRA S12R
zł164.02
Tax included
The Hartte series electric strike is an advanced technical solution designed for professional security and access control systems. This model features fail-safe operation, which is crucial for fire safety and escape routes – when power is cut, the bolt is released, allowing the door to be opened freely for safe evacuation from the building.
One of the device's most important advantages is its fully symmetrical construction. This means the installer does not need to determine the door opening direction before purchase; the product fits perfectly for both left and right-handed doors, significantly simplifying the logistics and installation process. Additionally, the built-in 4 mm latch adjustment allows for precise alignment of the electric strike with the mechanical lock after installation, eliminating annoying door vibrations and ensuring a tight seal.
The device is made of high-quality metal alloys, resulting in an impressive mechanical strength of up to 3500 N. This means the bolt can effectively withstand pressure of approximately 350 kg, providing a solid barrier against unauthorized entry. Low power consumption (only 190 mA at 12V DC) allows for the use of smaller power supplies and optimizes the costs of the entire installation.
The product is also characterized by exceptional durability, confirmed by rigorous testing of 200,000 operating cycles. It can operate continuously under voltage without any time limits, making it an ideal solution for commercial facilities, offices, and public buildings where doors must remain locked for many hours during the day. By choosing this electric strike, you are investing in quality, reliability, and the highest safety standards.
Hartte S-series Symmetrical Fail-Safe Electric Strike 4mm Adjustment 12V DC Access Control
Model: BIRA S12R
EAN: 6931240022375 SKU: 931022377
- Fail-safe operation mode (NO) - open when power is lost
- Fully symmetrical design - fits both left and right-handed doors
- 4 mm strike adjustment for easy installation
- High mechanical resistance to pressure up to 3500 N (350 kg)
- Very long service life - minimum 200,000 opening cycles
- Continuous duty operation under voltage without time limits
- Low power consumption of only 190 mA at 12V DC
- Narrow housing for easy installation in aluminum and PVC profiles
Description
The Hartte series electric strike is an advanced technical solution designed for professional security and access control systems. This model features fail-safe operation, which is crucial for fire safety and escape routes – when power is cut, the bolt is released, allowing the door to be opened freely for safe evacuation from the building.
One of the device's most important advantages is its fully symmetrical construction. This means the installer does not need to determine the door opening direction before purchase; the product fits perfectly for both left and right-handed doors, significantly simplifying the logistics and installation process. Additionally, the built-in 4 mm latch adjustment allows for precise alignment of the electric strike with the mechanical lock after installation, eliminating annoying door vibrations and ensuring a tight seal.
The device is made of high-quality metal alloys, resulting in an impressive mechanical strength of up to 3500 N. This means the bolt can effectively withstand pressure of approximately 350 kg, providing a solid barrier against unauthorized entry. Low power consumption (only 190 mA at 12V DC) allows for the use of smaller power supplies and optimizes the costs of the entire installation.
The product is also characterized by exceptional durability, confirmed by rigorous testing of 200,000 operating cycles. It can operate continuously under voltage without any time limits, making it an ideal solution for commercial facilities, offices, and public buildings where doors must remain locked for many hours during the day. By choosing this electric strike, you are investing in quality, reliability, and the highest safety standards.
Specification
Device type
Fail-safe electric strike (Normally Open - NO). Requires voltage to lock the bolt.
Product series
Hartte S-series. A line characterized by versatility and high-quality mechanical components.
Rated voltage
10V - 14V DC (direct current). Device optimized for operation with standard 12V DC power supplies used in alarm systems.
Current consumption
190 mA at 12V DC. Low energy consumption allows for long buffer operation of the system in case of power grid failure.
Mechanical strength
Static pressure resistance up to 3500 N (approx. 350 kg). Guarantees safety under standard operating conditions.
Mechanical service life
Tested for 200,000 opening and closing cycles, ensuring many years of trouble-free operation in high-traffic facilities.
Body construction
Symmetrical. Allows for installation in left and right door frames without the need for device modification.
Clearance adjustment
Integrated bolt with 4 mm adjustment range. Allows for correction of the setting relative to the lock latch after installation in the door.
Coil resistance
63 Ohm. A parameter important when designing long power supply lines to avoid excessive voltage drops.
Continuous duty time
Unlimited. The electric strike coil is designed to remain under voltage 24 hours a day without risk of damage.
Application
Access control systems, intercom and video intercom installations, fire protection systems, and escape routes.
Operating conditions
Designed for indoor installation and in places sheltered from direct weather conditions.
Manufacturer warranty
24 months (2 years) from the date of purchase, based on proof of purchase.
Technical dimensions
Width: 20.5 mm, Height: 75 mm, Depth: 28.5 mm. Compact dimensions allow for installation in most door frames.
Contents
1x S12R Electric Strike
1x User and installation manual in Polish
Dimensions, Weight
Product dimensions: 29 x 21 x 75 mm (D x W x H)
Package dimensions: 97 x 35 x 28 mm (D x W x H)
Product weight: 188 g
Weight with packaging: 192 g
