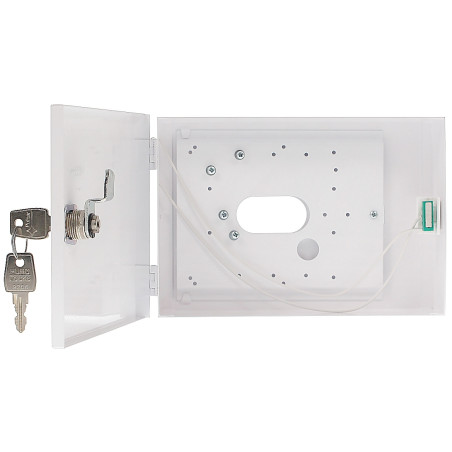

Metal enclosure for Satel CA-5 CA-6 CA-10 INT-KLCDS alarm keypads white lockable PULSAR OBU-M-LCD-S
zł144.24
Tax included
The OBU-M-LCD-S metal enclosure, also known by the manufacturer code AWO350 LED/B, is a high-quality solution dedicated to protecting alarm system keypads and control panels. The product has been designed for the aesthetic and secure mounting of control devices inside buildings. Made of durable 0.7 mm thick steel sheet, powder-coated in white, it provides excellent mechanical protection and high resistance to external factors.
The main advantage of this enclosure is the integrated tamper protection, which reacts to unauthorized opening of the door, significantly increasing the security level of the entire alarm system. Additionally, the enclosure is lockable (two keys are included), which prevents unauthorized access to the keypad's function buttons. This is particularly important in public places or common corridors where there is a risk of accidental or intentional damage to the keypad.
The design of the OBU-M-LCD-S enclosure is fully compatible with a wide range of popular Satel keypad models, including the CA-5, CA-6, CA-10 series, and modern LCD keypads from the INT-KLCDS series. Thanks to precise manufacturing and well-thought-out mounting holes, the installation of the keypad inside is fast, stable, and trouble-free. The aesthetic appearance and neutral white color make the product blend perfectly with the decor of offices, single-family homes, and modern industrial facilities.
By choosing the Pulsar AWO350 enclosure, you gain the certainty that a key element of your alarm system is protected against mechanical damage and sabotage attempts. The solid metal construction guarantees long-term durability and reliability, and the key locking system provides full control over access to the device. It is an essential element of every professional alarm installation that takes care of the security and integrity of the user interface, ensuring peace of mind for installers and facility owners.
Metal enclosure for Satel CA-5 CA-6 CA-10 INT-KLCDS alarm keypads white lockable
Model: PULSAR OBU-M-LCD-S
EAN: 6931240044001 SKU: 931044008
- Made of durable powder-coated steel sheet
- Integrated tamper protection against opening
- Key lock for protection against unauthorized access
- Full compatibility with Satel CA and INT series keypads
- Aesthetic white color RAL 9003 matching any interior
- Set of two keys included
- Easy surface mounting thanks to prepared holes
Description
The OBU-M-LCD-S metal enclosure, also known by the manufacturer code AWO350 LED/B, is a high-quality solution dedicated to protecting alarm system keypads and control panels. The product has been designed for the aesthetic and secure mounting of control devices inside buildings. Made of durable 0.7 mm thick steel sheet, powder-coated in white, it provides excellent mechanical protection and high resistance to external factors.
The main advantage of this enclosure is the integrated tamper protection, which reacts to unauthorized opening of the door, significantly increasing the security level of the entire alarm system. Additionally, the enclosure is lockable (two keys are included), which prevents unauthorized access to the keypad's function buttons. This is particularly important in public places or common corridors where there is a risk of accidental or intentional damage to the keypad.
The design of the OBU-M-LCD-S enclosure is fully compatible with a wide range of popular Satel keypad models, including the CA-5, CA-6, CA-10 series, and modern LCD keypads from the INT-KLCDS series. Thanks to precise manufacturing and well-thought-out mounting holes, the installation of the keypad inside is fast, stable, and trouble-free. The aesthetic appearance and neutral white color make the product blend perfectly with the decor of offices, single-family homes, and modern industrial facilities.
By choosing the Pulsar AWO350 enclosure, you gain the certainty that a key element of your alarm system is protected against mechanical damage and sabotage attempts. The solid metal construction guarantees long-term durability and reliability, and the key locking system provides full control over access to the device. It is an essential element of every professional alarm installation that takes care of the security and integrity of the user interface, ensuring peace of mind for installers and facility owners.
Specification
Product type
Metal enclosure for alarm keypads and control panels
Purpose
Mechanical and tamper protection for alarm system control devices
Satel compatibility
CA-5 KLED-S, CA-6 KLED-S, CA-10 KLED-S, CA-5 KLCD-S, CA-5 BLUE-S, CA-10 KLCD-S, CA-10 BLUE-S, INT-KLCDS-GR, INT-KLCDS-BL
Material
DC01 steel sheet with a thickness of 0.7mm, high structural rigidity
Surface protection
Powder coating, white color RAL 9003, scratch resistance
Tamper protection
1 microswitch reacting to enclosure opening, parameters: 0.5A@30V DC max. NC
Locking system
Mechanical cylinder lock with key (key code 1000)
Operating conditions
Environmental class II, temperature range from -10°C to +40°C
Compliance with standards
Designed in accordance with PN-EN 50131-1 Grade 2 requirements
Mounting method
Vertical surface mounting, mounting holes in the rear part of the enclosure
Internal space
Optimized for the dimensions of S (Small) series keypads
Net weight
0.73 kg (enclosure only without additional equipment)
Gross weight
0.79 kg (weight with unit packaging)
External dimensions
197 mm (height) x 136 mm (width) x 48 mm (depth)
Manufacturer warranty
24 months (2 years) from the date of sale
Contents
1x Pulsar metal enclosure
2x Cylinder lock key
1x Set of mounting screws
1x Tamper microswitch
Dimensions, Weight
Product dimensions: 48 x 136 x 197 mm (D x W x H)
Packaging dimensions: 50 x 145 x 220 mm (D x W x H)
Product weight: 730 g
Weight with packaging: 790 g
