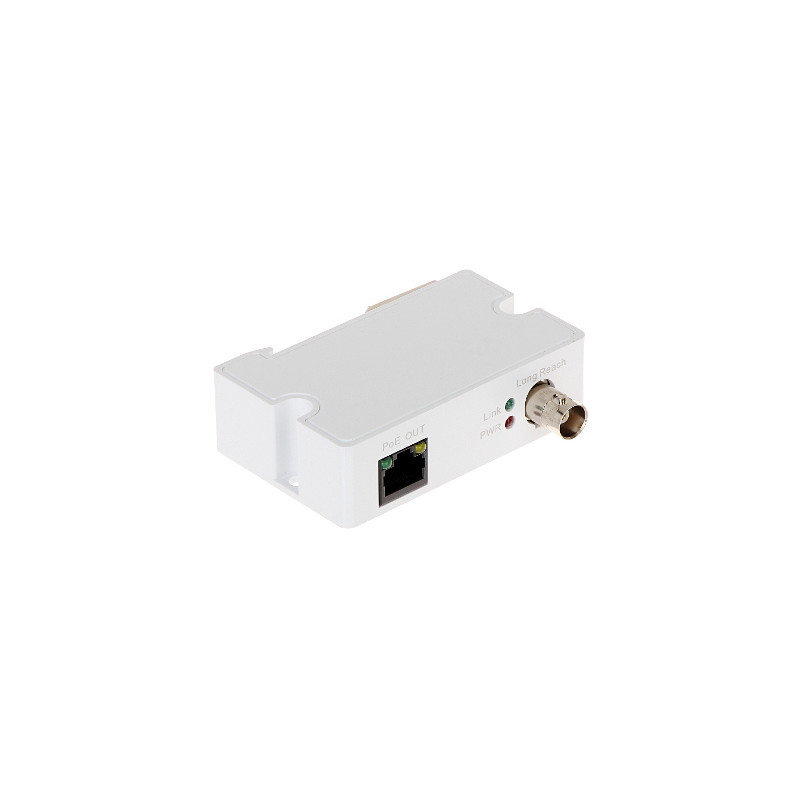

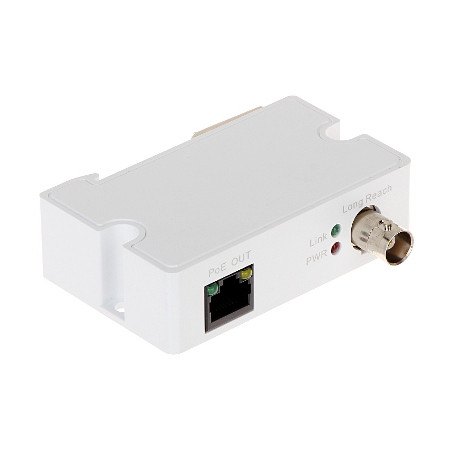

Ethernet PoE Extender over coaxial cable ePoE range up to 1000m IP signal converter transmitter BNC RJ45

Model: DAHUA LR1002-1ET-V3

EAN: 6931240044209 SKU: 931044203

• Extension of data transmission and PoE power supply over coaxial cable
• Support for PoE 802.3af, 802.3at and ePoE standards
• Transmission range up to 1000 meters (at 10 Mbps)
• Transmission speed 10/100 Mbps
• No configuration required - Plug & Play device
• Automatic MDI/MDI-X transmission mode detection
• Possibility of mounting on TS-35 DIN rail or on the wall
• Built-in effective surge protection
• Operation from the IP camera side
• Compatibility with a wide range of IP cameras and network devices

Description

A professional extender is an innovative solution that allows for the transmission of Ethernet signals and PoE power over extremely long distances using traditional coaxial cable. This device is an ideal choice when upgrading analog systems to IP systems, as it eliminates the need to replace existing cabling, which significantly reduces costs and labor time.

Product advantages:

- Huge transmission range: Ability to transmit data over a distance of up to 1000 meters at 10 Mbps or up to 400 meters at 100 Mbps.

- ePoE technology: Support for the advanced Dahua ePoE standard, which optimizes power and video transmission in surveillance systems.

- Cost savings: Use of old coaxial infrastructure (RG-59 and similar) to support modern IP cameras.

- Simplicity of installation: Plug & Play device, requires no IP or MAC address configuration.

- Mounting versatility: Compact housing allows for wall mounting or TS-35 DIN rail mounting, which facilitates organization in telecommunications cabinets.

- Safety: Built-in surge protection protects connected equipment against sudden voltage spikes.

- Automation: MDI/MDI-X auto-detection function automatically recognizes the data transmission mode, ensuring a stable connection.

The device operates from the camera side, receiving the signal from the coaxial cable and passing it to the camera via a short section of UTP twisted pair. It is a reliable link in professional security systems that combines durability with modern network technology.

Specification

Device type

Ethernet + PoE Extender (Transmitter)

LAN ports

1 pc. RJ45 (10/100 Base-T)

Transmission ports

1 pc. BNC (coaxial cable)

Transmission speed

10 Mbps / 100 Mbps (Full Duplex)

Transmission range (10 Mbps)

Maximum 1000 meters (depending on cable quality and power consumption)

Transmission range (100 Mbps)

Maximum 400 meters (depending on cable quality and power consumption)

Protections

Advanced surge protection

Power standards

ePoE, PoE (802.3af/at)

PoE pin configuration

Power transmitted on pins 1, 2 and 3, 6

Additional functions

Plug & Play, MDI/MDI-X auto-detection, support for IP cameras and network devices

Mounting

Wall-mounted or on TS-35 DIN rail (requires bracket)

Cable requirements

Coaxial cable (main transmission), UTP cat. 5e to camera (max. 2 m)

Technology and Software

The device uses ePoE (Enhanced Power over Ethernet) technology developed by Dahua. This technology enables intelligent power and signal management over long distances. The system automatically negotiates connection parameters, optimizing the stability of the video data stream depending on the impedance and attenuation of the cable. Thanks to built-in logic, the extender ensures smooth high-resolution image transmission without the need for additional signal regenerators along the way. It is a fully hardware-based solution that does not require external management software, which guarantees the highest reliability in difficult industrial conditions.

Physical parameters

Weight: 0.07 kg, Dimensions: 79 x 64 x 23 mm, High-quality plastic housing

Contents

1x Extender LR1002-1ET-V3 (Transmitter)

1x User manual

Dimensions, Weight

Product dimensions: 23 x 79 x 64 mm (D x W x H)

Package dimensions: 80 x 115 x 80 mm (D x W x H)

Product weight: 70 g

Weight with packaging: 120 g
