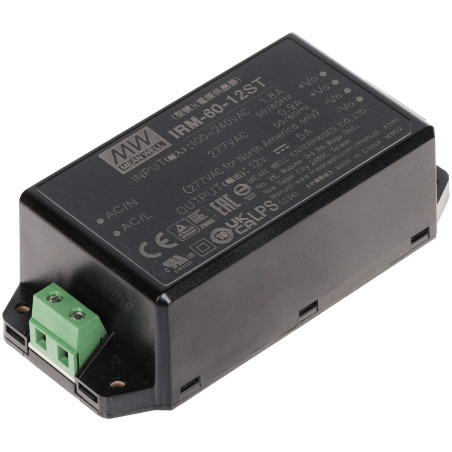

12V 5A 60W modular switching power supply AC/DC for built-in mounting stabilized efficient MEAN WELL IRM-60-12ST
zł143.09
Tax included
The IRM-60-12ST switching power supply is an advanced power solution from the renowned manufacturer MEAN WELL, designed for maximum reliability in a compact form. It is a single-output AC/DC power module that is ideal for a wide range of applications, from industrial automation to advanced CCTV video surveillance systems. Due to its small size, this device is extremely easy to integrate inside the housings of other devices where mounting space is a critical factor.
A key advantage of the power supply is its high energy efficiency and ability to operate in a wide input voltage range from 100V to 240V AC, making it a universal product for global markets. The device provides a stable 12V DC voltage at an output current of up to 5A, which totals 60W of power. Solid construction and rigorous quality tests guarantee the longevity of the product, which is confirmed by a 3-year manufacturer's warranty. The power supply has been designed to minimize heat emission, which translates into the stability of the entire system.
Operational safety is ensured by built-in protection systems: short-circuit, overload, and overvoltage. They protect both the power supply itself and the connected receivers against unforeseen electrical grid failures. An important technical aspect is the design of the output terminals – the +V and -V terminal pairs are physically shorted together, which significantly simplifies the wiring process and allows for clean, organized connections without the need for external jumpers. When planning the installation, it is worth remembering the manufacturer's recommendation regarding continuous operation (24h), where the load should not exceed 80% of the maximum current, which optimizes thermal conditions and extends the life of electronic components.
12V 5A 60W modular switching power supply AC/DC for built-in mounting stabilized efficient
Model: MEAN WELL IRM-60-12ST
EAN: 6931240048122 SKU: 931048123
- High efficiency and reliability confirmed by the MEAN WELL brand
- Compact, modular housing ideal for installation inside devices
- Wide input voltage range 100-240V AC
- Stabilized 12V DC output voltage with 60W power
- Complete protection package: short-circuit, overload, overvoltage
- Wide operating temperature range from -30°C to +70°C
- Dual, physically shorted output terminals for easy installation
- Long 3-year warranty period
Description
The IRM-60-12ST switching power supply is an advanced power solution from the renowned manufacturer MEAN WELL, designed for maximum reliability in a compact form. It is a single-output AC/DC power module that is ideal for a wide range of applications, from industrial automation to advanced CCTV video surveillance systems. Due to its small size, this device is extremely easy to integrate inside the housings of other devices where mounting space is a critical factor.
A key advantage of the power supply is its high energy efficiency and ability to operate in a wide input voltage range from 100V to 240V AC, making it a universal product for global markets. The device provides a stable 12V DC voltage at an output current of up to 5A, which totals 60W of power. Solid construction and rigorous quality tests guarantee the longevity of the product, which is confirmed by a 3-year manufacturer's warranty. The power supply has been designed to minimize heat emission, which translates into the stability of the entire system.
Operational safety is ensured by built-in protection systems: short-circuit, overload, and overvoltage. They protect both the power supply itself and the connected receivers against unforeseen electrical grid failures. An important technical aspect is the design of the output terminals – the +V and -V terminal pairs are physically shorted together, which significantly simplifies the wiring process and allows for clean, organized connections without the need for external jumpers. When planning the installation, it is worth remembering the manufacturer's recommendation regarding continuous operation (24h), where the load should not exceed 80% of the maximum current, which optimizes thermal conditions and extends the life of electronic components.
Specification
Power supply type
Switching - modern technology ensuring high energy conversion efficiency with minimal heat loss.
Supply voltage
100 ... 240 V AC - universal input range allowing operation in almost any power grid in the world.
Operating frequency
50 / 60 Hz - standard grid frequency.
Output voltage
12 V DC - precisely stabilized DC voltage for demanding electronics.
Output voltage regulation
None - the device has a factory-set, stable output voltage without the possibility of manual adjustment.
Power supply current efficiency
5 A - maximum current that the power supply can deliver to the load under rated conditions.
Power supply power
60 W - total rated power of the device at full load.
Number of outputs
1 pc. - single output section equipped with duplicated terminals for installer convenience.
Short-circuit protection
Yes - automatic power cut-off in case of a short circuit in the secondary circuit.
Overload protection
Yes - protection against current draw exceeding the power supply's rated parameters.
Overvoltage protection
Yes - advanced circuit protecting against the effects of sudden voltage spikes in the power grid.
Operating temperature / humidity
Very wide range from -30 °C to 70 °C at relative humidity from 20 % to 90 %, which allows for operation in harsh industrial conditions.
Construction and mounting
Modular housing with dimensions 109 x 53 x 34 mm, designed for mounting inside other devices or control cabinets.
Operational recommendations
For continuous operation (24/7 mode), it is recommended that the load current does not exceed 80% of the maximum value (i.e., 4A), which ensures optimal durability.
Warranty and brand
MEAN WELL brand product covered by a 3-year warranty, which proves the highest quality of workmanship and durability of components.
Contents
1x IRM-60-12ST switching power supply
1x User manual
Dimensions, Weight
Product dimensions: 34 x 109 x 53 mm (D x W x H)
Package dimensions: 40 x 115 x 60 mm (D x W x H)
Product weight: 210 g
Weight with packaging: 222 g
