- New

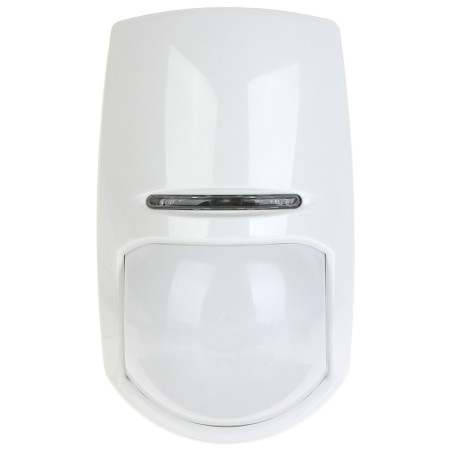

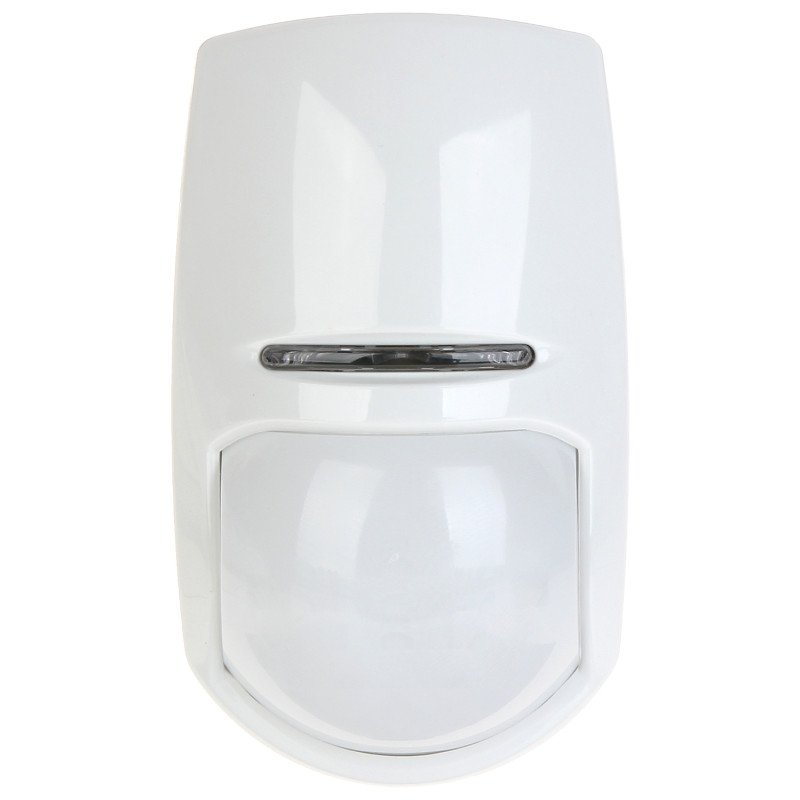

Digital passive infrared PIR indoor detector Grade 2 15m range Quad Pyroelement alarm system PYRONIX FPKX15DQ
zł137.58
Tax included
The professional digital passive infrared detector FPKX15DQ is an advanced solution in the field of security systems, designed by the renowned manufacturer Pyronix. This device forms the foundation of an effective alarm system, offering unparalleled detection precision thanks to the use of a Quad pyroelement. The main advantage of this model is its high resistance to false alarms, achieved through advanced digital temperature compensation and intelligent signal processing algorithms.
The detector features a wide viewing angle of 85 degrees and an impressive detection range of up to 15 meters, allowing for effective protection of large residential, office, or commercial spaces. The device meets rigorous Grade 2 security standards, confirming its suitability for low to medium-risk installations. The solid housing with a modern design blends discreetly into any interior, and the wide operating temperature range from -30°C to +70°C guarantees reliability in all environmental conditions.
An additional advantage is the 5-year manufacturer warranty, which testifies to the highest quality of workmanship and confidence in the durability of the components. Installation of the device is intuitive thanks to the well-thought-out internal design and the ability to configure alarm outputs in NC, EOL-NC, and 2EOL-NC standards. By choosing this model, you are investing in peace of mind and security based on proven British motion detection technology.
Digital passive infrared PIR indoor detector Grade 2 15m range Quad Pyroelement alarm system
Model: PYRONIX FPKX15DQ
EAN: 6931240071144 SKU: 931071144
- Quad pyroelement for highest detection precision
- Compliance with Grade 2 security standard (EN50131)
- Wide detection range up to 15 meters at an 85-degree angle
- Digital temperature compensation for stable operation in various conditions
- Automatic and manual 2-stage sensitivity adjustment
- Support for EOL and 2EOL parametric resistor configuration
- Very wide operating temperature range from -30°C to +70°C
- Long 5-year manufacturer warranty
Description
The professional digital passive infrared detector FPKX15DQ is an advanced solution in the field of security systems, designed by the renowned manufacturer Pyronix. This device forms the foundation of an effective alarm system, offering unparalleled detection precision thanks to the use of a Quad pyroelement. The main advantage of this model is its high resistance to false alarms, achieved through advanced digital temperature compensation and intelligent signal processing algorithms.
The detector features a wide viewing angle of 85 degrees and an impressive detection range of up to 15 meters, allowing for effective protection of large residential, office, or commercial spaces. The device meets rigorous Grade 2 security standards, confirming its suitability for low to medium-risk installations. The solid housing with a modern design blends discreetly into any interior, and the wide operating temperature range from -30°C to +70°C guarantees reliability in all environmental conditions.
An additional advantage is the 5-year manufacturer warranty, which testifies to the highest quality of workmanship and confidence in the durability of the components. Installation of the device is intuitive thanks to the well-thought-out internal design and the ability to configure alarm outputs in NC, EOL-NC, and 2EOL-NC standards. By choosing this model, you are investing in peace of mind and security based on proven British motion detection technology.
Specification
Application
Indoor, intrusion and hold-up alarm systems
Pyroelement
Quad (Quad Zone Logic) - increased stability and precision
Sensor type
Passive infrared (PIR) with digital signal processing
Detection range
15 meters / 85-degree viewing angle
Sensitivity adjustment
Automatic (adaptation to environment) or manual (2-stage)
Pet immunity
None (model dedicated to full space protection)
Maximum output load
50 mA / 60 V DC, 42 V AC RMS (safe relay contacts)
Digital temperature compensation
Yes - automatic adjustment of detection threshold to ambient temperature
Alarm output
Configurable: NC (normally closed), EOL-NC, 2EOL-NC
Power supply and current consumption
Voltage: 9 V ... 16 V DC; Current consumption: maximum 16 mA at 12 V
Detectable movement speed
From 0.3 m/s to 3.0 m/s (wide range of intruder detection)
Security grade
Grade 2 - certified protection for residential and commercial facilities
Operating conditions
Temperature: -30 °C ... 70 °C; Purpose: dry rooms
Product identification
Brand: PYRONIX; SAP code: 361300084; Manufacturer code: KX15DQ
Software and logic
The device uses advanced Blue Wave Technology (BWT), which is an integral firmware of the detector. This system is responsible for digital processing of the signal reaching the pyroelement, eliminating interference from air currents or lighting changes. The algorithm automatically adjusts the detector's sensitivity to changing environmental conditions, which minimizes the risk of false alarms while maintaining maximum effectiveness in detecting actual human movement. The system also monitors the supply voltage status and the correct operation of key electronic components.
Contents
1x PIR detector FPKX15DQ
1x Set of mounting screws
1x User manual
1x Wide-angle lens (installed)
Dimensions, Weight
Product dimensions: 51 x 68 x 116 mm (D x W x H)
Packaging dimensions: 160 x 70 x 55 mm (D x W x H)
Product weight: 100 g
Weight with packaging: 160 g
