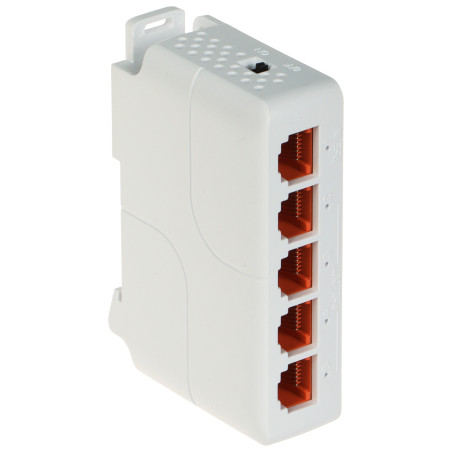

Gigabit PoE Ethernet Extender 3-port PoE VLAN Switch DIN Rail LAN Signal Regenerator 100m PULSAR EXT-POEG4DIN
zł152.73
Tax included
The EXT-POEG4DIN extender is a professional device by Pulsar, designed for advanced IP monitoring systems and modern computer networks. Its key function is to effectively increase the transmission distance of Ethernet data and PoE power by another 100 meters using standard UTP cat. 5/5e cabling. It is an ideal solution in situations where the distance between the switch and the end device, such as an IP camera or access point, exceeds the standard 100 meters.
Product advantages:
- No need for additional power supplies at the extender installation site, which significantly reduces costs and simplifies cabling structure.
- Full support for PoE 802.3af, 802.3at, and 802.3bt standards, allowing power supply for even the most demanding high-power devices.
- Gigabit Ethernet speed (10/100/1000 Mbps) guarantees the highest bandwidth, necessary for smooth image transmission in 4K and 8K resolutions.
- Built-in VLAN function allows for isolation of output ports, which increases network security and eliminates broadcast storms.
- Compact housing adapted for DIN rail TH-35 mounting enables easy integration into distribution cabinets.
- The device acts as an active signal regenerator, eliminating transmission errors over long distances.
- Robust construction and a wide operating temperature range ensure reliability in professional industrial installations.
- Intelligent protection system protects connected devices against short circuits and overloads, which is crucial for the durability of the entire monitoring system.
Gigabit PoE Ethernet Extender 3-port PoE VLAN Switch DIN Rail LAN Signal Regenerator 100m
Model: PULSAR EXT-POEG4DIN
EAN: 6931240057469 SKU: 931057469
- Extends Ethernet transmission and PoE power range by another 100 meters
- Supports PoE standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
- Gigabit Ethernet transmission speed 10/100/1000 Mbps
- Built-in VLAN function switch for port isolation
- DIN rail TH-35 mounting or direct surface mounting
- Powered directly from the PoE switch (no external power supply required)
- Three PoE output ports allowing connection of multiple devices
- Advanced short-circuit and overload protection
- LED status indication
- Compact dimensions for easy installation in small enclosures
Description
The EXT-POEG4DIN extender is a professional device by Pulsar, designed for advanced IP monitoring systems and modern computer networks. Its key function is to effectively increase the transmission distance of Ethernet data and PoE power by another 100 meters using standard UTP cat. 5/5e cabling. It is an ideal solution in situations where the distance between the switch and the end device, such as an IP camera or access point, exceeds the standard 100 meters.
Product advantages:
- No need for additional power supplies at the extender installation site, which significantly reduces costs and simplifies cabling structure.
- Full support for PoE 802.3af, 802.3at, and 802.3bt standards, allowing power supply for even the most demanding high-power devices.
- Gigabit Ethernet speed (10/100/1000 Mbps) guarantees the highest bandwidth, necessary for smooth image transmission in 4K and 8K resolutions.
- Built-in VLAN function allows for isolation of output ports, which increases network security and eliminates broadcast storms.
- Compact housing adapted for DIN rail TH-35 mounting enables easy integration into distribution cabinets.
- The device acts as an active signal regenerator, eliminating transmission errors over long distances.
- Robust construction and a wide operating temperature range ensure reliability in professional industrial installations.
- Intelligent protection system protects connected devices against short circuits and overloads, which is crucial for the durability of the entire monitoring system.
Specification
Device type
Ethernet + PoE Extender, active signal regenerator
Number of inputs
1 pc. - RJ-45 socket (PoE IN)
Number of outputs
3 pcs. - RJ-45 socket (PoE OUT)
Power standards
Compliant with PoE (802.3af/at/bt) : 48 V ... 57 V DC
Output voltage
Compliant with supply voltage (passed through directly)
Output current Port 2
0.9 A - Compliant with PoE (802.3af/at/bt)
Output current Ports 3/4
0.5 A - Compliant with PoE (802.3af/at)
Total output current
Maximum 0.9 A for all ports
PoE IN power pairs
1/2 (+) 3/6(-) and 4/5 (+) 7/8 (-)
PoE OUT power pairs
1/2 (+) 3/6(-) and 4/5 (+) 7/8 (-)
Ethernet interface
10/100/1000 Mbps (Gigabit Ethernet)
Protections
Short-circuit (SCP), Overload (OLP)
Signaling
LEDs indicating power and data transmission
Additional functions
VLAN support - enabled via a dedicated mechanical switch on the housing
Mounting
DIN rail TH-35 or surface mounting using screws
Operating temperature
-10 °C ... 40 °C
Software and logic
The device uses advanced hardware logic to manage network traffic and power distribution. The VLAN (Virtual Local Area Network) function is implemented by isolating output ports, which prevents unauthorized communication between end devices and optimizes bandwidth by reducing broadcast traffic. The real-time power monitoring system automatically manages power priorities, ensuring stable operation of the highest performance port (Port 2) and protecting the entire structure against current overload. The device operates in Plug&Play mode, requiring no external configuration software, which eliminates the risk of network setting errors.
Contents
1x Extender EXT-POEG4DIN
1x User manual
Dimensions, Weight
Product dimensions: 23 x 85 x 57 mm (D x W x H)
Package dimensions: 25 x 90 x 60 mm (D x W x H)
Product weight: 70 g
Weight with packaging: 80 g
