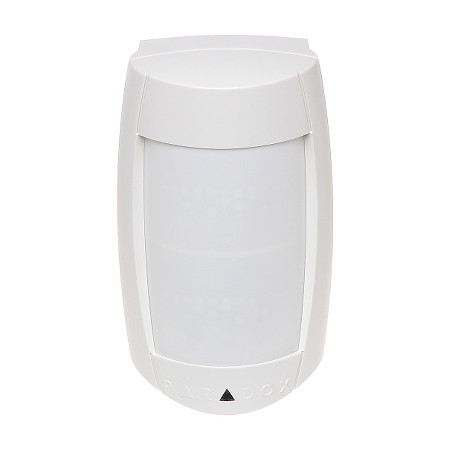

Digital PIR motion detector pet immune up to 40kg range 11m angle 90 degrees Grade 2 PARADOX DG75+-P2C
zł170.40
Tax included
The Paradox DG75+-P2C is a professional digital PIR motion detector designed for the highest level of indoor security. This device is distinguished by its unique immunity to pets weighing up to 40 kg, making it an ideal solution for dog and cat owners, eliminating the risk of false alarms caused by pets. Thanks to the use of two dual pyroelements and advanced, patented motion analysis, the detector ensures precise intruder detection while maintaining operational stability in difficult environmental conditions.
A key advantage of the DG75+-P2C model is the use of digital pulse signal processing technology and the Digital Shield algorithm. These solutions allow for intelligent differentiation between human movement and background interference or the movement of small objects. Fresnel lenses with a built-in UV filter additionally protect the device against the negative impact of sunlight, which translates into the longevity and reliability of the system. The detector is EN50131-2-2 Grade 2 certified, confirming its high quality and suitability for professional alarm systems with low to medium risk levels.
Installation of the device is extremely simple and flexible – the recommended installation height is between 2.0 and 2.7 meters, which allows for optimal coverage of an area of 11 by 11 meters at a 90-degree viewing angle. The solid white housing blends discreetly into the decor of any interior, and built-in tamper protection guards against unauthorized opening of the detector. By choosing a Paradox brand product, you are investing in proven solutions from a Canadian leader in the security industry, which guarantees peace of mind and the safety of your property for many years.
Digital PIR motion detector pet immune up to 40kg range 11m angle 90 degrees Grade 2
Model: PARADOX DG75+-P2C
EAN: 6931240095898 SKU: 931095890
- Digital passive infrared (PIR) detector
- Full immunity to pets weighing up to 40 kg
- Use of two dual pyroelements for better detection
- Advanced Digital Shield algorithm reducing false alarms
- Fresnel lenses with UV filter protecting against light
- Compliance with EN50131-2-2 Grade 2 safety standard
- Patented motion analysis without analog signal processing
- Built-in tamper protection
- Wide 90-degree viewing angle and range up to 11 meters
- Stable operation in a wide temperature range from -20°C to 50°C
Description
The Paradox DG75+-P2C is a professional digital PIR motion detector designed for the highest level of indoor security. This device is distinguished by its unique immunity to pets weighing up to 40 kg, making it an ideal solution for dog and cat owners, eliminating the risk of false alarms caused by pets. Thanks to the use of two dual pyroelements and advanced, patented motion analysis, the detector ensures precise intruder detection while maintaining operational stability in difficult environmental conditions.
A key advantage of the DG75+-P2C model is the use of digital pulse signal processing technology and the Digital Shield algorithm. These solutions allow for intelligent differentiation between human movement and background interference or the movement of small objects. Fresnel lenses with a built-in UV filter additionally protect the device against the negative impact of sunlight, which translates into the longevity and reliability of the system. The detector is EN50131-2-2 Grade 2 certified, confirming its high quality and suitability for professional alarm systems with low to medium risk levels.
Installation of the device is extremely simple and flexible – the recommended installation height is between 2.0 and 2.7 meters, which allows for optimal coverage of an area of 11 by 11 meters at a 90-degree viewing angle. The solid white housing blends discreetly into the decor of any interior, and built-in tamper protection guards against unauthorized opening of the detector. By choosing a Paradox brand product, you are investing in proven solutions from a Canadian leader in the security industry, which guarantees peace of mind and the safety of your property for many years.
Specification
Application
Indoor - ideal for homes, offices, and commercial facilities.
Pyroelement
2 x Dual - provides doubled precision in detecting temperature changes.
Sensor type
Passive infrared (PIR) with digital processing path.
Detection range
11 x 11 meters - optimal coverage for standard rooms.
Detection angle
90° - wide field of view eliminating blind spots.
Recommended installation height
2.0 m ... 2.7 m - allows for maintaining pet immunity parameters.
Sensitivity adjustment
Yes - possibility to adjust to the specifics of the protected facility.
Pet immunity
< 40 kg - advanced optics ignore the presence of dogs and cats.
Maximum output load
28V DC / 100 mA - standard parameters for alarm control panels.
Alarm outputs
NC (Normally Closed) - compatible with most intrusion detection systems.
Violation signaling time
5 seconds - precise information about detected motion.
Detectable movement speed
0.2 m/s ... 3.5 m/s - detects both slow creeping and fast running.
Power supply and current consumption
11V ... 16V DC, maximum current consumption is 40 mA.
Software and algorithms
The device uses a proprietary Digital Shield algorithm and digital pulse signal processing technology. The detector's firmware analyzes the signal from two dual pyroelements in real-time, effectively eliminating thermal, electrical, and animal-induced interference. Thanks to advanced digital logic, the system can precisely distinguish a human heat signature from background noise, which drastically reduces the number of false alarms while maintaining maximum detection sensitivity. The signal processor also manages the test mode, allowing the installer to accurately verify the field of view.
Certificates and standards
EN50131-2-2 Grade 2, Environmental Class II - guarantee of professional protection.
Operating conditions
Operating temperature from -20°C to 50°C, white housing color.
Country of origin
Canada - product from the renowned global manufacturer Paradox.
Contents
1x PIR detector DG75+-P2C
1x User manual
1x Set of mounting screws
Dimensions, Weight
Product dimensions: 60 x 74 x 126 mm (D x W x H)
Packaging dimensions: 60 x 75 x 130 mm (D x W x H)
Product weight: 130 g
Weight with packaging: 162 g
