- New

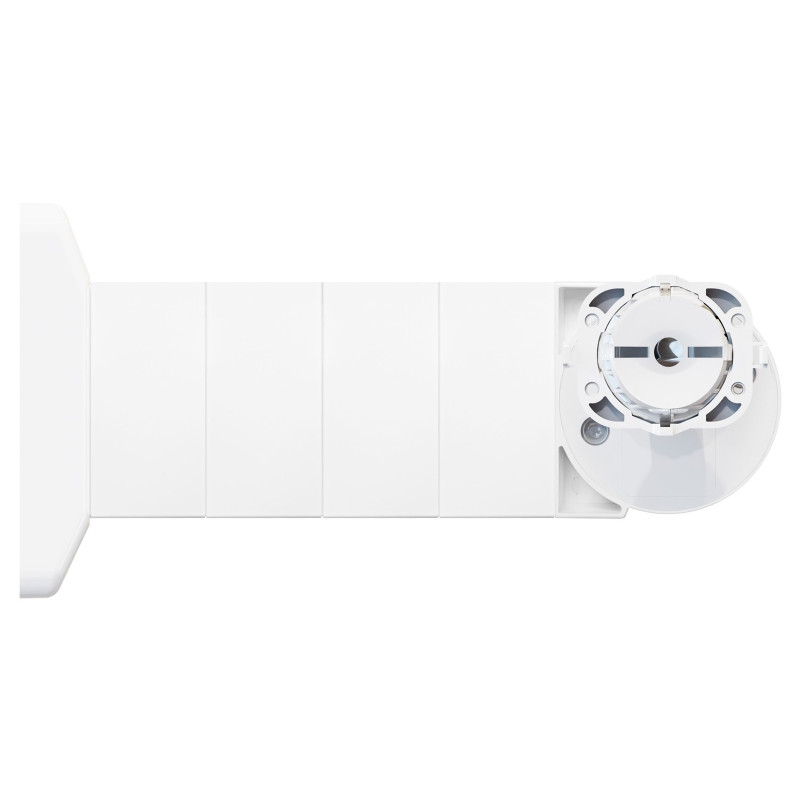

Adjustable modular wall and ceiling mount for motion detectors white alarm system accessories SATEL BRACKET-E-OPAL-EX
zł171.35
Tax included
We present a professional, complete modular bracket designed by the renowned company SATEL. It is an ideal solution for alarm system installers looking for a reliable and aesthetic way to mount motion detectors. This advanced mounting kit was created for the external OPAL series detectors (including Plus and Pro versions) and AOD-210 wireless detectors. Thanks to its modular design, the bracket offers unprecedented flexibility, allowing for optimal positioning of the detector's field of view in any terrain conditions.
The main advantages of the product are primarily high-quality workmanship and resistance to variable weather conditions, which is crucial for outdoor installations. The bracket allows for mounting on both flat wall surfaces and ceilings, which significantly expands the design possibilities of the security system. The construction allows for precise adjustment of the detector's tilt angle in two planes, which guarantees the elimination of dead zones and maximizes the effectiveness of intruder detection.
By choosing an original SATEL bracket, you are assured of full mechanical compatibility with dedicated detectors. The set includes all necessary spacers and joints that allow the detector to be moved away from the wall, which is especially useful in the presence of architectural obstacles such as gutters or cornices. The white color of the housing makes the device discreetly blend into the building's facade, maintaining the aesthetics of the object. It is an essential element of every professional alarm system, ensuring stability and durability of the installation for many years of operation.
Adjustable modular wall and ceiling mount for motion detectors white alarm system accessories
Model: SATEL BRACKET-E-OPAL-EX
EAN: 6931240022351 SKU: 931022356
- Complete modular mounting bracket
- Designed for OPAL series and AOD-210 detectors
- Wall or ceiling mounting capability
- Smooth multi-axis adjustment
- High resistance to weather conditions and UV radiation
- Aesthetic white housing color
- Easy installation thanks to modular design
- Product by Polish manufacturer SATEL
Description
We present a professional, complete modular bracket designed by the renowned company SATEL. It is an ideal solution for alarm system installers looking for a reliable and aesthetic way to mount motion detectors. This advanced mounting kit was created for the external OPAL series detectors (including Plus and Pro versions) and AOD-210 wireless detectors. Thanks to its modular design, the bracket offers unprecedented flexibility, allowing for optimal positioning of the detector's field of view in any terrain conditions.
The main advantages of the product are primarily high-quality workmanship and resistance to variable weather conditions, which is crucial for outdoor installations. The bracket allows for mounting on both flat wall surfaces and ceilings, which significantly expands the design possibilities of the security system. The construction allows for precise adjustment of the detector's tilt angle in two planes, which guarantees the elimination of dead zones and maximizes the effectiveness of intruder detection.
By choosing an original SATEL bracket, you are assured of full mechanical compatibility with dedicated detectors. The set includes all necessary spacers and joints that allow the detector to be moved away from the wall, which is especially useful in the presence of architectural obstacles such as gutters or cornices. The white color of the housing makes the device discreetly blend into the building's facade, maintaining the aesthetics of the object. It is an essential element of every professional alarm system, ensuring stability and durability of the installation for many years of operation.
Specification
Purpose
Professional mounting of external motion detectors of the OPAL and AOD-210 series
Compatibility
Full compatibility with SATEL OPAL, SATEL OPAL Plus, SATEL OPAL Pro models and AOD-210 dual wireless detectors operating in ABAX and ABAX 2 systems
Mounting type
Universal mount allowing for installation of the device on a wall (facade) or ceiling (soffit)
Angle adjustment
Possibility of smooth adjustment of the detector's tilt angle vertically and horizontally, which allows for precise aiming of the detection beam at the protected area
Modular construction
The set consists of interchangeable elements that can be combined depending on installation needs, allowing for different distances from the surface
Material
High-quality plastic with increased resistance to UV radiation and extreme outdoor temperatures
Color
Aesthetic white color, matching most residential and industrial building facades
Environmental resistance
Product adapted for operation in difficult outdoor conditions, resistant to rain, snow, and strong sunlight
Application
Intrusion and robbery signaling systems (SSWiN), perimeter protection, outdoor monitoring
Spacers
The set includes BRACKET-E-3 spacers (4 pieces), allowing the detector to be moved away from the wall to avoid obstacles
Joints
The use of ball and angle joints ensures freedom in maneuvering the sensor position
Technical dimensions
Basic dimensions are 122 x 95 mm, depth adjustable in the range from 121 mm to 211 mm depending on the number of spacer modules used
Device weight
The net weight of the bracket changes with the configuration and ranges from 158 grams to 230 grams for the full set
Manufacturer warranty
The product is covered by a full 2-year warranty from SATEL, which confirms its high reliability
Software
The product is a mechanical accessory and does not have built-in firmware or a dedicated mobile application. Its functionality is based on physical support for mounting detectors, which can be managed by SATEL INTEGRA or VERSA alarm systems using the Integra CONTROL mobile application. This application allows for remote viewing of the status of detectors mounted on the brackets, checking violations, and configuring sensitivity in the case of digital models. The bracket itself provides a stable base for the proper operation of motion detection algorithms contained in the detector software.
Contents
1x BRACKET-E-1 base
1x BRACKET-E-2B joint
4x BRACKET-E-3 spacer
1x BRACKET-E-4 connector
1x BRACKET-E-5 ceiling mount
2x BRACKET-E-6 insert
Dimensions, Weight
Product dimensions: 211 x 122 x 95 mm (Depth x Width x Height)
Packaging dimensions: 55 x 290 x 145 mm (Depth x Width x Height)
Product weight: 230 g
Weight with packaging: 318 g
