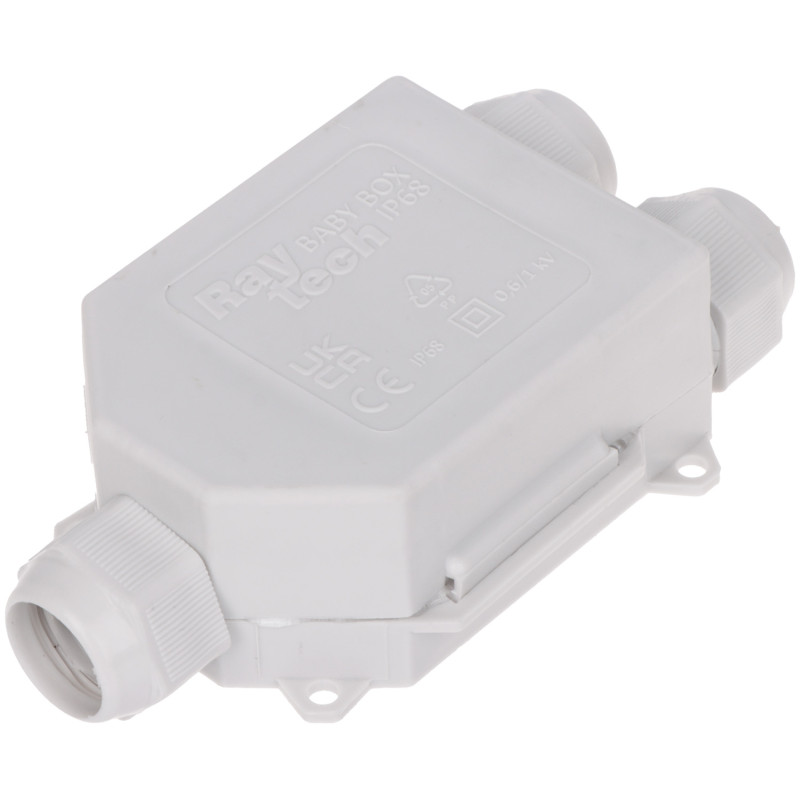

Hermetic gel junction box IP68 for ground garden cable sleeve gelbox waterproof cable insulation RayTech BABY-BOX
zł154.98
Tax included
The BABY-BOX junction box is an innovative and reliable solution in the field of electrical connection encapsulation, developed by the renowned company RayTech. This product has been designed to provide maximum protection for electrical installations operating in extremely difficult conditions, such as high humidity, direct exposure to water, or direct burial in the ground. Thanks to the use of unique gel filling technology, the BABY-BOX achieves an IP68 protection class, which means complete dust-tightness and protection against the effects of continuous immersion in water. It is an ideal solution for securing connections in garden lighting, irrigation systems, gate power supplies, and CCTV video surveillance installations.
One of the key advantages of this product is its remarkable ease and speed of installation. The box is supplied as a ready-to-use product, factory-filled with a specialized silicone gel. The installation process does not require mixing any substances, using specialized tools, or waiting for the sealing compound to cure – protection is active immediately after closing the housing. The gel used is completely non-toxic, safe for the user and the environment, and most importantly, it does not lose its insulating properties over time. The design of the box has been thought out to allow installation in any orientation, both vertical and horizontal, without fear of the gel leaking out.
Another significant advantage is the full serviceability of the connection. In case of the need to modify the installation or perform control measurements, the box can be opened at any time. The gel remains soft and flexible, which allows for its easy removal and re-securing of the connector. The box housing is characterized by high resistance to mechanical damage and the negative impact of UV radiation, which guarantees the longevity of the product even when exposed to the sun. By choosing the BABY-BOX gel box, you gain the certainty that your electrical connections are protected in a professional, durable, and compliant manner with the highest safety standards. It is an investment that eliminates the risk of failures caused by corrosion or short circuits resulting from moisture in the contacts.
Hermetic gel junction box IP68 for ground garden cable sleeve gelbox waterproof cable insulation
Model: RayTech BABY-BOX
EAN: 6931240011812 SKU: 931011810
- Highest IP68 protection class
- Factory-filled with non-toxic silicone gel
- Can be installed directly in the ground
- No gel expiration date - does not dry out or harden
- Easy access to the connection (can be opened multiple times)
- Resistant to UV radiation and weather conditions
- Quick installation without the need to mix components
- Can be operated vertically and horizontally
Description
The BABY-BOX junction box is an innovative and reliable solution in the field of electrical connection encapsulation, developed by the renowned company RayTech. This product has been designed to provide maximum protection for electrical installations operating in extremely difficult conditions, such as high humidity, direct exposure to water, or direct burial in the ground. Thanks to the use of unique gel filling technology, the BABY-BOX achieves an IP68 protection class, which means complete dust-tightness and protection against the effects of continuous immersion in water. It is an ideal solution for securing connections in garden lighting, irrigation systems, gate power supplies, and CCTV video surveillance installations.
One of the key advantages of this product is its remarkable ease and speed of installation. The box is supplied as a ready-to-use product, factory-filled with a specialized silicone gel. The installation process does not require mixing any substances, using specialized tools, or waiting for the sealing compound to cure – protection is active immediately after closing the housing. The gel used is completely non-toxic, safe for the user and the environment, and most importantly, it does not lose its insulating properties over time. The design of the box has been thought out to allow installation in any orientation, both vertical and horizontal, without fear of the gel leaking out.
Another significant advantage is the full serviceability of the connection. In case of the need to modify the installation or perform control measurements, the box can be opened at any time. The gel remains soft and flexible, which allows for its easy removal and re-securing of the connector. The box housing is characterized by high resistance to mechanical damage and the negative impact of UV radiation, which guarantees the longevity of the product even when exposed to the sun. By choosing the BABY-BOX gel box, you gain the certainty that your electrical connections are protected in a professional, durable, and compliant manner with the highest safety standards. It is an investment that eliminates the risk of failures caused by corrosion or short circuits resulting from moisture in the contacts.
Specification
Product type
Professional gel junction box Gelbox
Manufacturer
RayTech - leader in gel insulation
Technical application
Encapsulation and insulation of electrical connections in low voltage installations
Protection class
IP68 - full protection against dust and the effects of continuous immersion in water
Voltage insulation
Rated insulation voltage is 1 kV (1000V)
Supported cable cross-section
Design allows for connecting cables with a cross-section of up to 3 x 6 mm²
Outer cable diameter
The box supports cables with an outer diameter ranging from 8 mm to 18 mm
Compatibility with conduits
Special entries allow for the insertion of electrical conduits with a diameter of Ø 16 mm or Ø 20 mm
Sealing material
Advanced, non-toxic silicone gel with excellent dielectric properties
Physical properties of the gel
The substance does not undergo aging processes, does not dry out, does not harden, and remains fully functional
Installation and orientation
Can be installed in any position (vertically, horizontally) without the risk of mass leakage
Internal dimensions
Mounting space with dimensions 87 x 63 x 43 mm
External dimensions
Compact housing with dimensions 92 x 80 x 47 mm
Durability and resistance
Housing resistant to impacts, UV radiation, and aggressive soil conditions
Warranty
24 months (2 years) from the date of purchase
Contents
1x BABY-BOX gel box factory-filled with gel
1x Set of sealing accessories
Dimensions, Weight
Product dimensions: 47 x 92 x 80 mm (D x W x H)
Packaging dimensions: 60 x 190 x 110 mm (D x W x H)
Product weight: 240 g
Weight with packaging: 304 g
