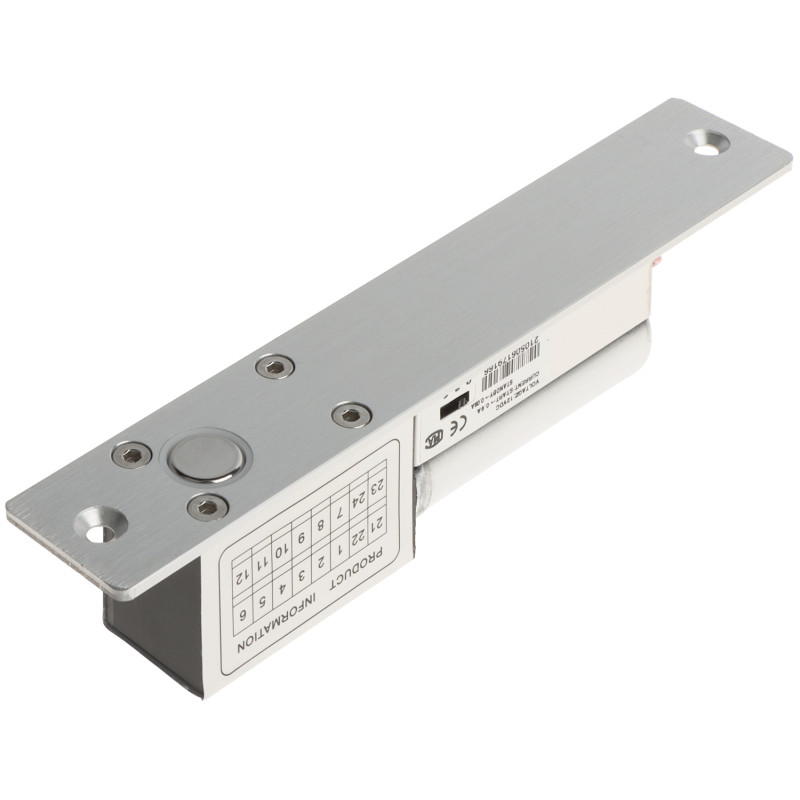

Reversible Electromagnetic Bolt Door Lock 12V DC Time Delay Access Control ATLO ATLO-EB-1
zł170.97
Tax included
The ATLO-EB-1 electromagnetic bolt is a professional device dedicated to access control systems, combining reliability, safety, and modern technical design. It is a reversible model, which in practice means it operates in "fail-safe" mode – in the event of a power failure, the bolt automatically opens. This characteristic is essential in places where the safety of people and the possibility of rapid evacuation are priorities, such as public buildings, office buildings, or schools.
One of the most important advantages of this model is the intelligent lock that prevents the door from closing when it is in the wrong position. This mechanism prevents the bolt from extending until the door leaf is aligned with the hole in the strike plate. This eliminates the risk of damaging the bolt or the door frame, which significantly extends the lifespan of the entire system and reduces maintenance costs.
The device offers the user great flexibility thanks to the built-in time delay switch. The ability to set the delay to 0, 3, or 6 seconds allows for perfect synchronization of the lock with the door closer, preventing the mechanism from jamming when the door returns to the frame too quickly. The solid construction of the ATLO-EB-1 bolt is based on high-quality materials, allowing for unlimited continuous operation without the risk of overheating.
The device is fully universal, meaning it can be mounted in both left and right doors, and its compact dimensions facilitate installation in various types of profiles and frames. By choosing this product, you gain the certainty of a stable security system. Low power consumption in standby mode (only 150 mA) makes the system economical and does not excessively load buffer power supplies. A solid bolt with high mechanical strength provides an effective barrier for unauthorized persons while ensuring the comfort of daily passage. It is an ideal choice for installers looking for a compromise between high build quality and an affordable price.
Reversible Electromagnetic Bolt Door Lock 12V DC Time Delay Access Control
Model: ATLO ATLO-EB-1
EAN: 6931240059425 SKU: 931059424
- Reversible operation mode (Fail-Safe - open without power)
- Built-in lock to prevent closing when the door is in the wrong position
- Adjustable closing delay time: 0s, 3s, 6s
- Universal mounting: fits left and right doors
- Unlimited continuous operation capability
- Solid metal construction resistant to wear
- Low power consumption in standby mode (150mA)
- Compatibility with access control systems and intercoms
Description
The ATLO-EB-1 electromagnetic bolt is a professional device dedicated to access control systems, combining reliability, safety, and modern technical design. It is a reversible model, which in practice means it operates in "fail-safe" mode – in the event of a power failure, the bolt automatically opens. This characteristic is essential in places where the safety of people and the possibility of rapid evacuation are priorities, such as public buildings, office buildings, or schools.
One of the most important advantages of this model is the intelligent lock that prevents the door from closing when it is in the wrong position. This mechanism prevents the bolt from extending until the door leaf is aligned with the hole in the strike plate. This eliminates the risk of damaging the bolt or the door frame, which significantly extends the lifespan of the entire system and reduces maintenance costs.
The device offers the user great flexibility thanks to the built-in time delay switch. The ability to set the delay to 0, 3, or 6 seconds allows for perfect synchronization of the lock with the door closer, preventing the mechanism from jamming when the door returns to the frame too quickly. The solid construction of the ATLO-EB-1 bolt is based on high-quality materials, allowing for unlimited continuous operation without the risk of overheating.
The device is fully universal, meaning it can be mounted in both left and right doors, and its compact dimensions facilitate installation in various types of profiles and frames. By choosing this product, you gain the certainty of a stable security system. Low power consumption in standby mode (only 150 mA) makes the system economical and does not excessively load buffer power supplies. A solid bolt with high mechanical strength provides an effective barrier for unauthorized persons while ensuring the comfort of daily passage. It is an ideal choice for installers looking for a compromise between high build quality and an affordable price.
Specification
Device type
Electromagnetic bolt lock designed for access control and security systems.
Operating mode
Reversible (Fail-Safe). This means that when power is cut off, the bolt retracts, leaving the door open, which is crucial for evacuation systems.
Rated voltage
10V ... 15V DC (direct current). The device exhibits stable operation within the specified voltage range, allowing it to work with most CCTV/Alarm power supplies.
Current consumption - start
1200 mA. This is the peak current drawn during the short moment the electromagnet activates to extend the locking bolt.
Current consumption - standby
150 mA. Very low power consumption in standby mode, which minimizes device heating and saves system energy.
Application
Universal design, adapted for mounting in right and left doors without the need for mechanical modification.
Latch lock
No mechanical latch lock. The device relies on the operation of an extendable electromagnetic bolt.
Memory function
No memory function. The bolt reacts directly to the application or removal of control voltage.
Clearance adjustment
No built-in clearance adjustment. The precision of operation depends on the correct installation of the strike plate relative to the bolt.
Permissible operating time
Unlimited. The device is adapted for continuous operation (100% ED), which allows for constant power supply to the bolt to lock the door.
Activation delay
Adjustable via built-in microswitches. Available settings are 0 seconds, 3 seconds, and 6 seconds delay.
Logical protections
A built-in door position sensor prevents the bolt from extending when the door is not closed, protecting the bolt from hitting the frame.
Environmental conditions
Device intended for indoor use in a dry environment. The solid housing protects the mechanism from dust.
Warranty
24 months (2 years) provided by the authorized ATLO manufacturer service.
Contents
1x ATLO-EB-1 electromagnetic bolt
1x Strike plate (face plate)
1x Set of mounting screws and washers
1x User manual in Polish
Dimensions, Weight
Product dimensions: 34 x 200 x 42 mm (Depth x Width x Height)
Package dimensions: 60 x 265 x 60 mm (Depth x Width x Height)
Product weight: 550 g
Weight with packaging: 467 g
