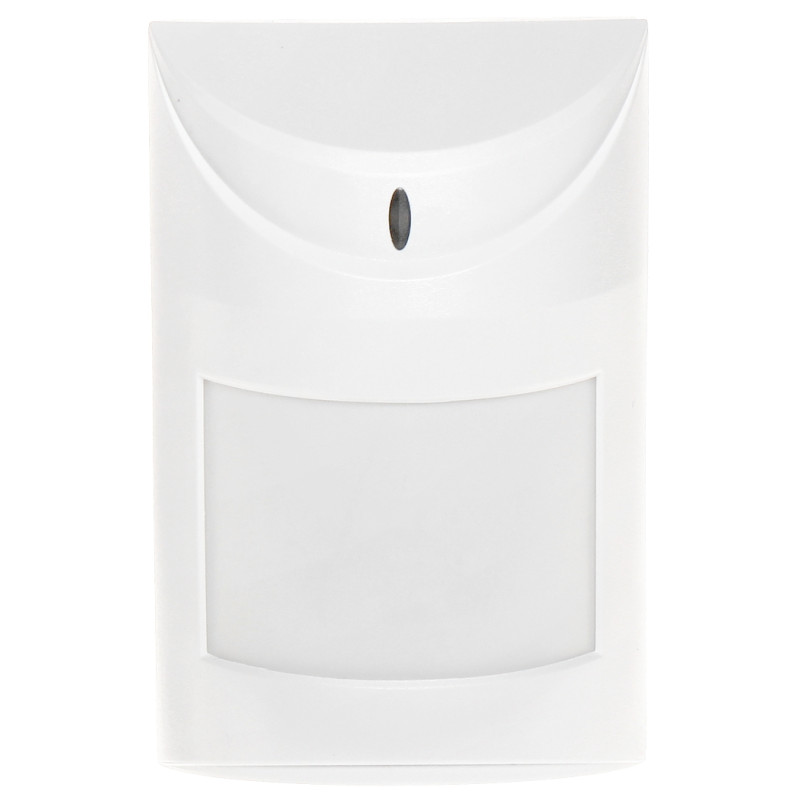

AQUA-S Digital Passive Infrared PIR Detector 24V AC/DC Indoor Alarm System SATEL AQUA-S
zł145.78
Tax included
AQUA-S is a professional digital passive infrared (PIR) detector designed by the renowned company SATEL. This device is a key component of alarm systems, offering reliable motion detection indoors. Thanks to the use of an advanced dual pyroelement and a digital detection algorithm, the detector is characterized by high resistance to false alarms and stable operation in diverse environmental conditions.
The main advantage of the AQUA-S model is its power supply versatility – the device can be powered by both direct current (DC) and alternating current (AC) at 24V, making it an ideal solution for specific installations where standard 12V DC is not available. The detector offers a wide detection range of 15 by 14 meters, which allows for effective protection of even large rooms using a single device.
Another advantage is the 4-level sensitivity adjustment, which allows for precise matching of the detector's operating parameters to the specifics of the protected object. The pre-alarm function further increases the effectiveness of intruder detection, minimizing the risk of missing a burglary attempt. The device design also provides for the possibility of replacing the Fresnel lens, which allows for changing the detection characteristics (e.g., to curtain or long-range).
The safety of the detector itself is ensured by a built-in tamper switch that reacts to any attempt to open the housing. The device is characterized by low power consumption and a wide operating temperature range from -30°C to +55°C, which guarantees reliability all year round. The aesthetic, white housing with compact dimensions makes the detector discreetly blend into the decor of any interior, from offices to private homes.
AQUA-S Digital Passive Infrared PIR Detector 24V AC/DC Indoor Alarm System
Model: SATEL AQUA-S
EAN: 6931240054574 SKU: 931054576
- New generation digital detection algorithm
- Dual pyroelement for high sensitivity
- Universal 24V AC or 24V DC power supply
- Wide detection range 15 x 14 meters
- 4-level device sensitivity adjustment
- Built-in pre-alarm function
- Replaceable Fresnel lenses
- Full tamper protection
- High resistance to external interference
- Wide operating temperature range from -30°C to 55°C
Description
AQUA-S is a professional digital passive infrared (PIR) detector designed by the renowned company SATEL. This device is a key component of alarm systems, offering reliable motion detection indoors. Thanks to the use of an advanced dual pyroelement and a digital detection algorithm, the detector is characterized by high resistance to false alarms and stable operation in diverse environmental conditions.
The main advantage of the AQUA-S model is its power supply versatility – the device can be powered by both direct current (DC) and alternating current (AC) at 24V, making it an ideal solution for specific installations where standard 12V DC is not available. The detector offers a wide detection range of 15 by 14 meters, which allows for effective protection of even large rooms using a single device.
Another advantage is the 4-level sensitivity adjustment, which allows for precise matching of the detector's operating parameters to the specifics of the protected object. The pre-alarm function further increases the effectiveness of intruder detection, minimizing the risk of missing a burglary attempt. The device design also provides for the possibility of replacing the Fresnel lens, which allows for changing the detection characteristics (e.g., to curtain or long-range).
The safety of the detector itself is ensured by a built-in tamper switch that reacts to any attempt to open the housing. The device is characterized by low power consumption and a wide operating temperature range from -30°C to +55°C, which guarantees reliability all year round. The aesthetic, white housing with compact dimensions makes the detector discreetly blend into the decor of any interior, from offices to private homes.
Specification
Application
Indoor
Pyroelement
Dual
Sensor type
Passive infrared (PIR)
Detection range
15 x 14 m
Sensitivity adjustment
4-level (set by jumpers)
Pre-alarm function
Yes, increased detection effectiveness
Alarm signaling time
2 s
Maximum output load
40 mA / 27 V AC/DC
Digital temperature compensation
No
Pet immunity
No
AC power supply
24 V AC / 27 mA
DC power supply
24 V DC / 14 mA
Operating temperature
-30 °C ... 55 °C
Detectable motion speed
0.3 ... 3 m/s
Software and algorithms
The device uses an advanced digital signal analysis algorithm integrated into the detector's processor. This algorithm is responsible for precise filtering of signals coming from the dual pyroelement, which allows for effective differentiation of human movement from background noise and thermal interference. The pre-alarm system monitors the dynamics of changes in the field of view, preparing the detector for rapid alarm triggering upon intruder confirmation. The entire control logic is optimized to minimize energy consumption while maintaining maximum operational stability in difficult environmental conditions.
Selected features
Resistance to interference, Replaceable Fresnel lenses, Tamper protection, 24V AC/DC power supply
Contents
1x PIR AQUA-S detector
1x User manual
1x Mounting screw set
Dimensions, Weight
Product dimensions: 49 x 63 x 96 mm (D x W x H)
Packaging dimensions: 55 x 135 x 65 mm (D x W x H)
Product weight: 69 g
Weight with packaging: 122 g
