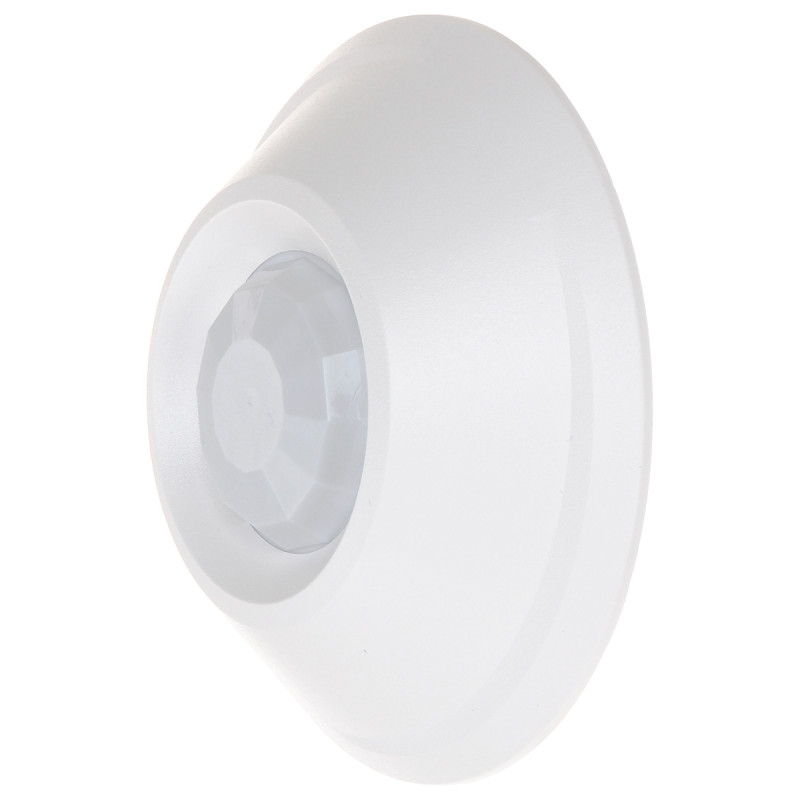

Ceiling PIR detector, digital passive infrared sensor, ceiling mount, 80m2 range, 24V AC/DC, alarm SATEL AQUA-RING-S
zł170.40
Tax included
Satel AQUA-RING-S is a professional ceiling-mounted motion detector using passive infrared (PIR) technology. The device is designed to ensure maximum security indoors, where traditional wall-mounted detectors may have limited range or be obstructed by furniture. Thanks to ceiling mounting, the detector offers full coverage of the area below, making it an ideal solution for shops, offices, warehouses, and private homes.
A key advantage of the AQUA-RING-S model is the use of a digital motion detection algorithm and a dual pyroelectric sensor. This combination guarantees high resistance to false alarms that can be triggered by air currents or temperature changes not caused by an intruder. The device features digital temperature compensation, allowing for effective operation in a wide ambient temperature range from -30°C to +55°C. The detector automatically adjusts its sensitivity to prevailing conditions, which is essential in rooms with variable thermal characteristics.
Another advantage is installation flexibility. Depending on the mounting height, the detector can protect an area from 36 m² (at a height of 2.4 m) up to 80 m² (at a height of 3.7 m). This allows for optimal adaptation of the device to the volume of the protected facility. Additionally, the detector is equipped with a pre-alarm function and basic self-diagnostics, which increases the reliability of the entire alarm system. A robust housing and tamper protection guard against unauthorized opening of the device. The 24V AC/DC power supply makes this model compatible with a wide range of alarm control panels and building automation systems. By choosing a Satel brand product, you receive a guarantee of the highest quality workmanship and many years of trouble-free operation.
Ceiling PIR detector, digital passive infrared sensor, ceiling mount, 80m2 range, 24V AC/DC, alarm
Model: SATEL AQUA-RING-S
EAN: 6931240061695 SKU: 931061694
- Digital motion detection algorithm
- Dual element pyroelectric sensor
- Ceiling mount for wide viewing angle
- Digital temperature compensation
- Pre-alarm function
- 24V AC/DC power supply
- High resistance to electromagnetic interference
- Tamper protection
- Wide operating temperature range
Description
Satel AQUA-RING-S is a professional ceiling-mounted motion detector using passive infrared (PIR) technology. The device is designed to ensure maximum security indoors, where traditional wall-mounted detectors may have limited range or be obstructed by furniture. Thanks to ceiling mounting, the detector offers full coverage of the area below, making it an ideal solution for shops, offices, warehouses, and private homes.
A key advantage of the AQUA-RING-S model is the use of a digital motion detection algorithm and a dual pyroelectric sensor. This combination guarantees high resistance to false alarms that can be triggered by air currents or temperature changes not caused by an intruder. The device features digital temperature compensation, allowing for effective operation in a wide ambient temperature range from -30°C to +55°C. The detector automatically adjusts its sensitivity to prevailing conditions, which is essential in rooms with variable thermal characteristics.
Another advantage is installation flexibility. Depending on the mounting height, the detector can protect an area from 36 m² (at a height of 2.4 m) up to 80 m² (at a height of 3.7 m). This allows for optimal adaptation of the device to the volume of the protected facility. Additionally, the detector is equipped with a pre-alarm function and basic self-diagnostics, which increases the reliability of the entire alarm system. A robust housing and tamper protection guard against unauthorized opening of the device. The 24V AC/DC power supply makes this model compatible with a wide range of alarm control panels and building automation systems. By choosing a Satel brand product, you receive a guarantee of the highest quality workmanship and many years of trouble-free operation.
Specification
Application
Indoor
Pyroelectric sensor
Dual element providing high sensitivity while maintaining resistance to interference
Sensor type
Passive infrared (PIR) - detects changes in thermal radiation within the field of view
Detection range
When mounted at a height of 2.4 m, the protected area is 36 m²; when mounted at a height of 3.7 m, the area increases to 80 m²
Sensitivity adjustment
Performed via configuration jumpers on the electronics board
Recommended mounting height
From 2.2 m to 4.5 m, allowing for use in high rooms
Self-diagnostics
Basic verification of the correct operation of key detector circuits
Pre-alarm function
Additional signal analysis allowing for faster system response upon motion detection
Pet immunity
None
Alarm signaling time
2 seconds (relay contact opening time)
Digital temperature compensation
Yes - this function involves automatically adjusting the detection threshold to the ambient temperature, ensuring constant intruder detection effectiveness regardless of the season
Selected features
High resistance to electromagnetic interference, full tamper protection against housing opening, stable operation due to digital signal processing
Power supply
Supports 24 V AC voltage (27 mA current consumption) and 24 V DC (14 mA current consumption)
Operating temperature
Extremely wide range from -30 °C to 55 °C
Detectable motion speed
From 0.3 m/s to 3 m/s
Software and logic
The device is based on an advanced digital signal processing algorithm implemented in the firmware. This algorithm analyzes voltage waveforms from the pyroelectric sensor in real-time, filtering out noise and signals characteristic of phenomena other than human movement (e.g., rapid changes in sunlight, air mass movements). As a result, the detector is characterized by exceptional precision and minimizes the risk of false alarms in difficult environmental conditions. The system also manages the pre-alarm function and performs basic self-diagnostics of electronic circuits, ensuring continuity of protection and informing about any irregularities in the sensor's operation.
Contents
1x PIR detector AQUA-RING-S
1x Set of mounting screws
1x User manual
Dimensions, Weight
Product dimensions: 97 x 97 x 29 mm (D x W x H)
Packaging dimensions: 100 x 100 x 35 mm (D x W x H)
Product weight: 53 g
Weight with packaging: 81 g
