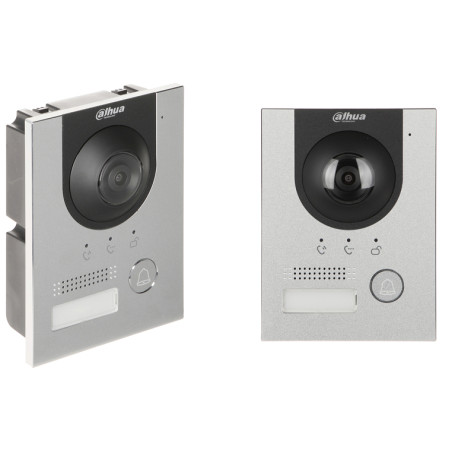

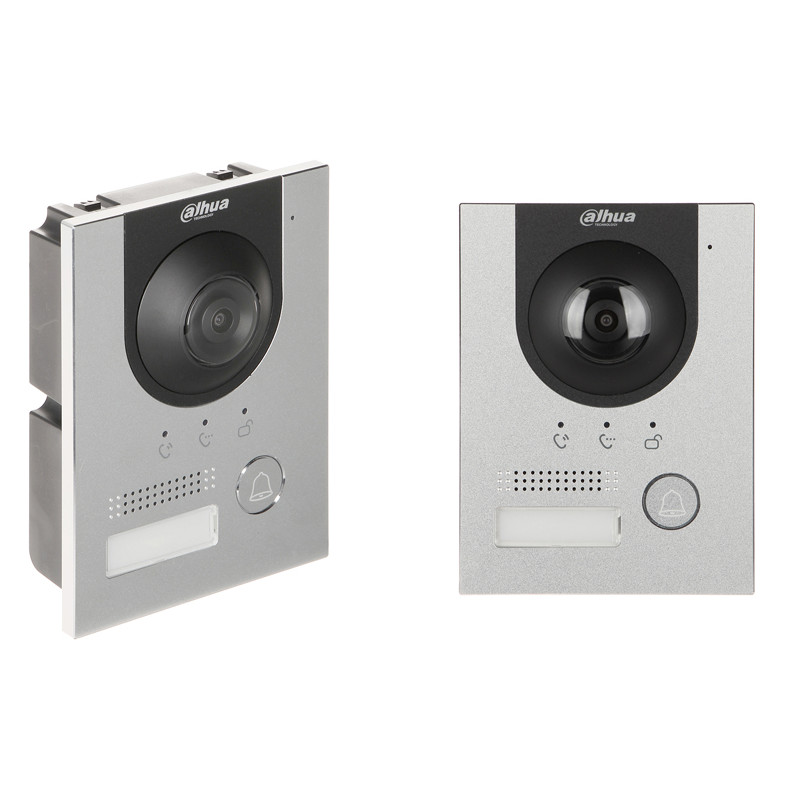

2-Wire IP Video Intercom 2 Mpx 168° WDR 120dB IP65 IK07 DAHUA VTO2202F-P-S3
zł1,596.54
Tax included
The VTO2202F-P-S3 video intercom is an advanced hybrid device that can operate both in modern 2-Wire installations and as a standard IP video intercom. The device is designed for high image quality and durability in harsh outdoor conditions. Equipped with a 2 Mpx CMOS sensor, it provides a clear image with a wide viewing angle of 168 degrees, allowing for coverage of a large area in front of the entrance. Thanks to the use of WDR 120 dB technology, the video intercom performs excellently in high-contrast lighting conditions, eliminating overexposure and underexposure.
The advantages of the device include a solid aluminum housing with an IP65 ingress protection rating and IK07 mechanical resistance, which guarantees protection against dust, rain, and acts of vandalism. The device has a built-in microphone and speaker, enabling two-way voice communication. An additional advantage is the support for Micro SD cards up to 256 GB, which allows for local event recording. Power is supplied via PoE or a 2-Wire interface, which significantly simplifies installation in existing systems. Thanks to the dedicated DMSS application for Android and iOS systems, the user has the ability to remotely view the image and operate the video intercom from anywhere in the world via the P2P cloud.
2-Wire IP Video Intercom 2 Mpx 168° WDR 120dB IP65 IK07
Model: DAHUA VTO2202F-P-S3
EAN: 6931240063231 SKU: 931063239
- Hybrid operation: 2-Wire or IP
- 2 Mpx CMOS sensor
- Wide 168° viewing angle
- WDR 120 dB for excellent image quality
- Aluminum housing IP65 / IK07
- Micro SD card support up to 256 GB
- Two-way audio communication
- Remote access via DMSS app (Android/iOS)
- Tamper detection (detachment from the surface)
Description
The VTO2202F-P-S3 video intercom is an advanced hybrid device that can operate both in modern 2-Wire installations and as a standard IP video intercom. The device is designed for high image quality and durability in harsh outdoor conditions. Equipped with a 2 Mpx CMOS sensor, it provides a clear image with a wide viewing angle of 168 degrees, allowing for coverage of a large area in front of the entrance. Thanks to the use of WDR 120 dB technology, the video intercom performs excellently in high-contrast lighting conditions, eliminating overexposure and underexposure.
The advantages of the device include a solid aluminum housing with an IP65 ingress protection rating and IK07 mechanical resistance, which guarantees protection against dust, rain, and acts of vandalism. The device has a built-in microphone and speaker, enabling two-way voice communication. An additional advantage is the support for Micro SD cards up to 256 GB, which allows for local event recording. Power is supplied via PoE or a 2-Wire interface, which significantly simplifies installation in existing systems. Thanks to the dedicated DMSS application for Android and iOS systems, the user has the ability to remotely view the image and operate the video intercom from anywhere in the world via the P2P cloud.
Specification
Sensor
2 Mpx CMOS
Viewing angle
168 °
Image compression method
H.265 - video compression standard, also known as HEVC (High Efficiency Video Coding), successor to the H.264/AVC image coding standard.
IR illuminator
Yes
Compatibility
DAHUA
Mobile phone access
Port: 37777 or cloud access (P2P). The DMSS application (Android/iOS) enables full operation of the video intercom, live view, two-way conversations, and remote door opening. The application provides a stable connection via the cloud, eliminating the need for complex network configuration.
Selected features
WDR - 120 dB (wide dynamic range), 3D-DNR (digital noise reduction), Micro SD card support up to 256GB, built-in microphone and speaker, tamper detection, 12V DC / 600mA power output.
Power supply
PoE (802.3af) or 2-Wire IP interface
Power consumption
≤ 5 W
Housing
Aluminum
Ingress protection rating
IP65 (requires silicone sealing)
Mechanical resistance class
IK07
Operating temperature
-30 °C ... 60 °C
Supported languages
Polish, English
Contents
1x VTO2202F-P-S3 Video Intercom
Dimensions, Weight
Product dimensions: 29 x 130 x 96 mm (D x W x H)
Package dimensions: 90 x 200 x 150 mm (D x W x H)
Product weight: 330 g
Weight with packaging: 470 g
