- New

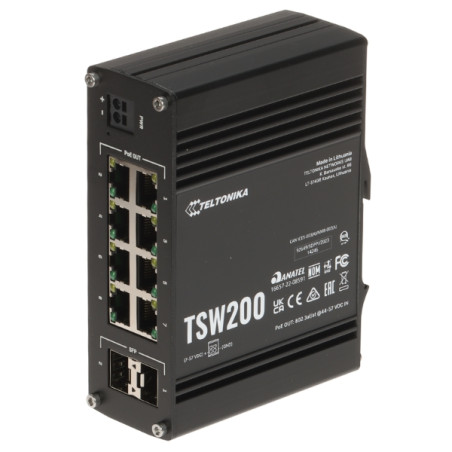

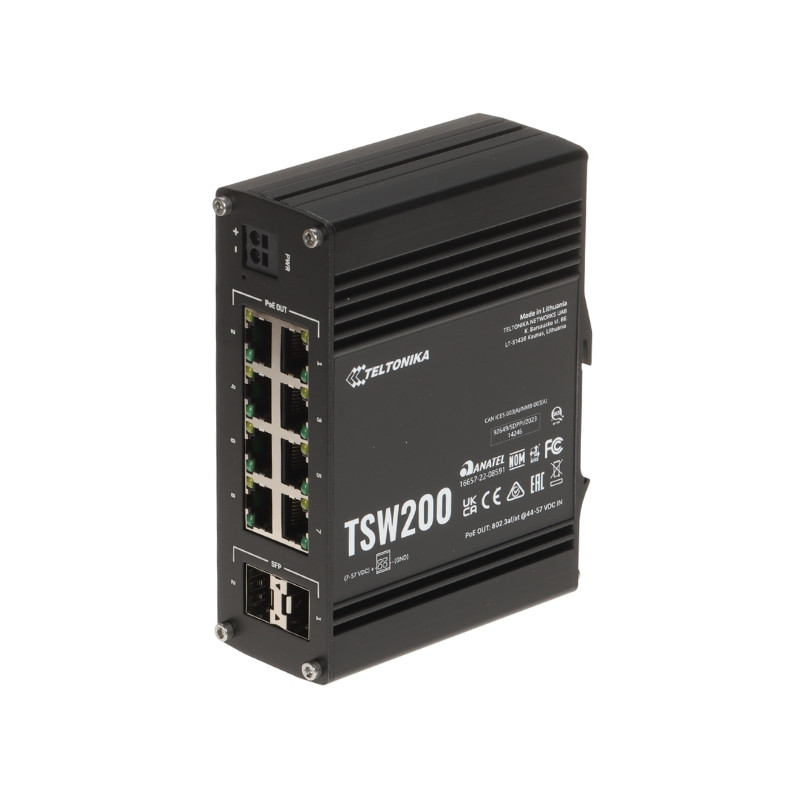

8-Port Industrial PoE Switch with 2 SFP Slots Teltonika TSW200
zł518.21
Tax included
The TSW200 PoE+ switch is a professional industrial solution designed for reliable data transmission in harsh environmental conditions. The device offers 8 LAN ports with support for the 802.3af/at PoE standard, enabling power supply for IP cameras, access points, and other network devices directly via Ethernet cable. Additionally, the switch features 2 SFP Uplink ports, allowing for easy network infrastructure expansion and long-distance data transmission using fiber optics. With a transmission speed of 10/100/1000 Mbps, the switch guarantees high performance for advanced IP monitoring systems. The rugged IP30-rated aluminum housing provides protection across a wide operating temperature range, from -40°C up to 75°C, making the device perfect for industrial installations, warehouses, or outdoor facilities. The switch supports advanced features such as MDI/MDI-X auto-detection and standard DIN rail mounting. The device is characterized by flexible power supply within a wide voltage range, which significantly simplifies power system design in challenging installations. Teltonika TSW200 is synonymous with stability and durability in demanding network environments.
8-Port Industrial PoE Switch with 2 SFP Slots
Model: Teltonika TSW200
EAN: 6931240028230 SKU: 931028232
- 8 PoE+ 10/100/1000 Mbps ports
- 2 SFP Uplink ports for fiber optic transmission
- PoE 802.3af/at support (max. 30W per port)
- Wide operating temperature range from -40°C to 75°C
- Rugged IP30 aluminum housing
- DIN rail mounting
- Wide input voltage range (7-57V DC)
Description
The TSW200 PoE+ switch is a professional industrial solution designed for reliable data transmission in harsh environmental conditions. The device offers 8 LAN ports with support for the 802.3af/at PoE standard, enabling power supply for IP cameras, access points, and other network devices directly via Ethernet cable. Additionally, the switch features 2 SFP Uplink ports, allowing for easy network infrastructure expansion and long-distance data transmission using fiber optics. With a transmission speed of 10/100/1000 Mbps, the switch guarantees high performance for advanced IP monitoring systems. The rugged IP30-rated aluminum housing provides protection across a wide operating temperature range, from -40°C up to 75°C, making the device perfect for industrial installations, warehouses, or outdoor facilities. The switch supports advanced features such as MDI/MDI-X auto-detection and standard DIN rail mounting. The device is characterized by flexible power supply within a wide voltage range, which significantly simplifies power system design in challenging installations. Teltonika TSW200 is synonymous with stability and durability in demanding network environments.
Specification
LAN Ports
8x RJ45 (PoE+ 802.3af/at), 2x SFP (Uplink)
Transmission Speed
10/100/1000 Mbps for LAN ports, 1000 Mbps for SFP ports
Maximum Output Power
30W per PoE port, 240W total
MAC Address Table
2k
LED Indicators
Power, Link/Act, SFP
Housing
Aluminum, IP30
Power Supply
7 - 57V DC, PoE IN 44 - 57V DC
Power Consumption
max 5.5W (without PoE), max 245.5W (with PoE)
Operating Temperature
-40°C ... 75°C
Certificates
CE, UKCA, FCC
Warranty
2 years
Management
Unmanaged device (Plug & Play), no software configuration required.
Selected Features
MDI/MDI-X auto-detection, shock resistance, grounding, DIN rail mounting.
Contents
TSW200 Switch
Dimensions, Weight
Product dimensions: 95 x 132 x 44 mm (D x W x H)
Package dimensions: 70 x 170 x 150 mm (D x W x H)
Product weight: 510 g
Weight with packaging: 608 g
