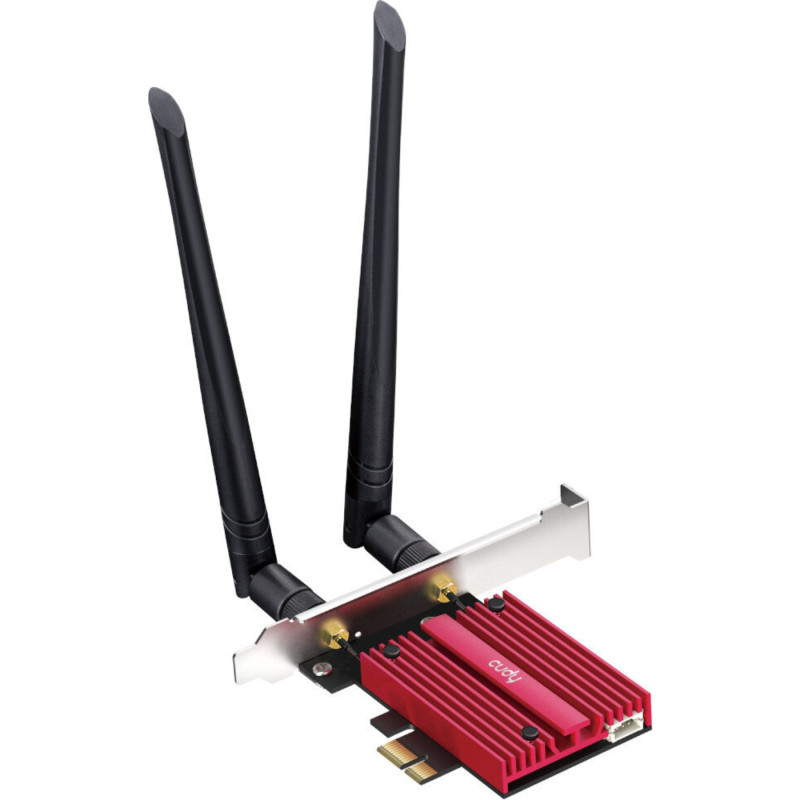

Wi-Fi 7 Bluetooth 5.4 Tri-band 6GHz 5GHz 2.4GHz PCI-E Network Card for Desktop PC CUDY WE9300
zł223.86
Tax included
The Cudy WE9300 is a groundbreaking next-generation Wi-Fi 7 network card designed for the most demanding desktop computer users. Equipped with an advanced Intel BE200 module, the card offers unprecedented performance across three bands: 2.4 GHz, 5 GHz, and 6 GHz, achieving a total data transfer speed of nearly 9.3 Gbps. Thanks to support for the 6 GHz band, the device effectively eliminates interference in crowded networks, which is crucial for professional gaming, 8K streaming, and supporting modern VR/AR headsets.
The advantage of the WE9300 model is the integrated Bluetooth 5.4 module, which ensures not only greater range and connection stability with peripherals such as headphones, mice, or controllers, but also introduces support for the latest low-energy audio transmission standards. A robust design with an external antenna module guarantees optimal signal reception even in difficult propagation conditions. The card has been fully optimized for Windows 11, allowing for full utilization of Multi-Link Operation (MLO) technology and channels with a width of up to 320 MHz. Choosing the Cudy WE9300 is an investment in the future of wireless connectivity, offering uncompromising speed, minimal latency, and the highest level of security thanks to WPA3 encryption. The device perfectly fits the needs of professional workstations and gaming computers where every millisecond of latency matters.
Wi-Fi 7 Bluetooth 5.4 Tri-band 6GHz 5GHz 2.4GHz PCI-E Network Card for Desktop PC
Model: CUDY WE9300
EAN: 6931240070420 SKU: 931070422
- Groundbreaking Wi-Fi 7 (802.11be) technology for extreme speeds
- Efficient support for three frequency bands: 2.4 GHz, 5 GHz, and 6 GHz
- Total throughput up to 9.3 Gbps (5760 Mbps in the 6 GHz band)
- Based on the reliable Intel BE200 chipset with full system support
- Built-in latest Bluetooth 5.4 standard for improved accessory stability
- External module with two high-gain antennas
- Support for modern WPA3 data encryption for maximum security
- Full compatibility with Windows 11 (64-bit) operating system
- Includes two types of brackets: standard and Low Profile
- Simple installation on PCI Express slot with additional USB port for Bluetooth
Description
The Cudy WE9300 is a groundbreaking next-generation Wi-Fi 7 network card designed for the most demanding desktop computer users. Equipped with an advanced Intel BE200 module, the card offers unprecedented performance across three bands: 2.4 GHz, 5 GHz, and 6 GHz, achieving a total data transfer speed of nearly 9.3 Gbps. Thanks to support for the 6 GHz band, the device effectively eliminates interference in crowded networks, which is crucial for professional gaming, 8K streaming, and supporting modern VR/AR headsets.
The advantage of the WE9300 model is the integrated Bluetooth 5.4 module, which ensures not only greater range and connection stability with peripherals such as headphones, mice, or controllers, but also introduces support for the latest low-energy audio transmission standards. A robust design with an external antenna module guarantees optimal signal reception even in difficult propagation conditions. The card has been fully optimized for Windows 11, allowing for full utilization of Multi-Link Operation (MLO) technology and channels with a width of up to 320 MHz. Choosing the Cudy WE9300 is an investment in the future of wireless connectivity, offering uncompromising speed, minimal latency, and the highest level of security thanks to WPA3 encryption. The device perfectly fits the needs of professional workstations and gaming computers where every millisecond of latency matters.
Specification
Frequency band
2.4 GHz, 5 GHz, 6 GHz (Tri-band)
Transmission speed
Total speed up to 9330 Mbps (688 Mbps @ 2.4 GHz + 2882 Mbps @ 5 GHz + 5760 Mbps @ 6 GHz)
Wireless standards
IEEE 802.11be (Wi-Fi 7), IEEE 802.11ax/ac/n/a/g/b, Bluetooth 5.4 / 5.3 / 5.2 / 4.2
Main chipset
Intel BE200NGW (Intel Wi-Fi 7 BE200 series)
Communication interface
PCI Express x1 / x4 / x8 / x16 + 9-pin USB connector (required for Bluetooth)
Antenna connectors
2 x SMA-RP (external antennas on cable)
Transmitter power
30 dBm (max) for Wi-Fi, optimized for home and office coverage
Network security
WPA-PSK, WPA2-PSK, WPA3-SAE, 64/128-bit WEP, 802.1x
System requirements
Windows 11 64-bit (recommended for Wi-Fi 7), Intel processor (recommended)
Technology support
Multi-Link Operation (MLO), 320MHz Bandwidth, 4K-QAM, MU-MIMO, OFDMA
Software and drivers
The device uses advanced Intel Connectivity Performance Suite software, which intelligently manages network traffic. This software enables automatic switching between bands to ensure the lowest latency. Drivers dedicated to Windows 11 support the MLO (Multi-Link Operation) function, allowing for simultaneous data transmission in the 5 and 6 GHz bands, which drastically increases connection stability in online games. Bluetooth 5.4, supported by a dedicated software stack, enables the use of LE Audio and Auracast features, allowing for audio streaming to multiple receivers simultaneously with minimal CPU load.
Certificates and compliance
CE, FCC, RoHS - product meets strict radio emission standards in the EU and USA
Operating temperature
0 °C ... 40 °C (humidity 10% - 90% non-condensing)
Installation
Standard PC case or Slim case (low-profile bracket included)
Contents
1x Cudy WE9300 PCI-E card
1x External antenna base with cables
2x High-gain antenna
1x 9-pin USB cable for motherboard
1x Standard bracket (installed)
1x Low-profile bracket
1x Installation guide
Dimensions, Weight
Product dimensions: 20 x 46 x 70 mm (D x W x H)
Packaging dimensions: 40 x 235 x 140 mm (D x W x H)
Product weight: 125 g
Weight with packaging: 265 g
