- New

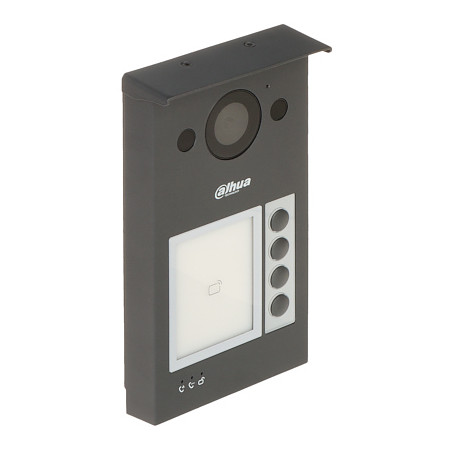

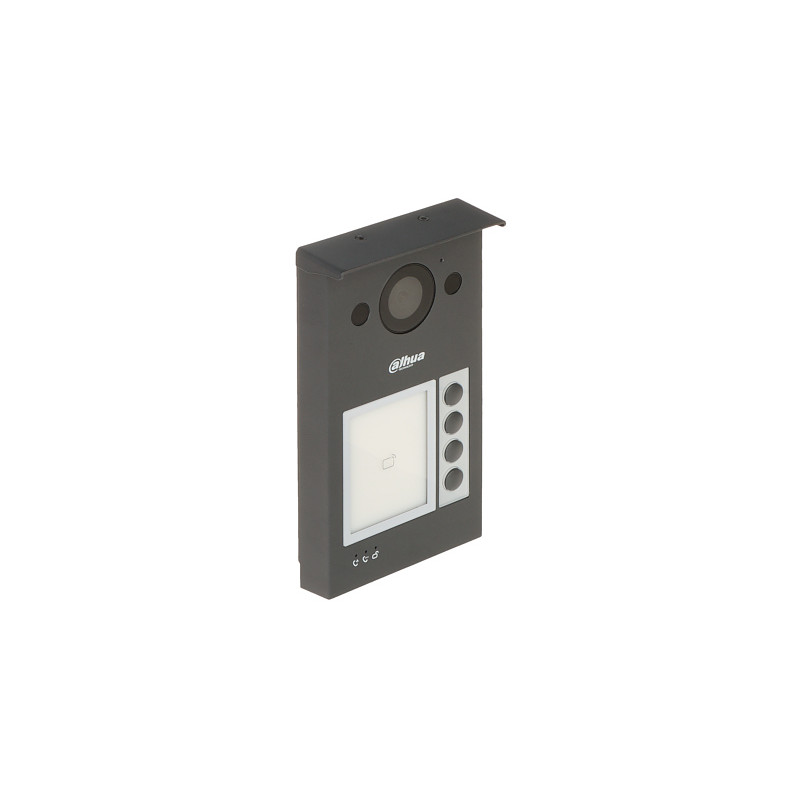

4-Subscriber IP Wi-Fi Video Intercom Outdoor Station RFID Reader 2MP WDR IR PoE DAHUA VTO3311Q-WP
zł1,674.30
Tax included
The wireless video intercom is a modern and functional solution that significantly increases the level of security and comfort in any facility. This model is designed to support up to four independent subscribers, making it an ideal choice for multi-family homes, small office buildings, or townhouses. Thanks to the integrated Wi-Fi module and support for IP technology, the device allows full control over property access from almost anywhere in the world using a smartphone or tablet.
One of the most important advantages of this panel is the high-class 1/2.8" CMOS sensor with 2-megapixel resolution, which guarantees an exceptionally clear and detailed image in Full HD quality. The wide 125-degree viewing angle allows for monitoring a large area in front of the entrance, minimizing blind spots. Additionally, the advanced 120dB WDR function ensures excellent visibility even in conditions of strong lighting contrast, for example, when a guest's face is in the shade while the background is brightly lit.
The device is characterized by extraordinary durability. The housing made of aluminum alloy has an IK08 mechanical resistance class and an IP65 ingress protection rating, making the panel resistant to vandalism attempts and adverse weather conditions, including heavy rain and extreme temperatures from -40 to +60 degrees Celsius. The set includes a practical rain cover that additionally protects the lens from water ingress.
Voice communication is of the highest quality thanks to the built-in microphone and speakers with a noise suppression and echo cancellation system, ensuring clear conversations even in noisy environments. The built-in RFID proximity reader operating at the 13.56 MHz standard allows residents to quickly and conveniently open the electric strike using cards or key fobs. The entire system is easy to configure and operate, while offering advanced features such as recording video messages for tenants in their absence.
4-Subscriber IP Wi-Fi Video Intercom Outdoor Station RFID Reader 2MP WDR IR PoE
Model: DAHUA VTO3311Q-WP
EAN: 6931240025864 SKU: 931025865
- Support for up to 4 independent subscribers / call buttons
- 2.0 Mpx (Full HD) resolution for high image quality
- Wide 125-degree lens viewing angle
- Built-in Wi-Fi module (802.11b/g/n) for wireless connectivity
- 13.56 MHz S50 standard RFID proximity reader
- Support for PoE (802.3af) and 12V DC power supply
- 120dB WDR function to eliminate background overexposure issues
- Vandal-proof aluminum alloy housing (IK08, IP65)
- Two-way audio communication with echo and noise cancellation
- Micro SD card support up to 256GB for local storage
- Push notifications and remote unlocking via mobile app
- Built-in infrared (IR) illuminator for night vision
- Tamper detection system for wall detachment
Description
The wireless video intercom is a modern and functional solution that significantly increases the level of security and comfort in any facility. This model is designed to support up to four independent subscribers, making it an ideal choice for multi-family homes, small office buildings, or townhouses. Thanks to the integrated Wi-Fi module and support for IP technology, the device allows full control over property access from almost anywhere in the world using a smartphone or tablet.
One of the most important advantages of this panel is the high-class 1/2.8" CMOS sensor with 2-megapixel resolution, which guarantees an exceptionally clear and detailed image in Full HD quality. The wide 125-degree viewing angle allows for monitoring a large area in front of the entrance, minimizing blind spots. Additionally, the advanced 120dB WDR function ensures excellent visibility even in conditions of strong lighting contrast, for example, when a guest's face is in the shade while the background is brightly lit.
The device is characterized by extraordinary durability. The housing made of aluminum alloy has an IK08 mechanical resistance class and an IP65 ingress protection rating, making the panel resistant to vandalism attempts and adverse weather conditions, including heavy rain and extreme temperatures from -40 to +60 degrees Celsius. The set includes a practical rain cover that additionally protects the lens from water ingress.
Voice communication is of the highest quality thanks to the built-in microphone and speakers with a noise suppression and echo cancellation system, ensuring clear conversations even in noisy environments. The built-in RFID proximity reader operating at the 13.56 MHz standard allows residents to quickly and conveniently open the electric strike using cards or key fobs. The entire system is easy to configure and operate, while offering advanced features such as recording video messages for tenants in their absence.
Specification
Operating standard
Wi-Fi / IP
Image sensor
1/2.8 " CMOS, 2 Mpx
Viewing angle
125 °
Number of supported subscribers
4
Video compression method
H.265 / H.264
Operating resolution
Main stream: 1280x720, 800x480, 720x576; Sub stream: 1920x1080, 800x480, 720x576, 320x240
Proximity reader
RFID 13.56 MHz S50 access control cards
Audio
Built-in microphone and speakers, two-way communication, noise suppression and echo cancellation
Network interface
Ethernet 10/100 Mbps (RJ-45), Wi-Fi IEEE 802.11b/g/n
Memory card slot
Support for Micro SD cards up to 256GB (local storage)
Mobile software
The free DMSS application (available for Android and iOS) is the heart of the remote management system. It allows for receiving video calls in real-time from anywhere in the world. The user can conduct voice conversations, open a connected electric strike or gate, and view live previews. The application sends push notifications immediately after the doorbell button is pressed or if device tampering is detected. The DMSS system also allows for managing the RFID card database, configuring schedules, and accessing archived recordings saved on the memory card. P2P cloud technology makes the process of pairing the device with a phone extremely simple and does not require port forwarding on the router.
Selected image features
WDR - 120 dB (Wide Dynamic Range), 2D-DNR, 3D-DNR (Digital Noise Reduction), ICR (Mechanical Infrared Filter), Day/Night mode
Power supply and consumption
PoE (802.3af), 12V DC / 1A; Power consumption: ≤ 6 W (operating), ≤ 3 W (standby)
Construction and environment
Aluminum alloy housing, IP65 ingress protection rating, IK08 mechanical resistance class, Operating temperature: -40 °C ... 60 °C
Contents
1x Video intercom outdoor station
1x Rain cover
1x Set of mounting plugs and screws
1x Quick start guide
Dimensions, Weight
Product dimensions: 30 x 107 x 188 mm (D x W x H)
Package dimensions: 247 x 167 x 83 mm (D x W x H)
Product weight: 600 g
Weight with packaging: 822 g
